Worm Thrust Bearing Preload: Hombre

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2000 Isuzu VehiCROSS, 2000 Isuzu Trooper, 2000 Isuzu Rodeo, 2000 Isuzu Hombre, and 2000 Isuzu Amigo. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove worm bearing adjuster lock nut. See Fig 1. Using a spanner wrench, turn adjuster plug clockwise until plug is seated in housing. Torque should be about 20 ft. lbs. (27 N.m).
  2. Index mark housing even with one hole in adjuster plug. See Fig 2. Measure back 1/2" counterclockwise from first index mark. Mark housing with second index mark. Rotate adjuster plug back counterclockwise until hole in adjuster plug aligns with second index mark on housing. Install and tighten adjuster plug lock nut. Ensure adjuster plug remains in position.
Fig 1: Exploded View Of Power Steering Gear (Hombre)
G93E76525Courtesy of GENERAL MOTORS CORP.

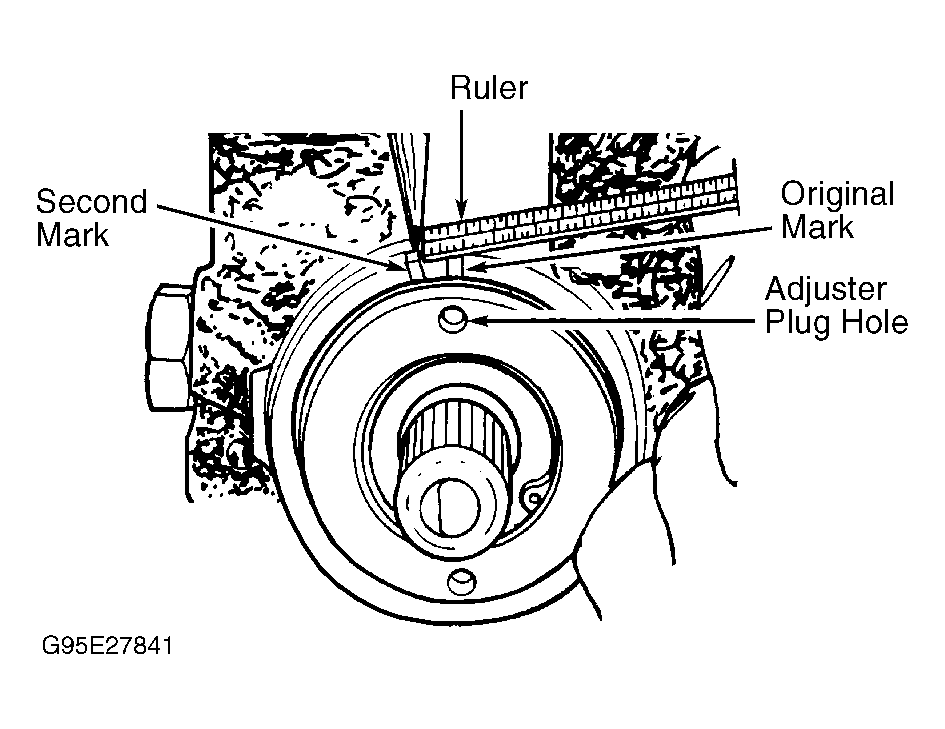

Fig 2: Measuring Worm Bearing Preload (Hombre)
G95E27841Courtesy of GENERAL MOTORS CORP.
