Removal (Hombre)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2001 Isuzu VehiCROSS, 2001 Isuzu Trooper, 2001 Isuzu Rodeo Sport, 2001 Isuzu Rodeo, and 2001 Honda Passport. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support vehicle. Note mounting locations for installation reference. Remove transmission shield. Install Unloading tool (J-36202) on torsion bars and count number of turns tool makes when removing adjusting bolt. See See Fig 1.

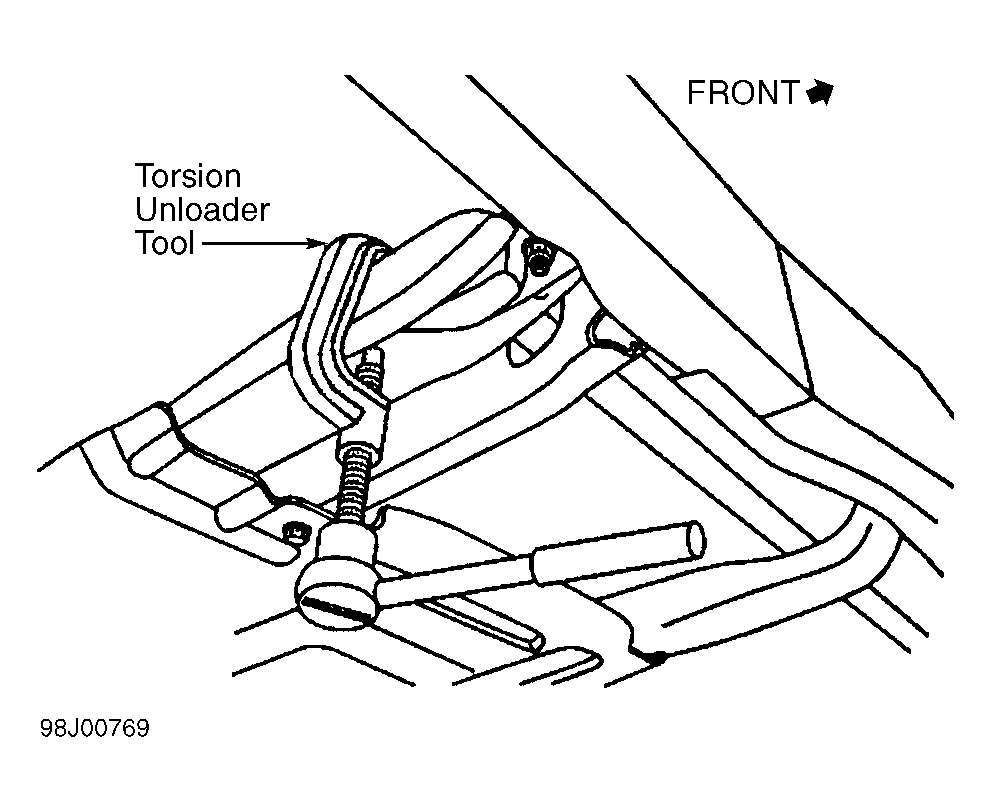

Fig 1: Installing Unloading Tool On Torsion Bar (Hombre)
Courtesy of ISUZU MOTOR CO.
Remove lower link mount nut from one side, remove torsion bar(s). Note exact direction of forward end and vehicle side of torsion bar when removed. Remove lower link mount nut from opposite side. Remove lower link mount. Remove upper link mount. remove torsion bar support.
