Steering Knuckle: Removal
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2001 Isuzu VehiCROSS, 2001 Isuzu Trooper, 2001 Isuzu Rodeo Sport, 2001 Isuzu Rodeo, and 2001 Honda Passport. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support vehicle. Remove wheels. Remove disc brake caliper and position aside. Remove hub and rotor assembly. See FRONT DISC BRAKE ROTOR under REMOVAL & INSTALLATION in appropriate DISC & DRUM article in BRAKES. Remove tie rod end from knuckle arm.

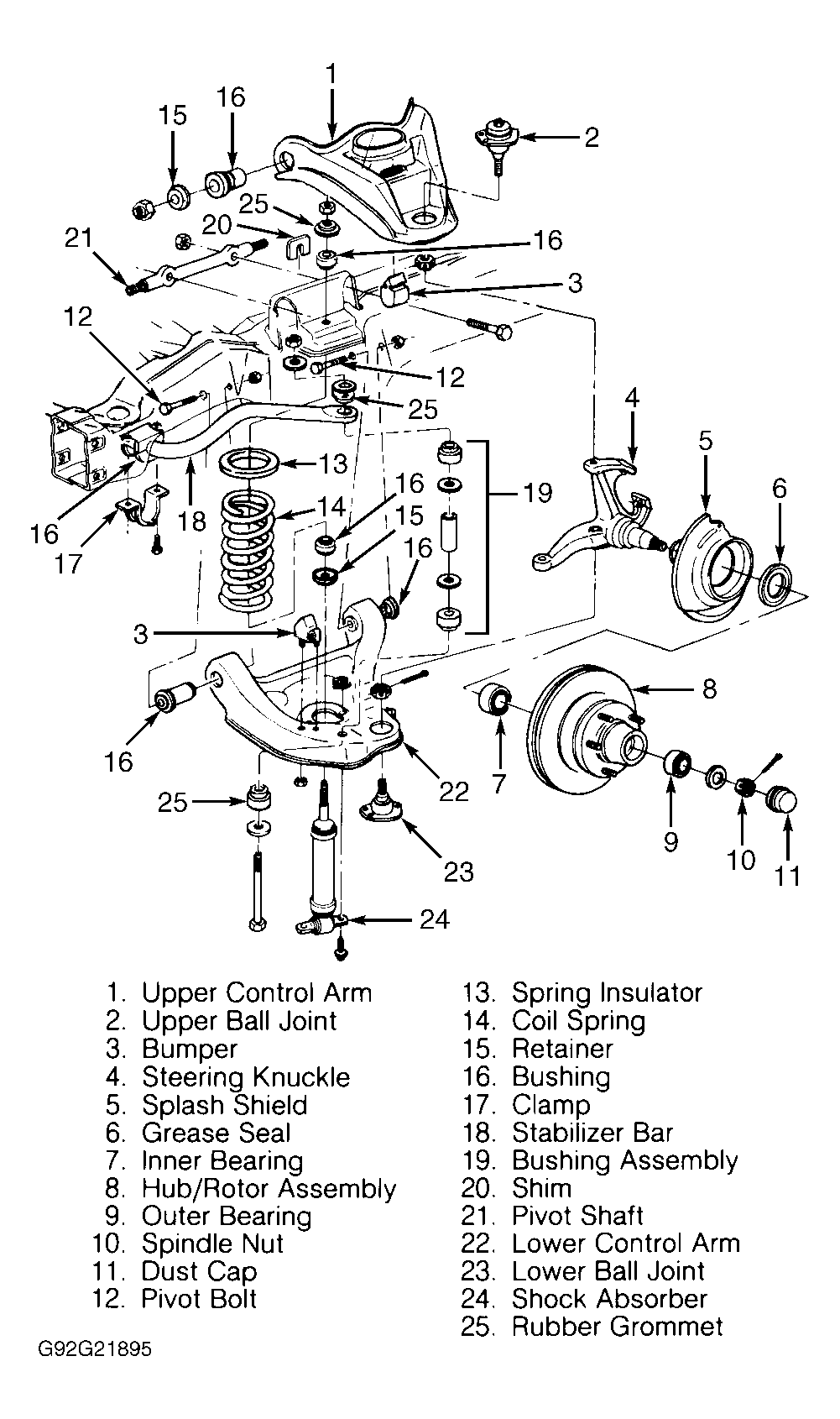

- Remove backing plate from steering knuckle. Support lower control arm. Remove cotter pin and nut from upper and lower ball joints. See Figure or Figure . Separate ball joints from steering knuckle. Remove steering knuckle.
