Floor Jack

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2001 Isuzu VehiCROSS, 2001 Isuzu Trooper, 2001 Isuzu Rodeo Sport, 2001 Isuzu Rodeo, and 2000 Isuzu VehiCROSS. However, it is still accessible from the selected car via links, so may be relevant.

Using floor jack or hoist, lift vehicle at points indicated by shaded areas on frame. See Fig 2 and Fig 1 .

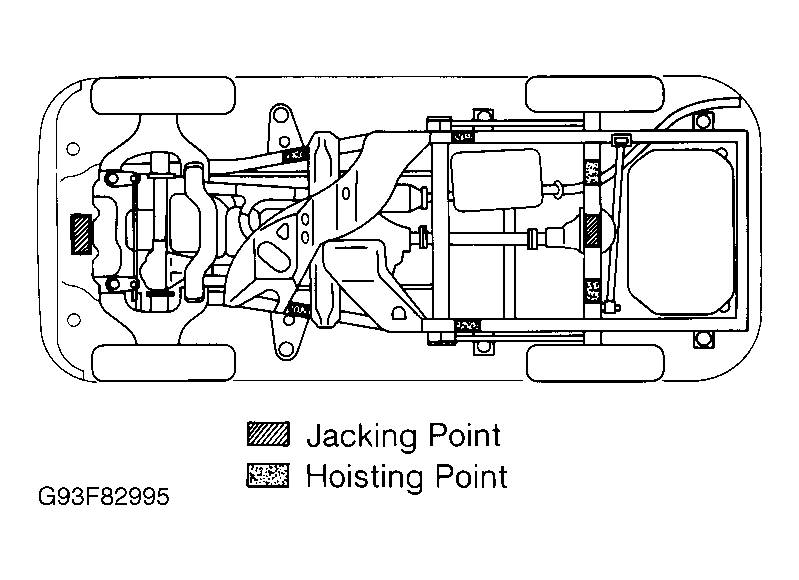

Fig 1: Identifying Jacking & Hoisting Points (Except Hombre)

Courtesy of ISUZU MOTOR CO.

Fig 2: Identifying Jacking & Hoisting Points (Hombre)

Courtesy of ISUZU MOTOR CO.
