Pcm Pin Identification & Voltage (Trooper 3.5L)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2000 Isuzu VehiCROSS, 2000 Isuzu Trooper, 2000 Isuzu Rodeo, 2000 Isuzu Hombre, and 2000 Isuzu Amigo. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For connector and terminal identification, see Fig 1-Fig 8 .

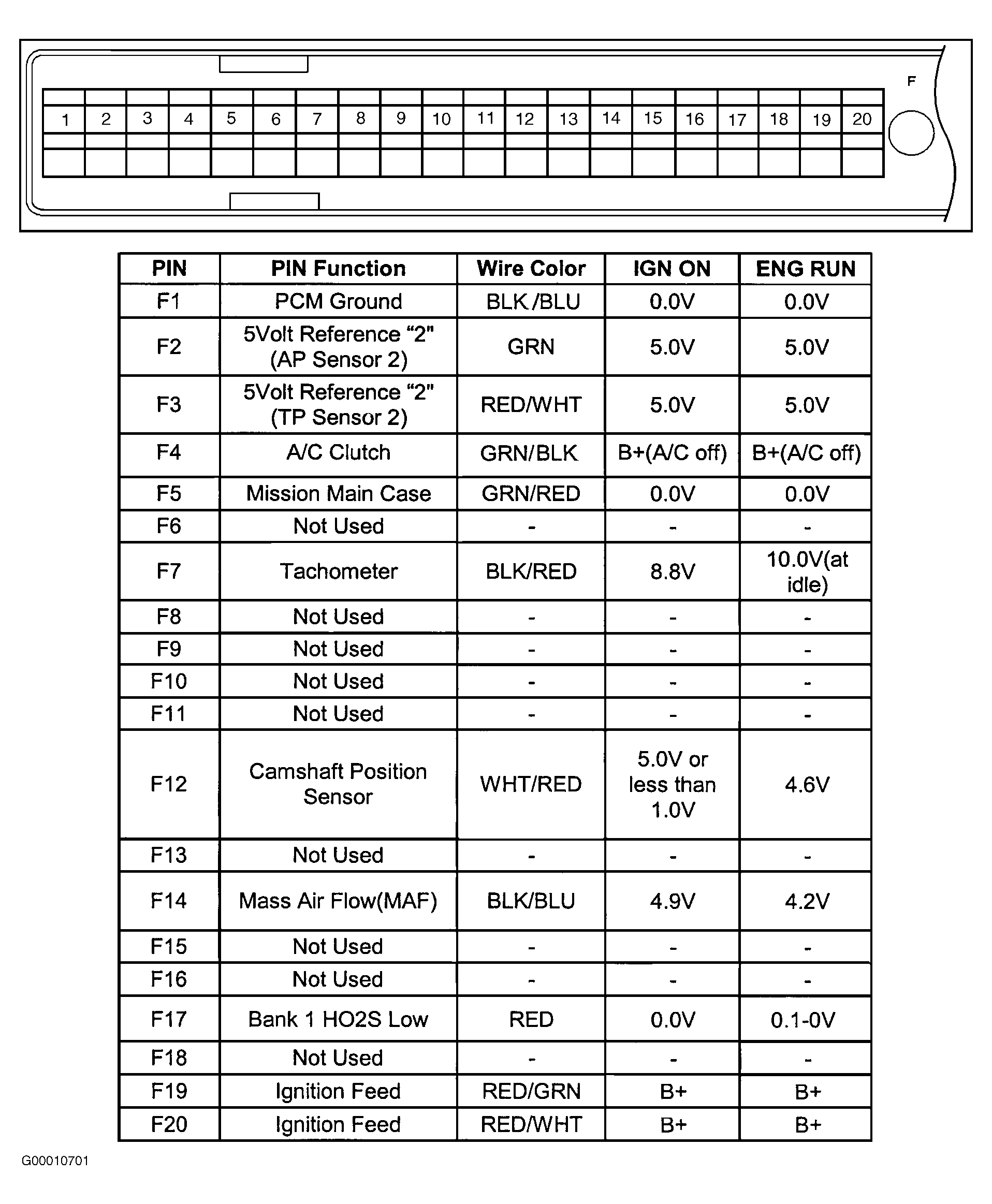

Fig 1: PCM Pin Identification & Voltage Table (Trooper 3.5L - 80-Pin Blue Connector Row "F1-20")

Courtesy of ISUZU MOTOR CO.

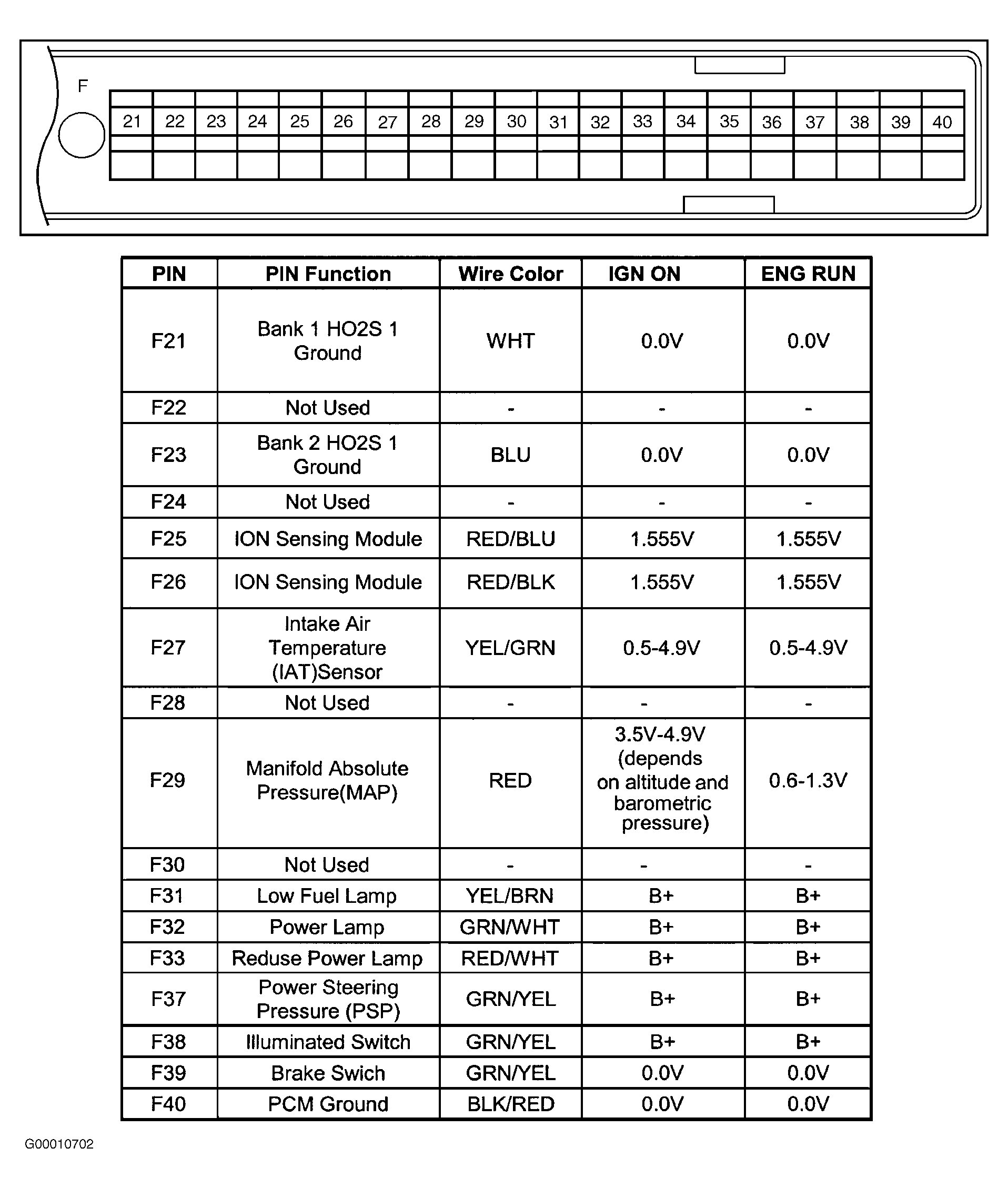

Fig 2: PCM Pin Identification & Voltage Table (Trooper 3.5L - 80-Pin Blue Connector Row "F21-40")

Courtesy of ISUZU MOTOR CO.

Fig 3: PCM Pin Identification & Voltage Table (Trooper 3.5L - 80-Pin Blue Connector Row "F41-60")

Courtesy of ISUZU MOTOR CO.

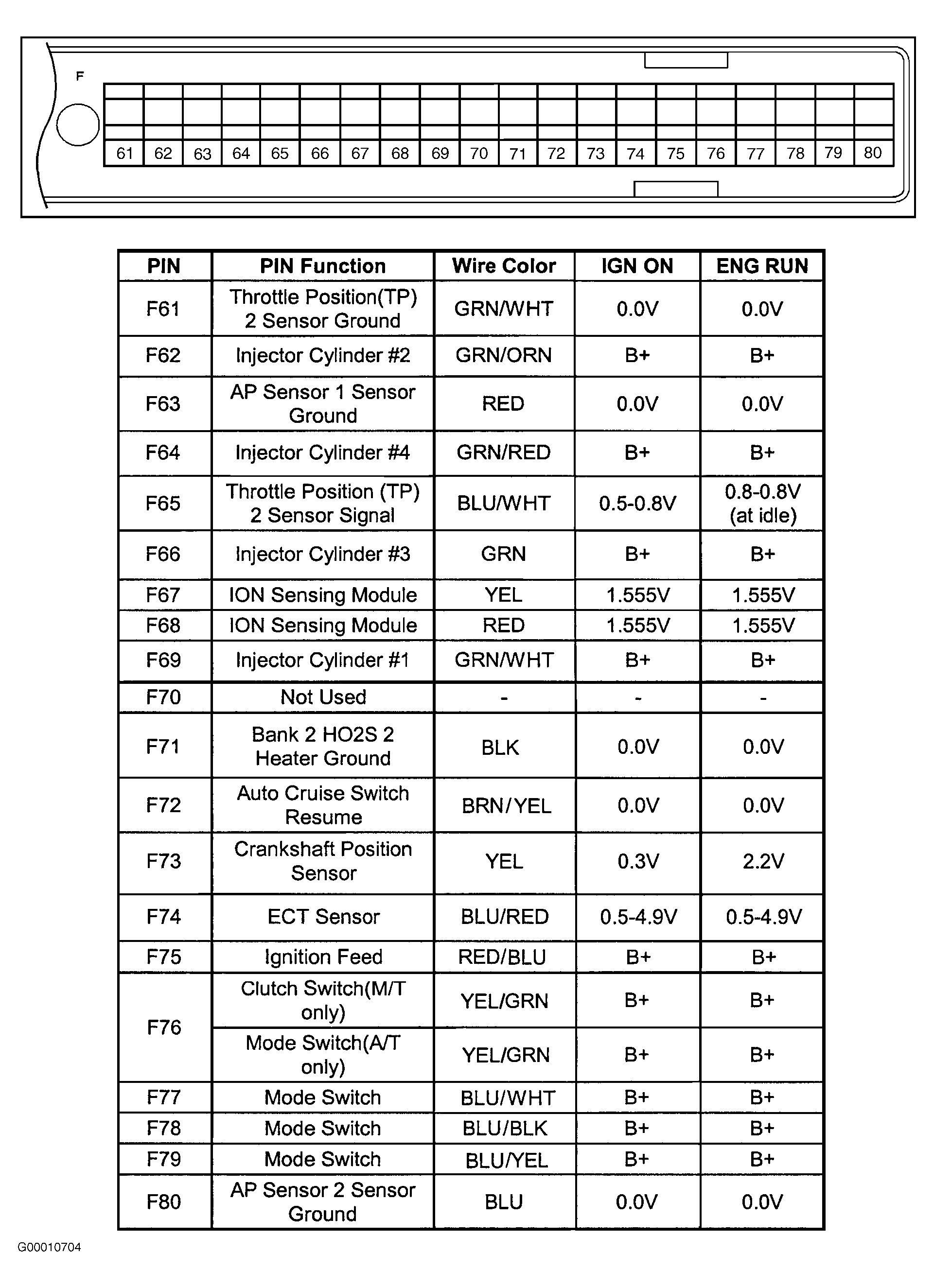

Fig 4: PCM Pin Identification & Voltage Table (Trooper 3.5L - 80-Pin Blue Connector Row "F61-80")

Courtesy of ISUZU MOTOR CO.

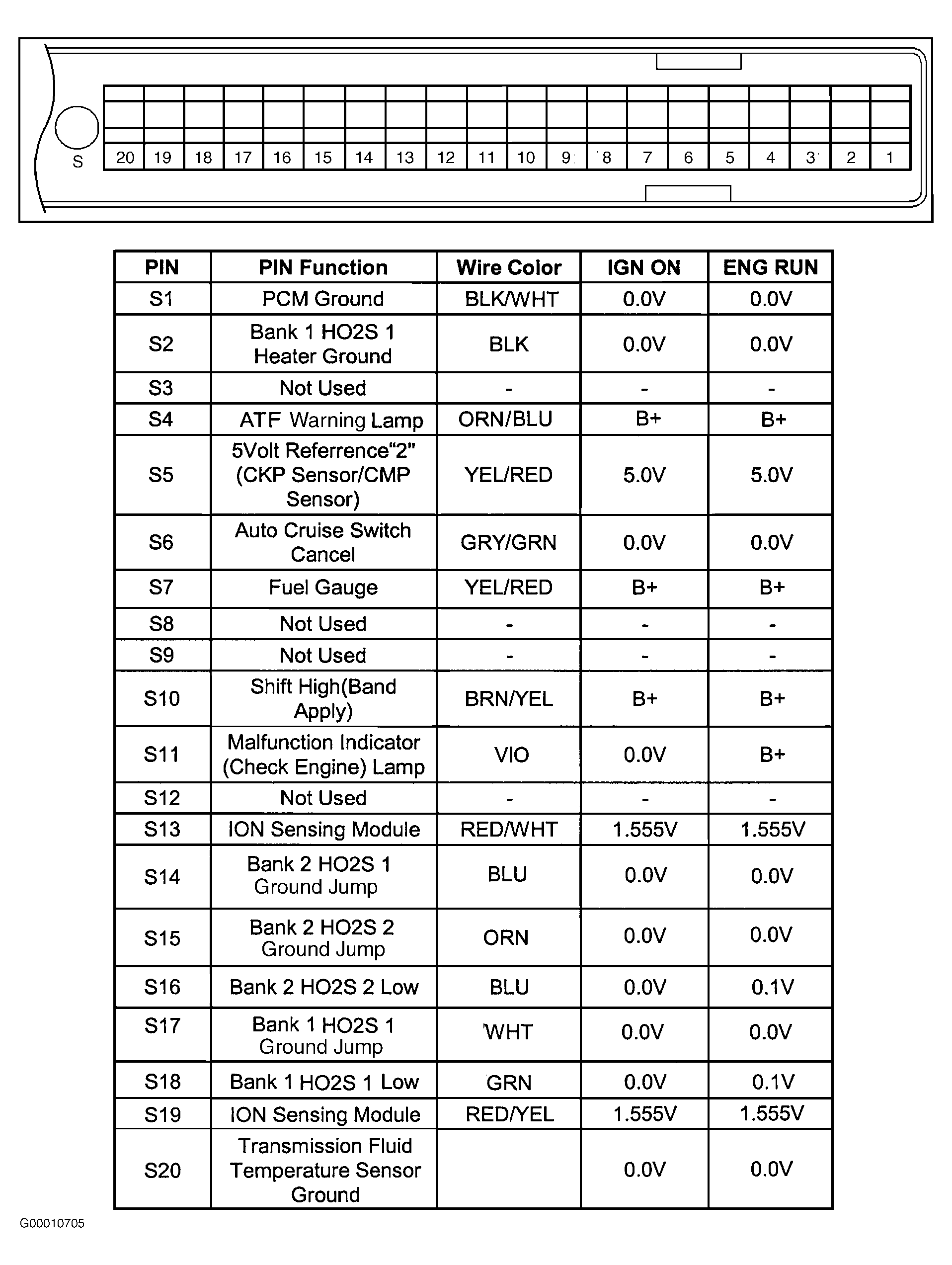

Fig 5: PCM Pin Identification & Voltage Table (Trooper 3.5L - 80-Pin Red Connector Row "S1-20")

Courtesy of ISUZU MOTOR CO.

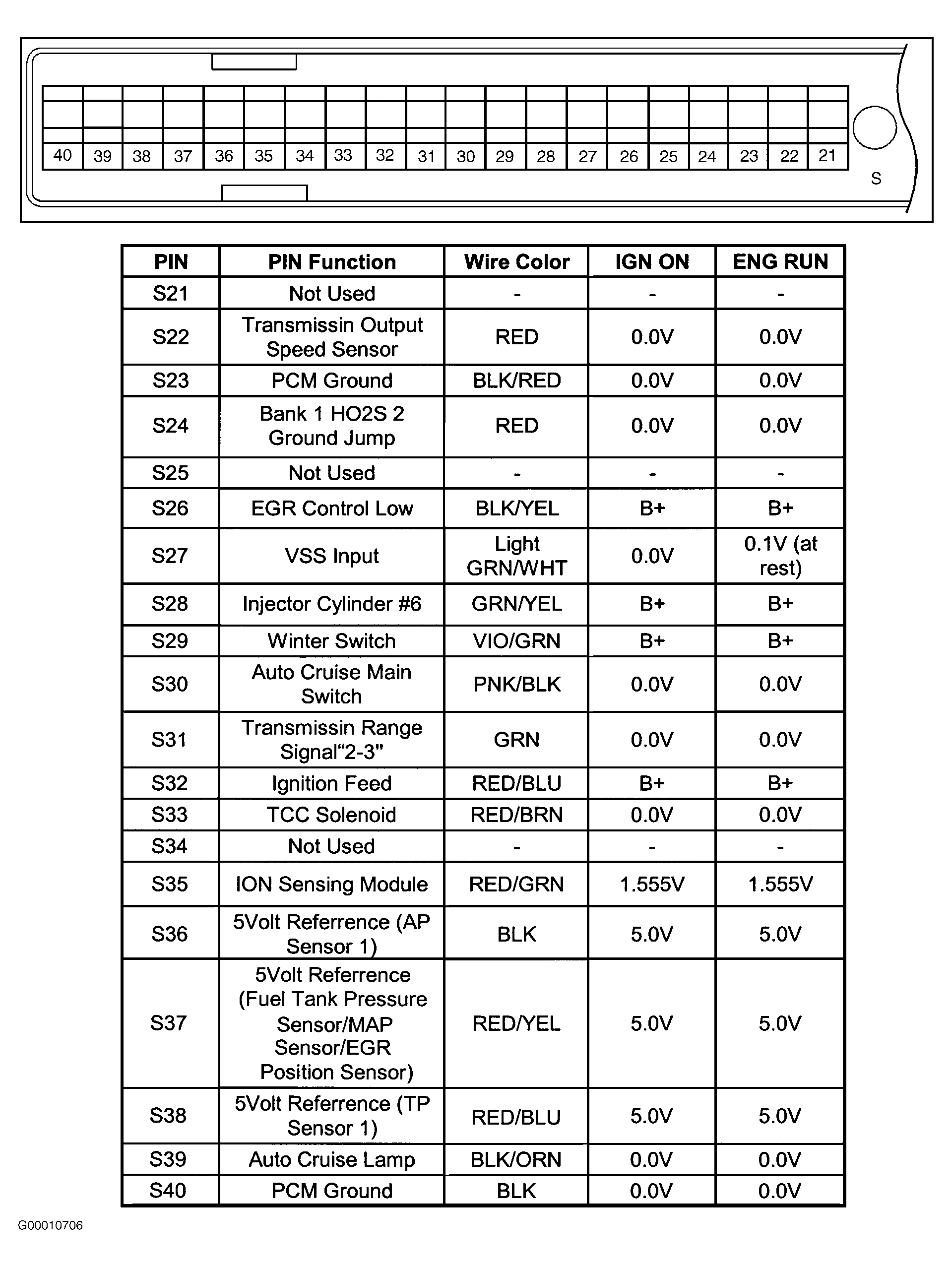

Fig 6: PCM Pin Identification & Voltage Table (Trooper 3.5L - 80-Pin Red Connector Row "S21-40")

Courtesy of ISUZU MOTOR CO.

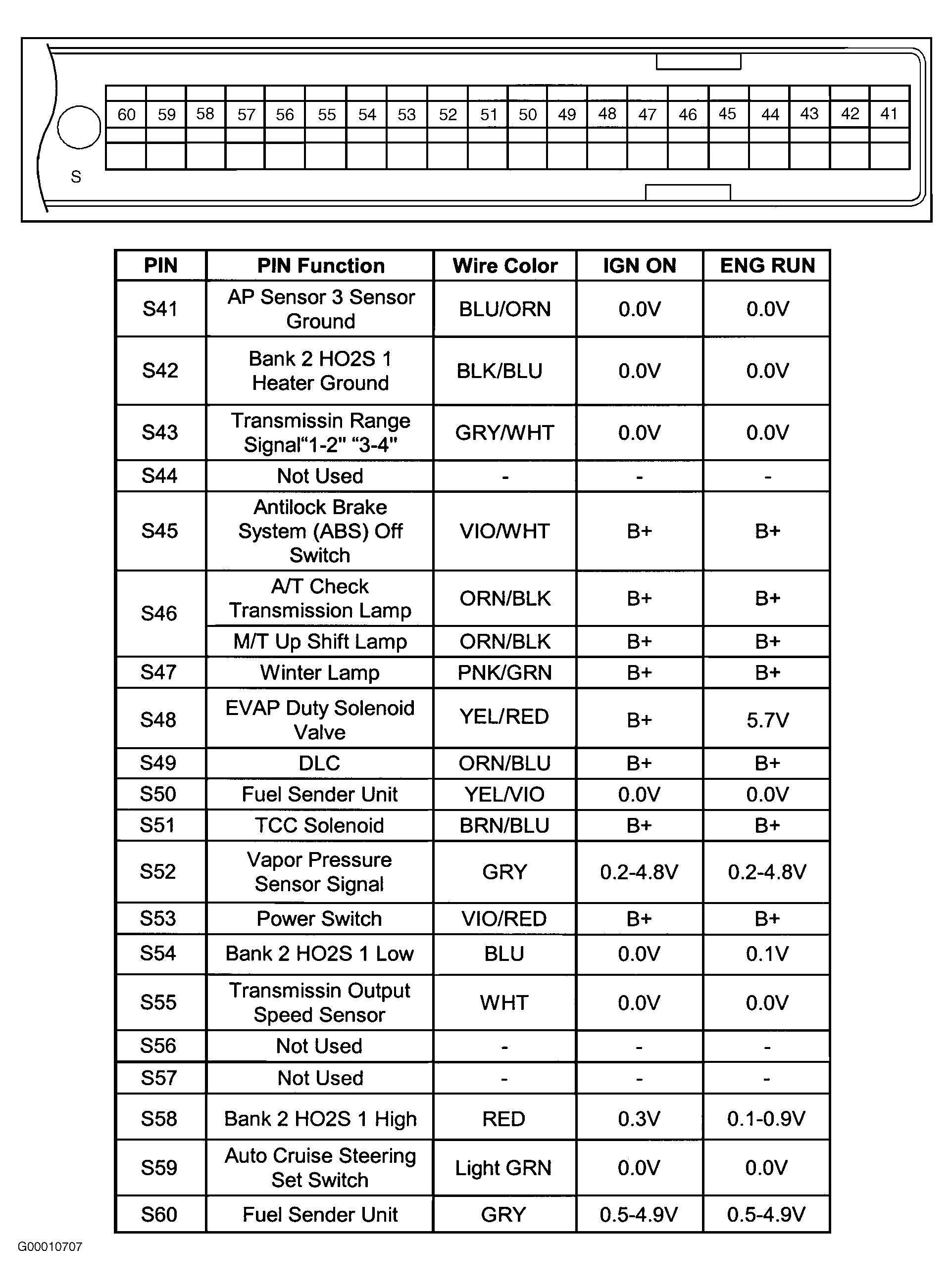

Fig 7: PCM Pin Identification & Voltage Table (Trooper 3.5L - 80-Pin Red Connector Row "S41-60")

Courtesy of ISUZU MOTOR CO.

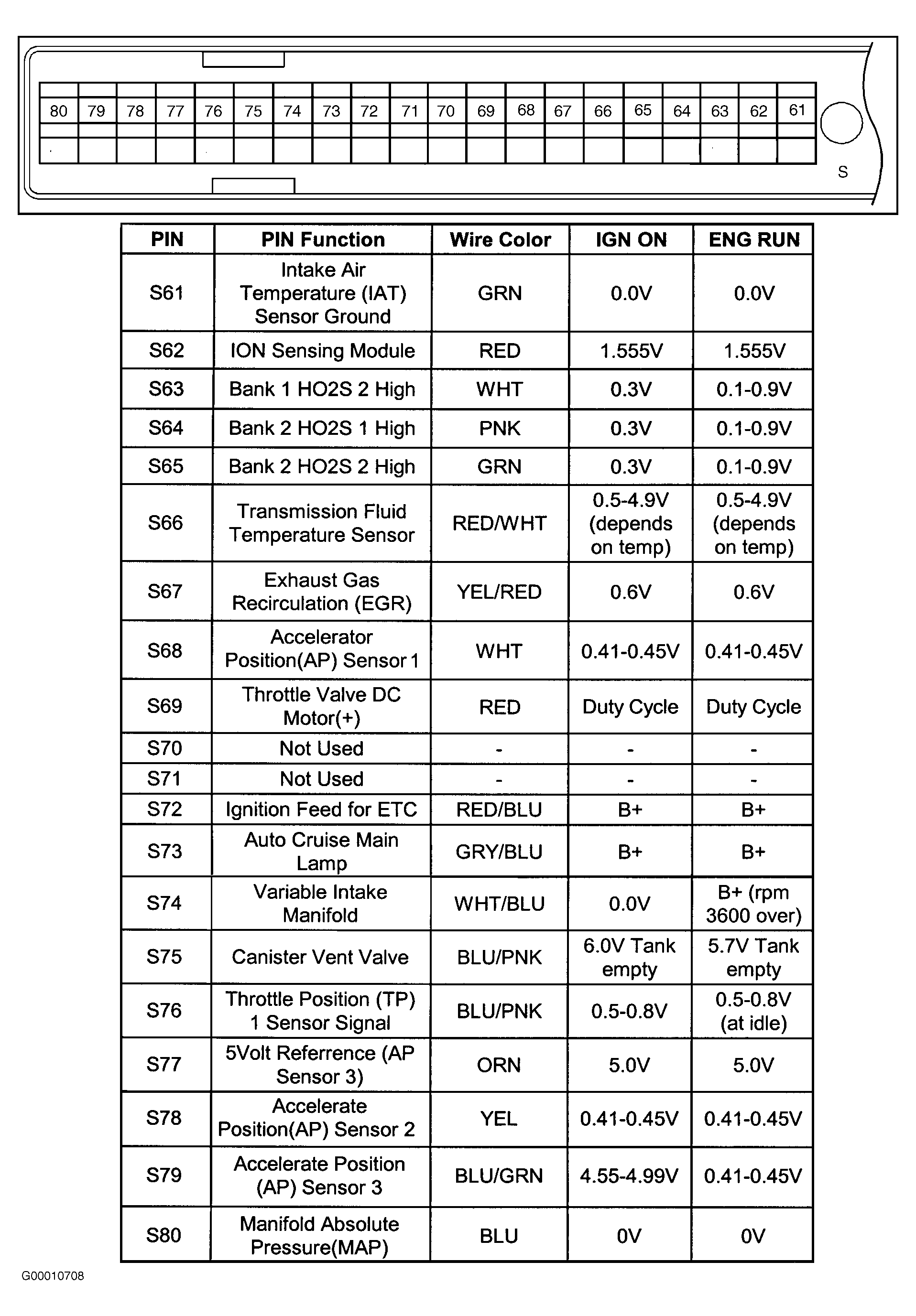

Fig 8: PCM Pin Identification & Voltage Table (Trooper 3.5L - 80-Pin Red Connector Row "S61-80")

Courtesy of ISUZU MOTOR CO.
