Removal & Installation (4.3L Hombre)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2000 Isuzu VehiCROSS, 2000 Isuzu Trooper, 2000 Isuzu Rodeo, 2000 Isuzu Hombre, and 2000 Isuzu Amigo. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative battery cable. Remove CMP sensor. See CAMSHAFT POSITION (CMP) SENSOR . Remove distributor assembly. Remove oil pressure sensor. See Fig 1. Remove knock sensor.
To install, reverse removal procedure. Before installing KS, clean threads in engine block thoroughly. Tighten to specification. See TORQUE SPECIFICATIONS .
NOTE: DO NOT apply thread sealant to sensor threads. Sensor is coated at factory and applying additional sealant will affect ability to detect detonation.

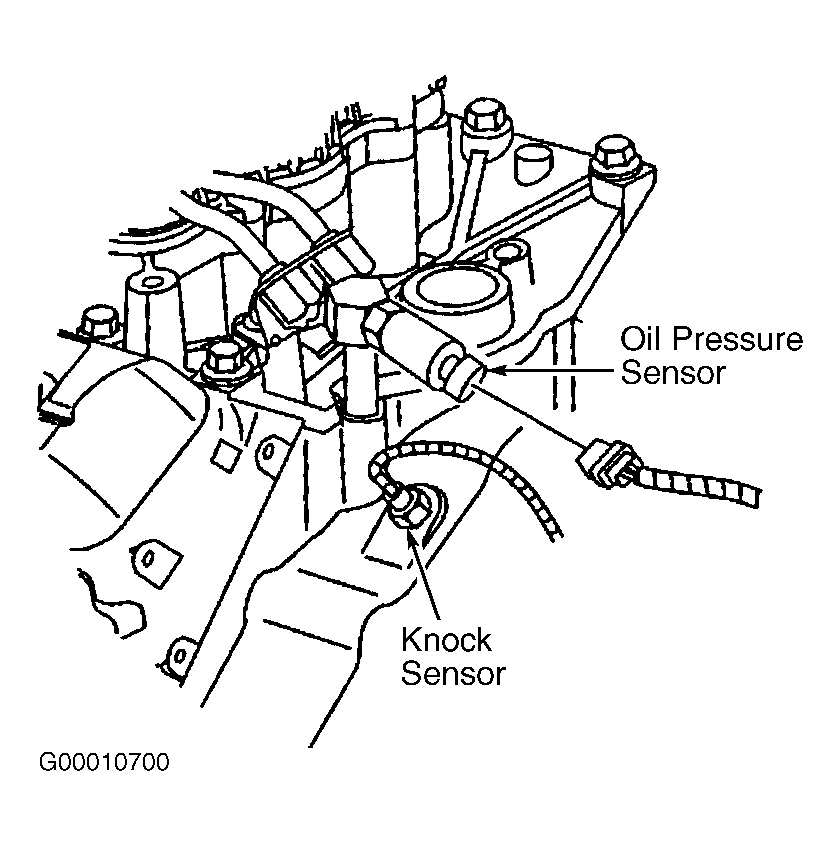

Fig 1: Identifying Knock Sensor (4.3L Hombre)

Courtesy of ISUZU MOTOR CO.
