Power Mirror Actuator: Prelude

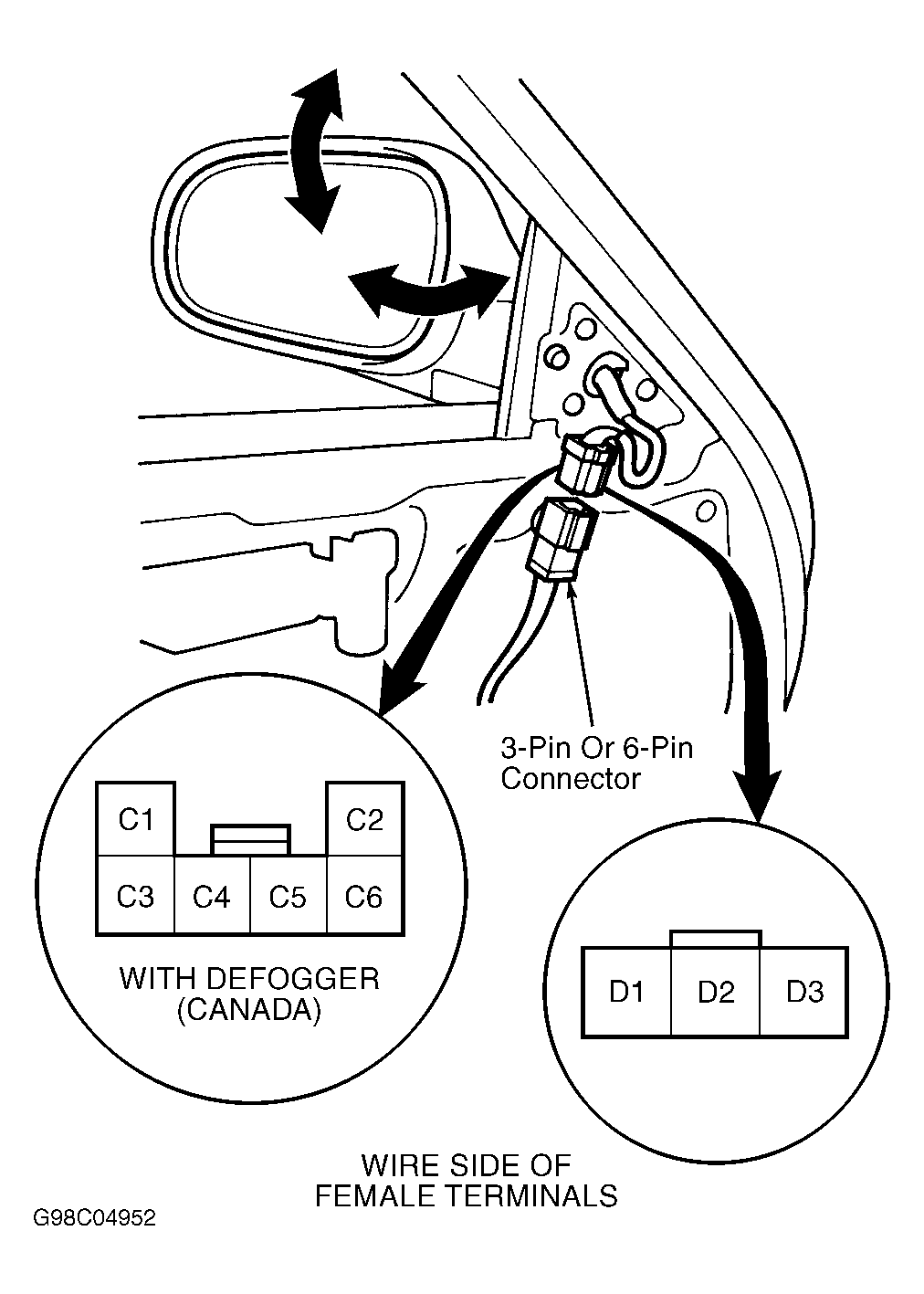

Remove door panel. See DOOR PANEL under REMOVAL & INSTALLATION. Disconnect power mirror 3-pin connector (6-pin on Canadian models). See Fig 1. Using jumper wires, connect specified terminals. Observe mirror for correct movement. See POWER MIRROR ACTUATOR TEST (PRELUDE) . If mirror does not respond as specified, replace mirror assembly. On Canadian models with mirror defoggers, check for continuity between terminals C1 and C2. If continuity is not indicated, replace mirror defogger.
POWER MIRROR ACTUATOR TEST (PRELUDE)(1)
| Apply 12 Volts To Terminal No. | Ground Terminal No. | Mirror Operation | ||
|---|---|---|---|---|
| D1 (C4) | D2 (C5) | Up | ||
| D2 (C5) | D1 (C4) | Down | ||
| D2 (C5) | D3 (C6) | Left | ||
| D3 (C6) | D2 (C5) | Right | ||
|
||||
