Ignition Switch: S2000

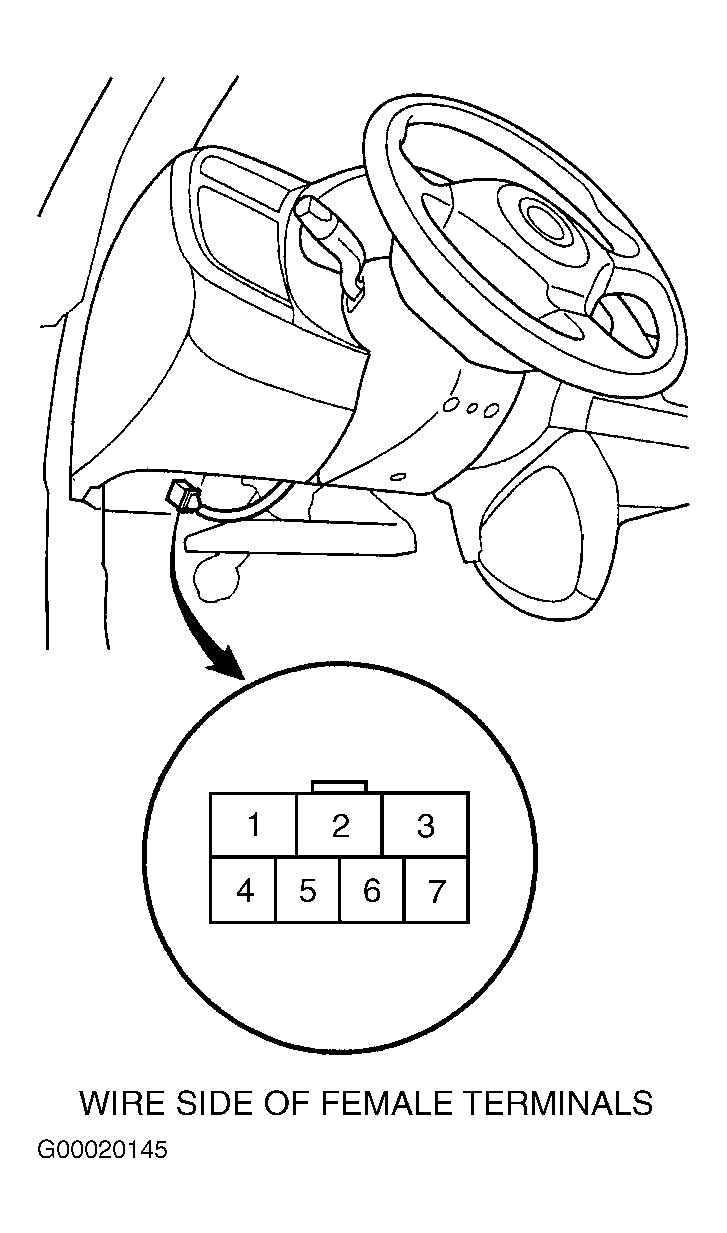

Disable air bag systems. See AIR BAG RESTRAINT SYSTEMS article. Disconnect ignition switch harness 7-pin connector from underdash fuse/relay box. With ignition switch in appropriate position, check for continuity between specified ignition switch harness connector terminals. See Fig 1. See IGNITION SWITCH CONTINUITY TEST (S2000) table. If continuity is not as specified, replace ignition switch.
IGNITION SWITCH CONTINUITY TEST (S2000)
| Switch Position | Continuity Between Terminals No. |
|---|---|
| Lock (0) | ..... |
| Accessory (I) | 5 & 6 |
| On (II) | 3, 5 & 6; 1, 2, 4 & 7 |
