Ignition Switch: Odyssey

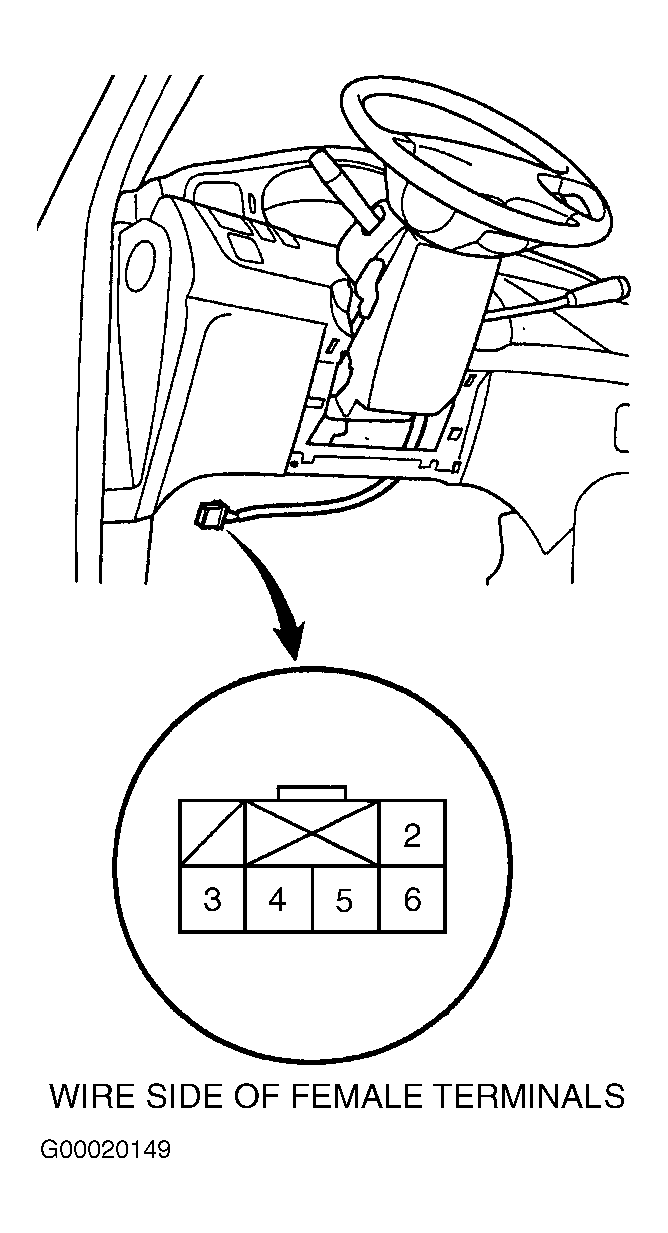

Disable air bag systems. See AIR BAG RESTRAINT SYSTEMS article. Disconnect battery negative cable. Remove driver's side instrument panel lower cover. Disconnect ignition switch harness 6-pin connector from underdash fuse/relay box. With ignition switch in appropriate position, check for continuity between specified ignition switch harness connector terminals. See Fig 1. See IGNITION SWITCH CONTINUITY TEST (ACCORD & ODYSSEY) table. If continuity is not as specified, replace ignition switch.
IGNITION SWITCH CONTINUITY TEST (ACCORD & ODYSSEY)
| Switch Position | Continuity Between Terminals No. |
|---|---|
| Lock (0) | ..... |
| Accessory (I) | 2 & 3 |
| On (II) | 2, 3, 4 & 5 |
| Start (III) | 2, 5 & 6 |
