Combination Switch: Prelude

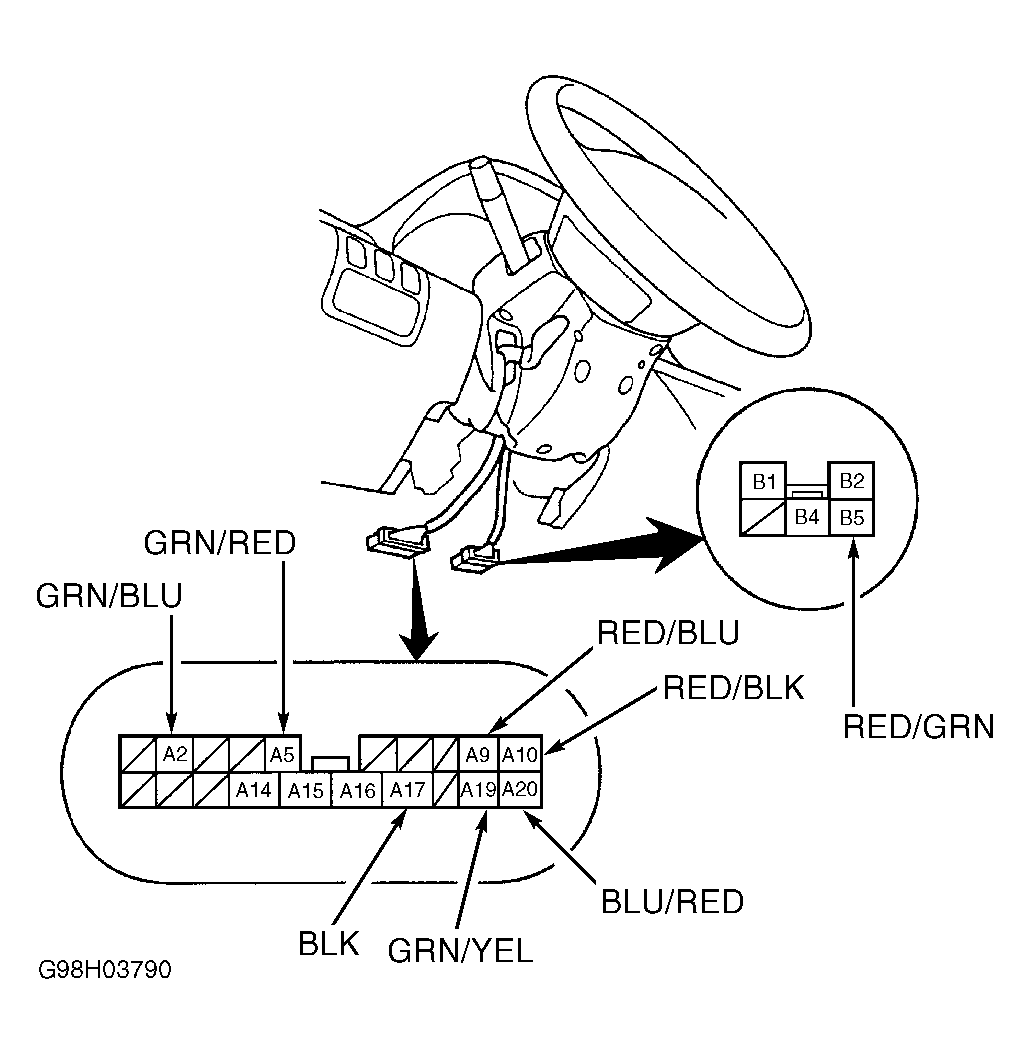

Remove combination switch. See COMBINATION SWITCH under REMOVAL & INSTALLATION. Inspect combination switch connector terminals to ensure they are making good contact. With combination switch in appropriate position, check continuity between specified switch connector terminals. See Fig 1. See COMBINATION SWITCH CONTINUITY TEST (PRELUDE) table. If continuity is not as specified, replace combination switch.
COMBINATION SWITCH CONTINUITY TEST (PRELUDE)
| Switch Position | Continuity Between Terminals | ||
|---|---|---|---|
| Lights | |||
| Off | ..... | ||
| Park Lights | B5 & A10 | ||
| Low Beam | A20, A17, B5 & A10 | ||
| High Beam | A9, A20, A17, B5, A10 | ||
| Flash-To-Pass | |||
| Off | ..... | ||
| On | A9, A20 & A17 | ||
| Turn Signal | |||
| Left | A5 & A2 | ||
| Right | A5 & A19 | ||
