Combination Switch: Odyssey

Remove combination switch. See COMBINATION SWITCH under REMOVAL & INSTALLATION. Inspect combination switch connector terminals to ensure they are making good contact. With combination switch in appropriate position, check continuity between specified combination switch connector terminals. See Fig 1. See COMBINATION SWITCH CONTINUITY TEST (ODYSSEY) table. If continuity is not as specified, replace combination switch.

COMBINATION SWITCH CONTINUITY TEST (ODYSSEY)

Switch Position

Continuity Between Terminals No.

Headlight

Off

.....

Park Lights

6 & 7

Low Beam

3 ⁽¹⁾, 4, 8, 9 ⁽²⁾ & 11, 6 & 7

High Beam

3 ⁽¹⁾, 4, 10 & 11; 6 & 7

Flash-To-Pass

3 ⁽¹⁾, 4, 10 & 11

Turn Signal

Left

12 & 13

Right

13 & 14

⁽¹⁾	With auto-off headlight function.

⁽²⁾	Canadian models.

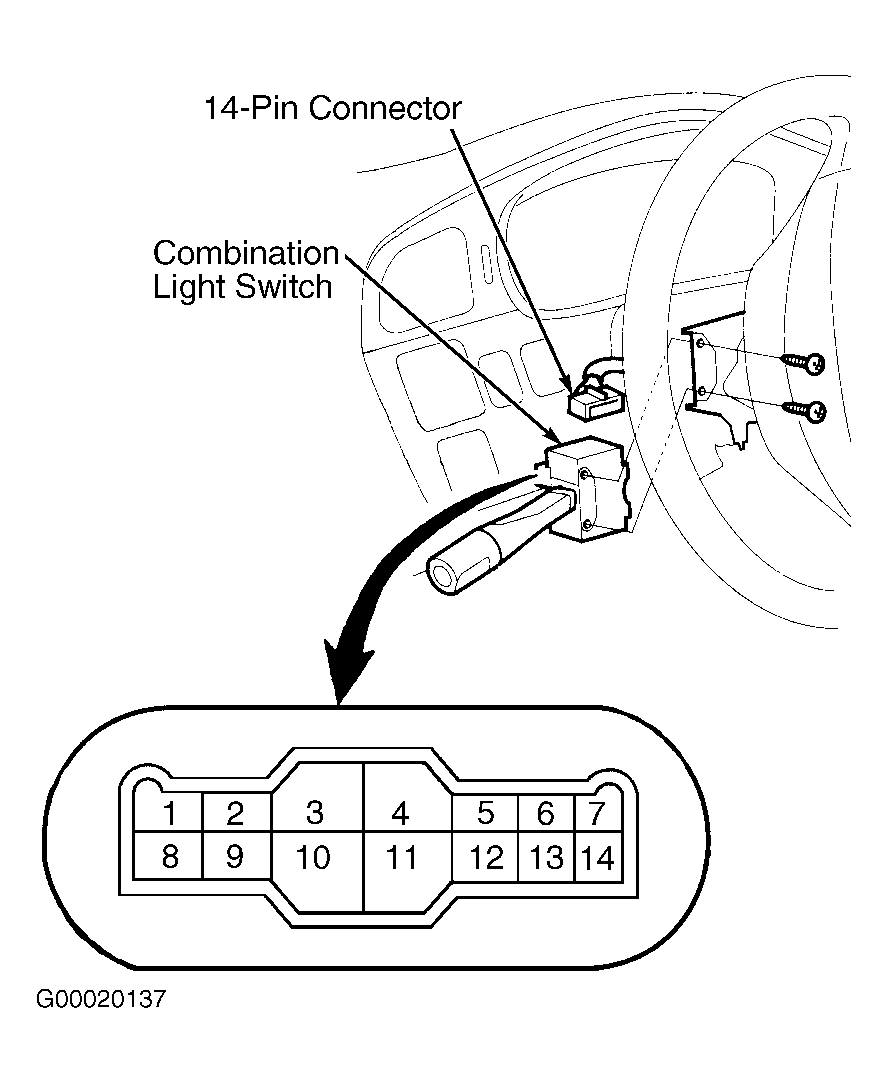

Fig 1: Identifying Combination Switch Terminals (Odyssey)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
