Civic & CR-V

Remove combination switch. See COMBINATION SWITCH under REMOVAL & INSTALLATION. Inspect 4-pin and 7-pin connector terminals and ensure they are making good contact. With combination switch in appropriate position, check continuity between specified combination switch terminals. See Fig 1. See COMBINATION SWITCH CONTINUITY TEST (CIVIC & CR-V) table. If continuity is not as specified, replace combination switch.

COMBINATION SWITCH CONTINUITY TEST (CIVIC & CR-V)

Switch Position

Continuity Between Terminals

Lights

Off

.....

Park Lights

B1 & B2

Low Beam

B1 & B2; B3, ⁽¹⁾ B4 & B6

High Beam

B1 & B2; ⁽¹⁾ B4, B5 & B6

Flash-To-Pass

B5 & B6

Turn Signal

Left

A1 & A2

Right

A1 & A4

⁽¹⁾	Canadian models.

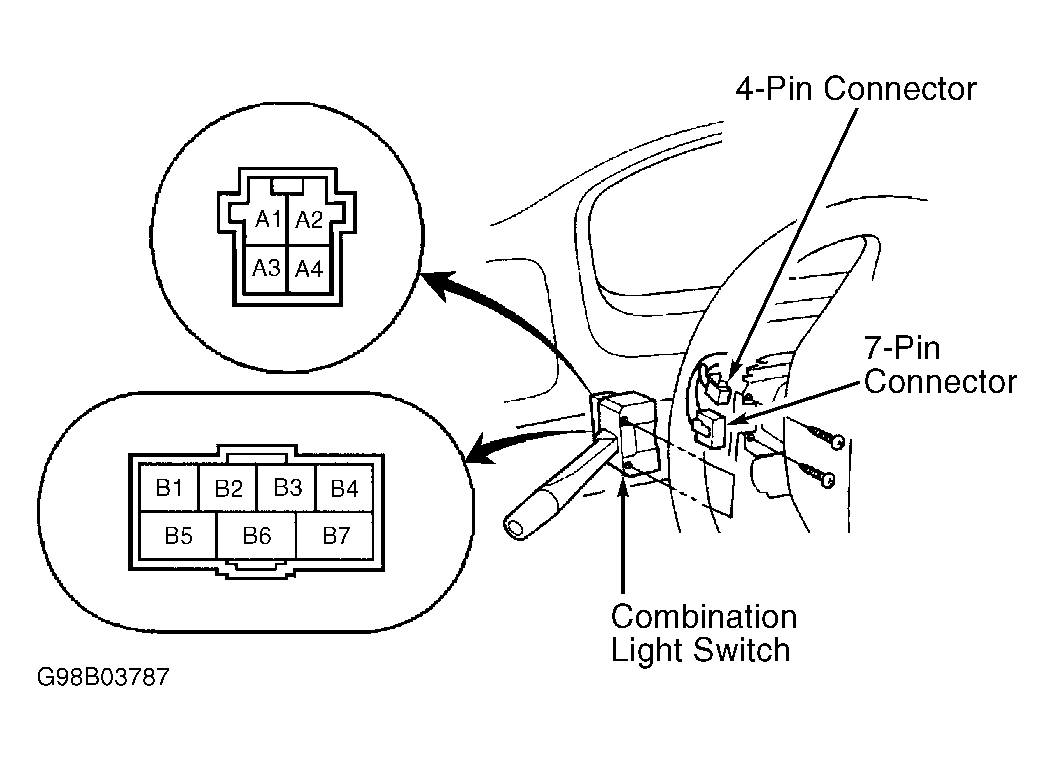

Fig 1: Identifying Combination Switch Terminals (Civic & CR-V)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
