Defogger Relay Test

Remove defogger relay. See COMPONENT LOCATIONS . Apply battery voltage across relay relay terminals and ensure voltage exists between remaining terminals. See WIRING DIAGRAMS . See Fig 1.

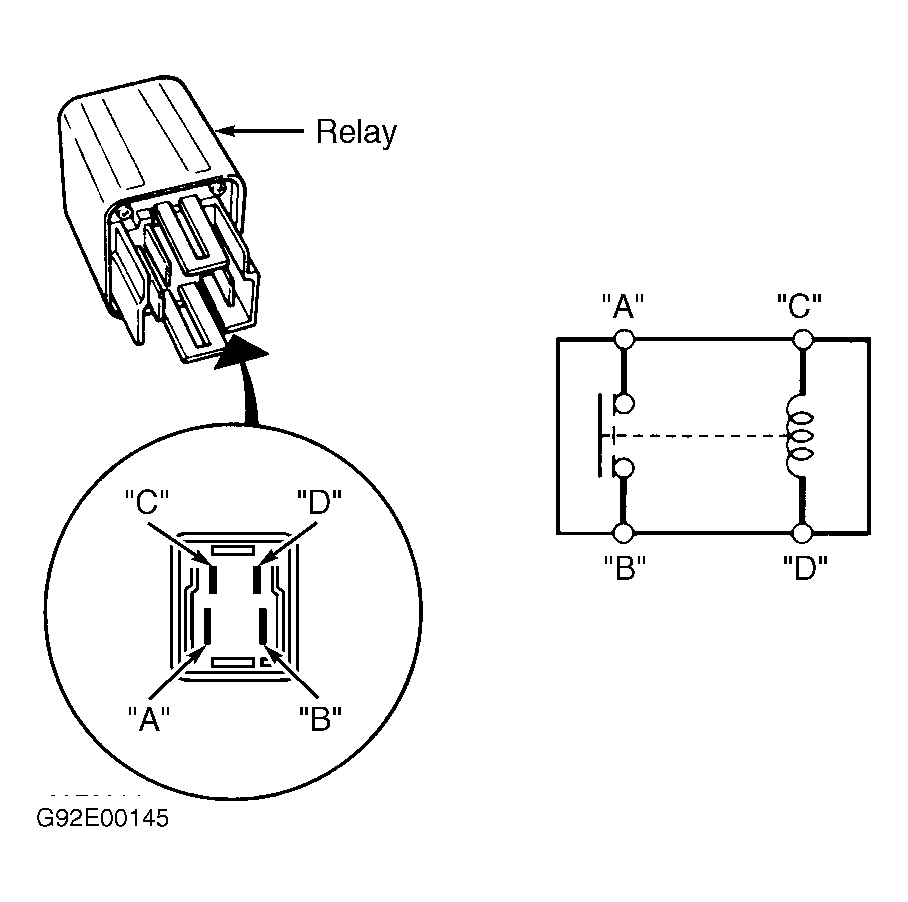

Fig 1: Identifying Defogger Relay Terminals (Typical)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
