Clutch Coil: Installation

To install clutch coil, reverse removal procedure. Ensure clutch coil gap is 0.014-0.026" (0.35-0.65 mm). Add or remove shims as necessary. Tighten clutch hub retaining bolt to 7-11 ft. lbs. (10-15 N.m).

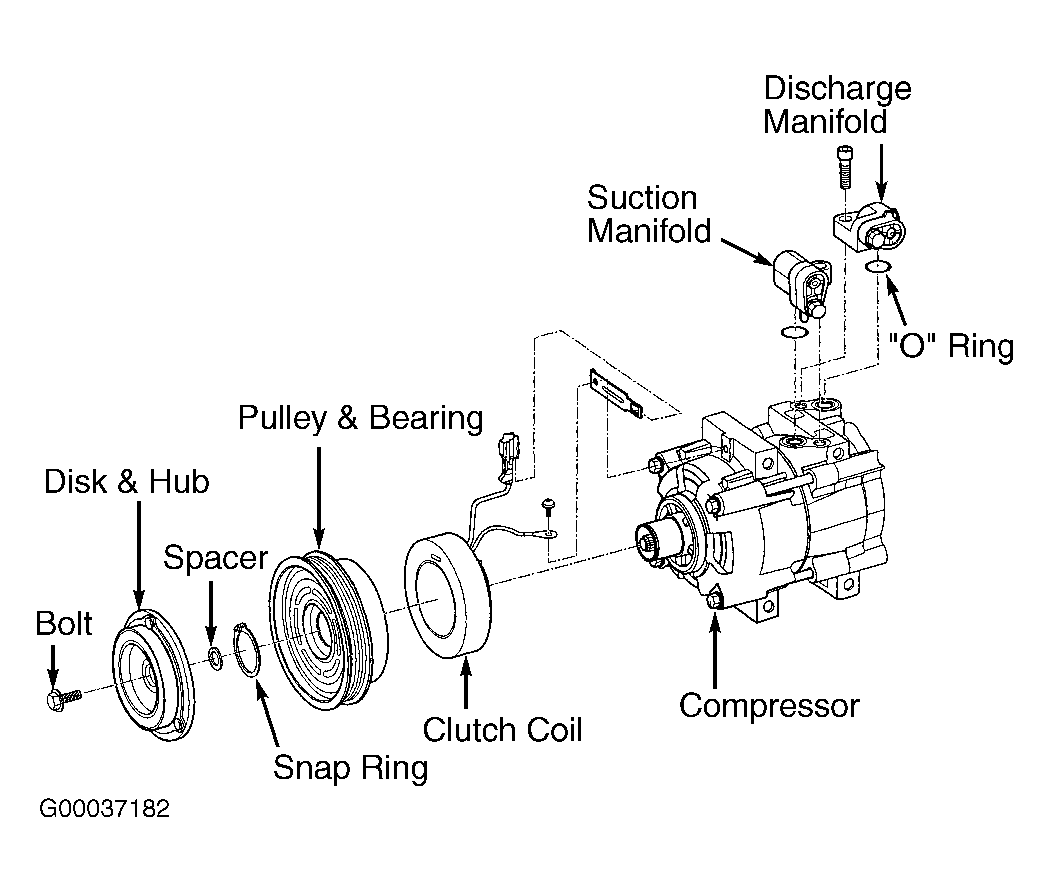

Fig 1: Exploded View Of Compressor (Halla HS-18)
