Activating Air Bag System (MR2)

Ensure ignition key is removed from switch and negative battery cable is disconnected. Wait at least 90 seconds after negative battery cable is disconnected.
Connect all seat belt pretensioner and air bag Yellow 2-pin connectors in reverse order. Install all removed interior panels. Connect negative battery cable. Perform SYSTEM OPERATION CHECK .

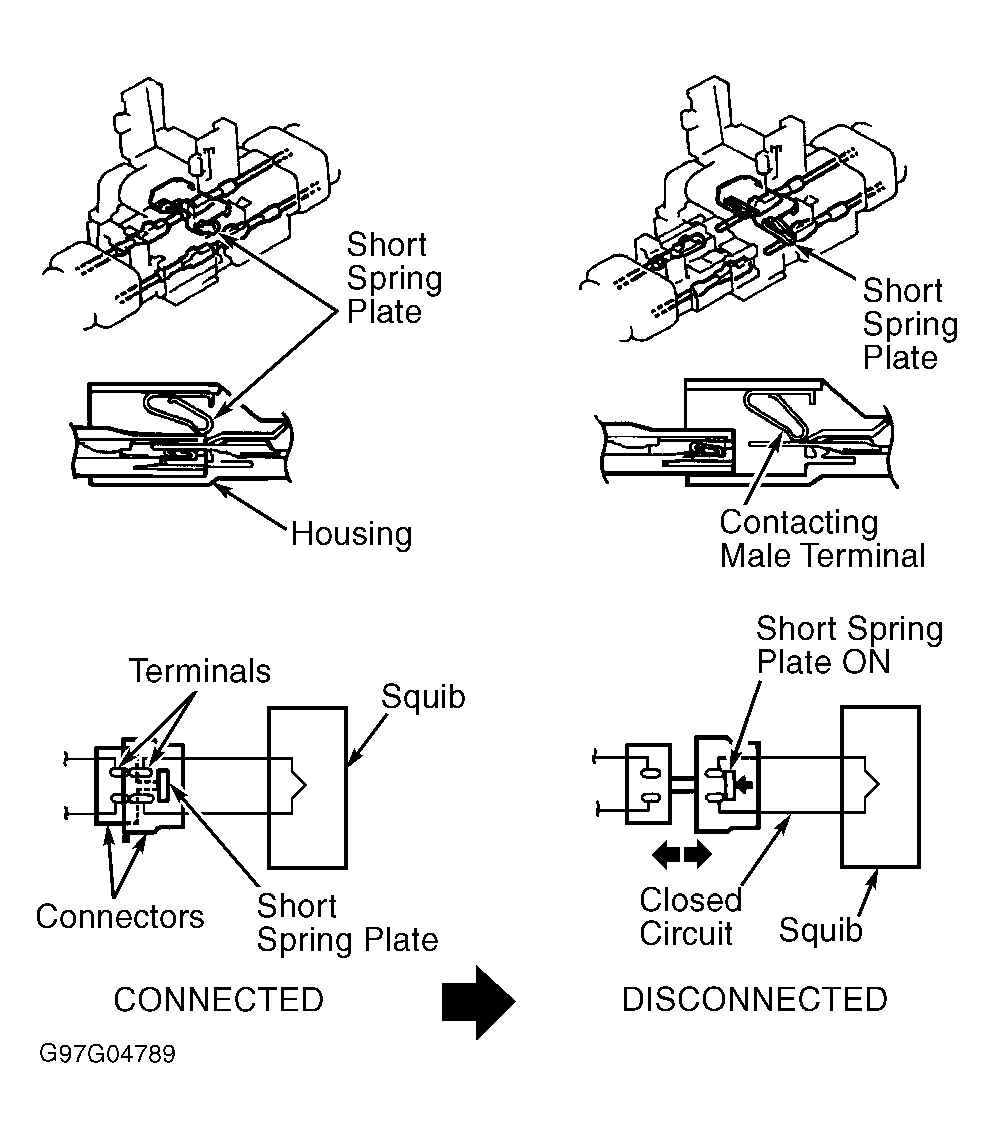

Fig 1: Air Bag Activation Prevention Mechanism Yellow Connector (Toyota)

G97G04789

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

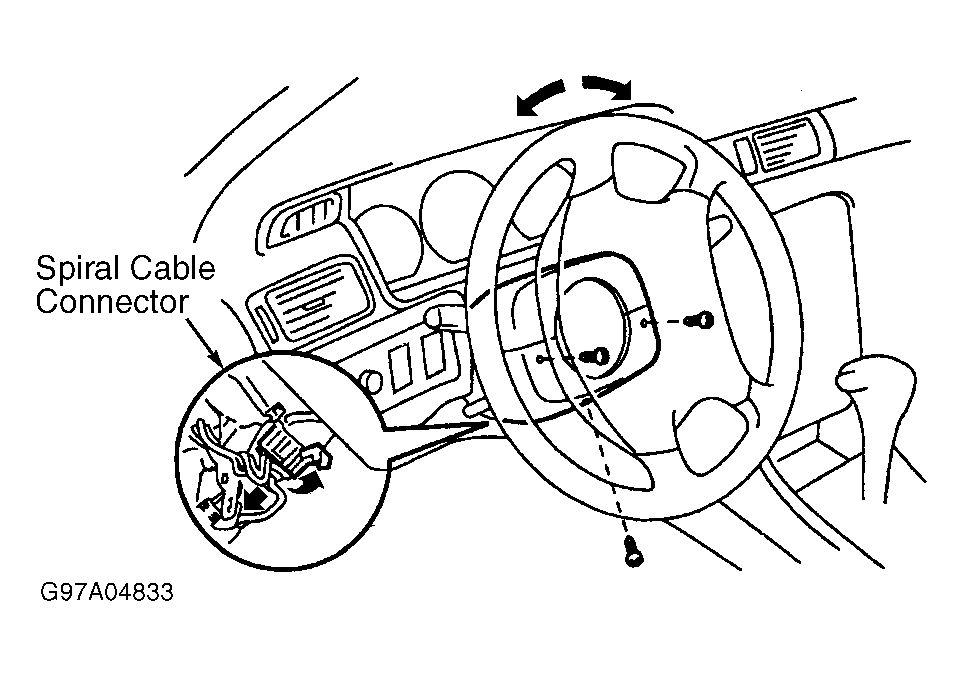

Fig 2: Disconnecting Driver Air Bag Connector (Typical)

G97A04833

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Disconnecting Passenger Air Bag Connector (Camry & Camry Solara Shown; Avalon Is Similar)

G98D09728

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

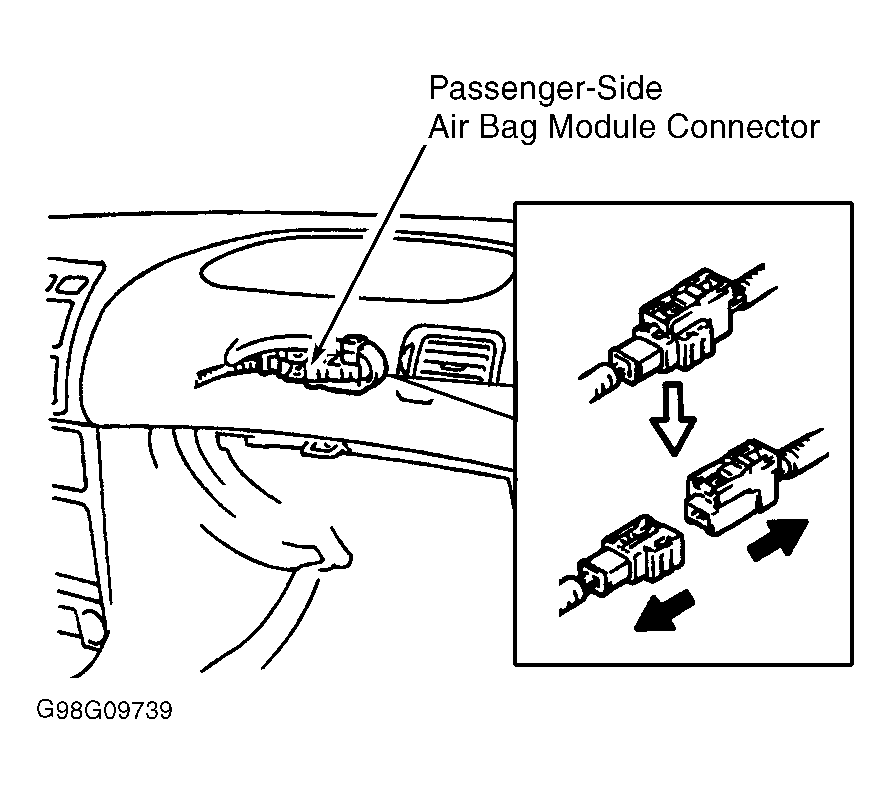

Fig 4: Disconnecting Passenger Air Bag Connector (Corolla)

G98G09739

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

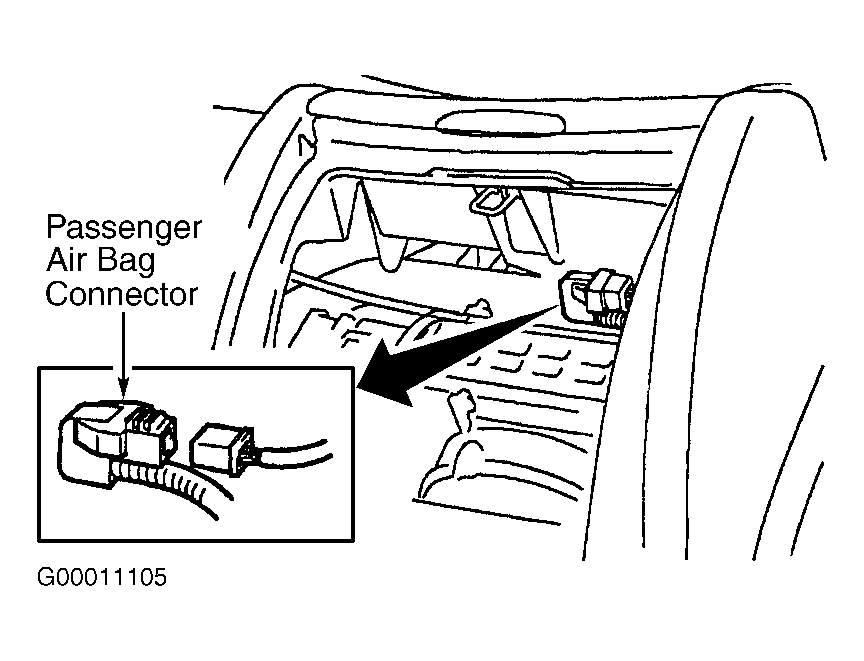

Fig 5: Disconnecting Passenger Air Bag Connector (ECHO)

G00011105

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

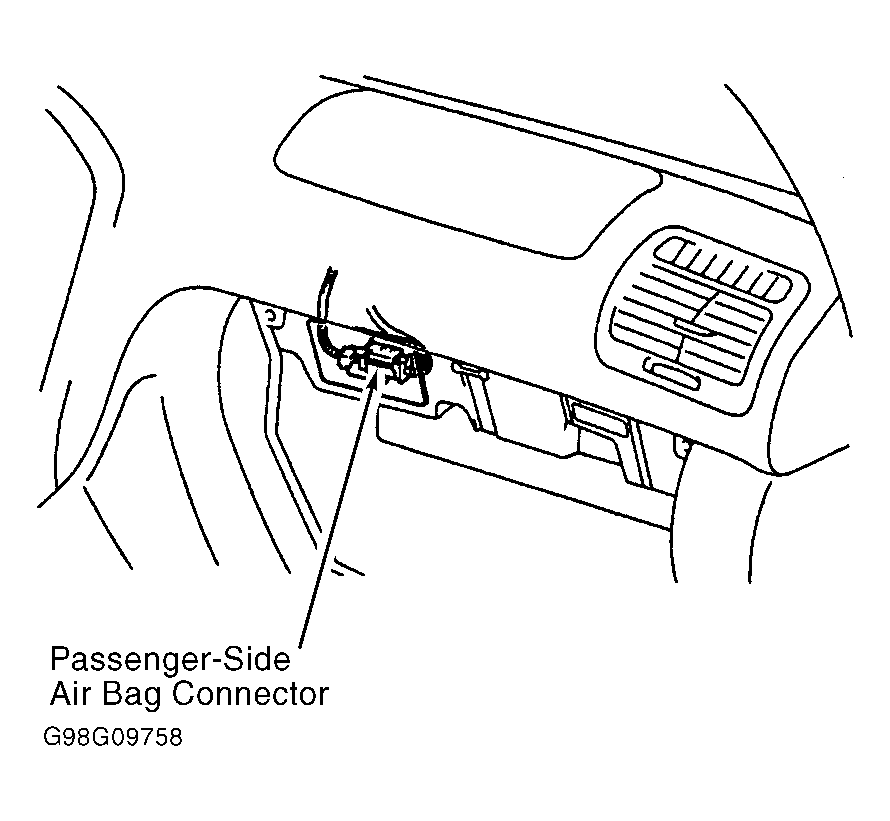

Fig 6: Disconnecting Passenger Air Bag Connector (Land Cruiser)

G98G09758

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

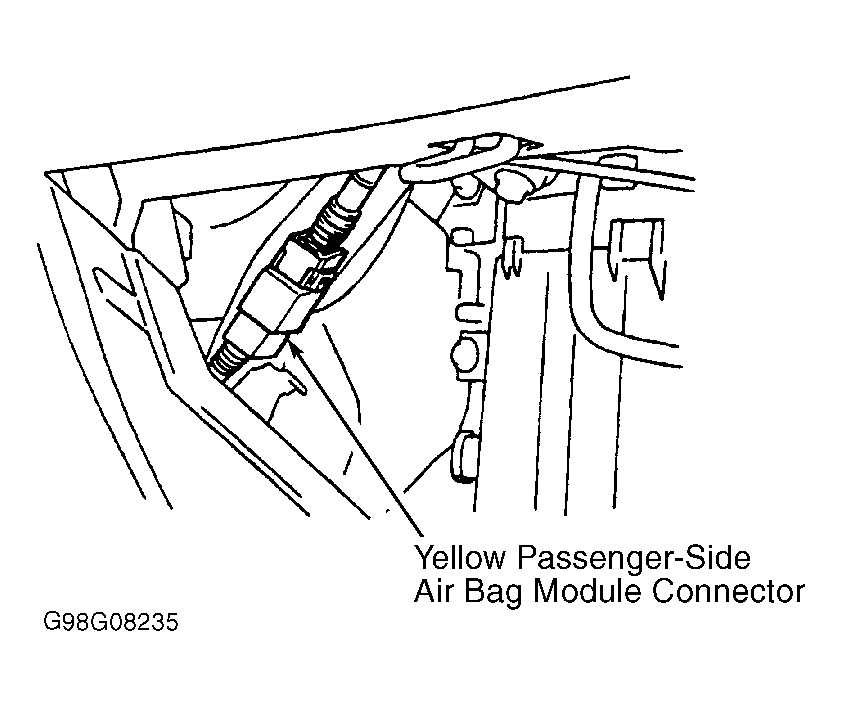

Fig 7: Disconnecting Passenger Air Bag Connector (RAV-4)

G98G08235

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

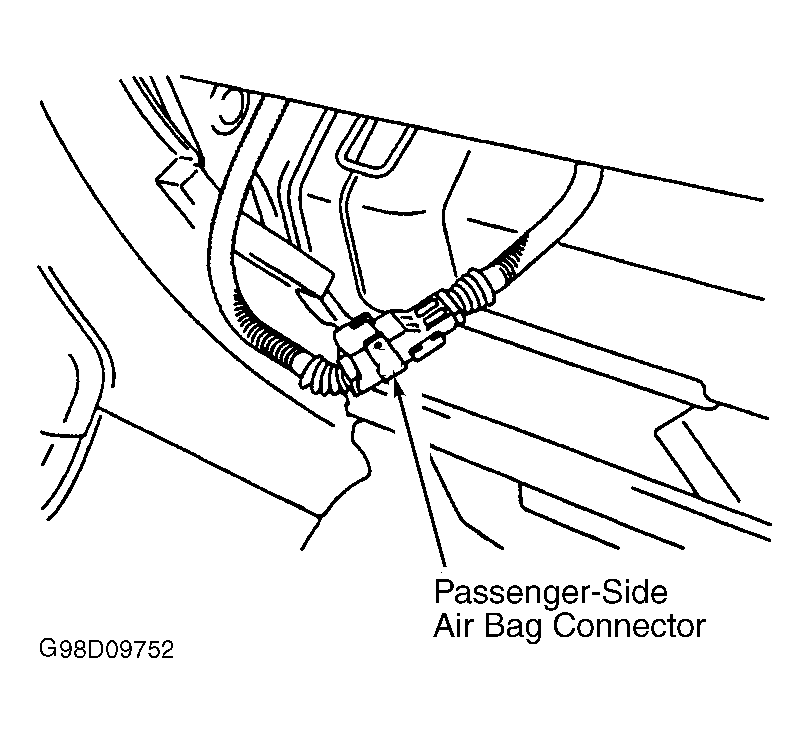

Fig 8: Disconnecting Passenger Air Bag Connector (4Runner)

G98D09752

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

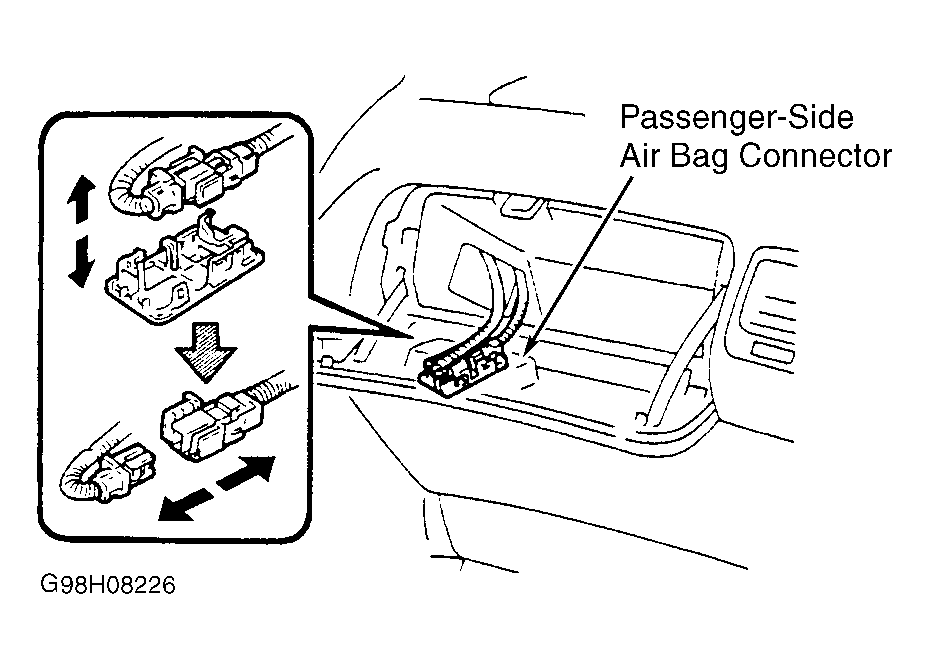

Fig 9: Disconnecting Passenger Air Bag Connector (Sienna)

G98H08226

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

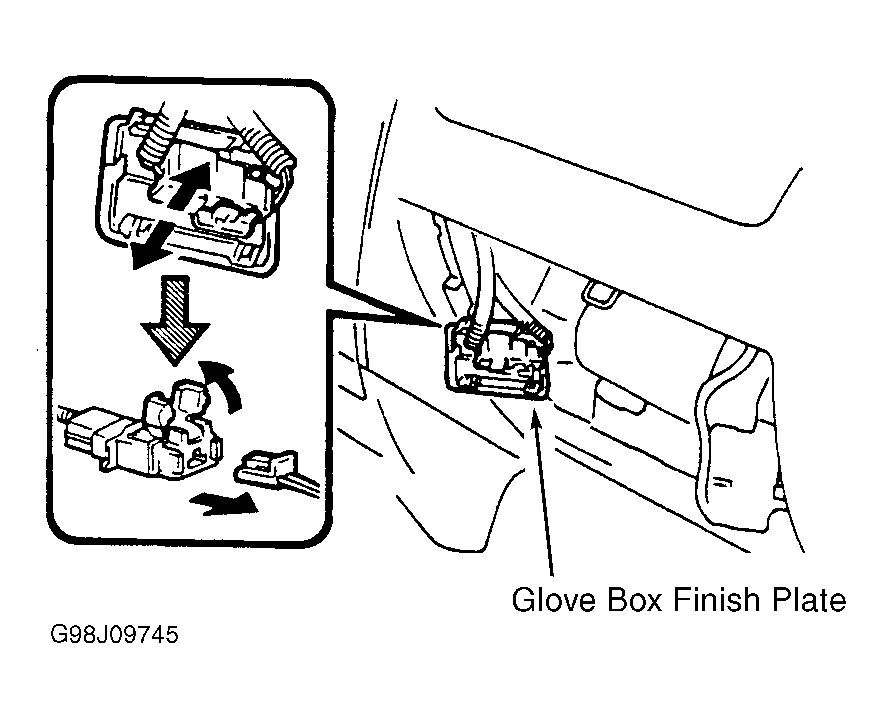

Fig 10: Disconnecting Passenger Air Bag Connector (Tacoma)

G98J09745

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

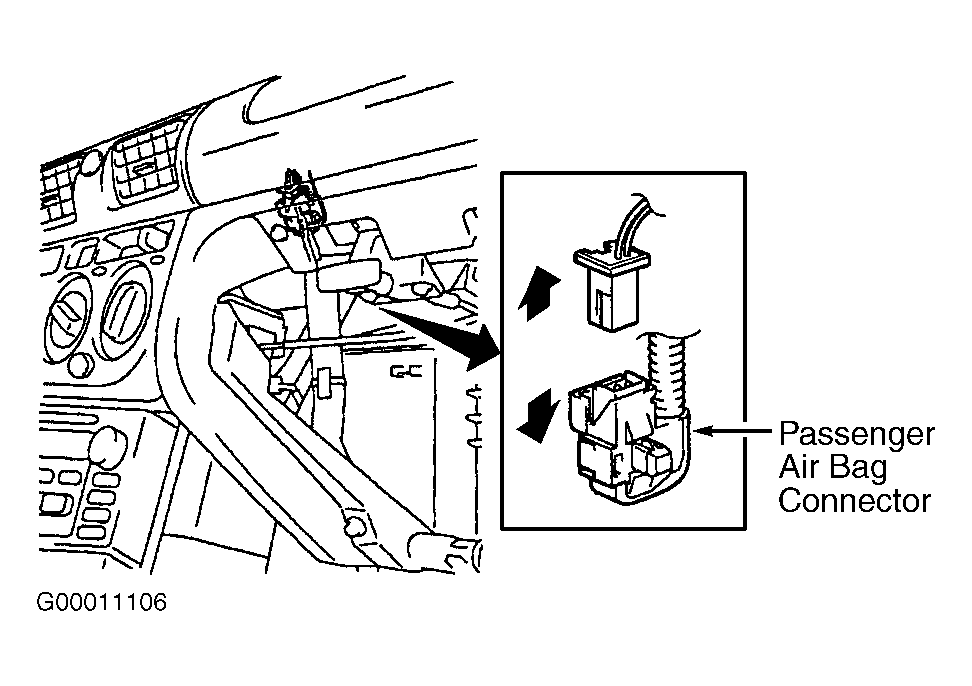

Fig 11: Disconnecting Passenger Air Bag Connector (MR2)

G00011106

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

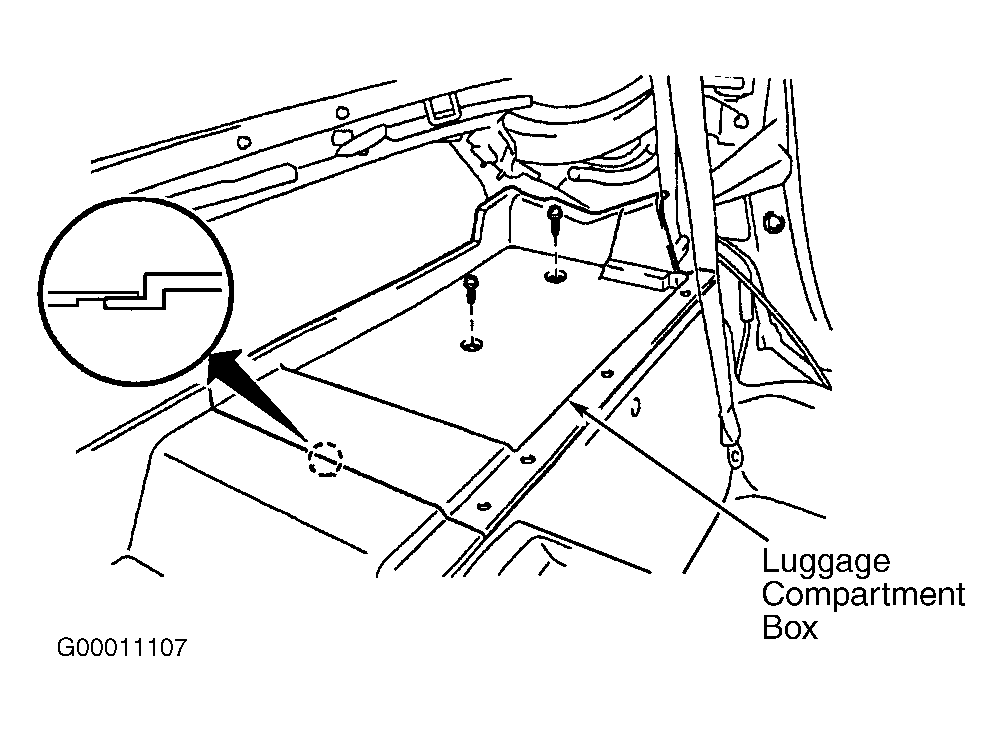

Fig 12: Removing Rear Luggage Compartment Box (MR2)

G00011107

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

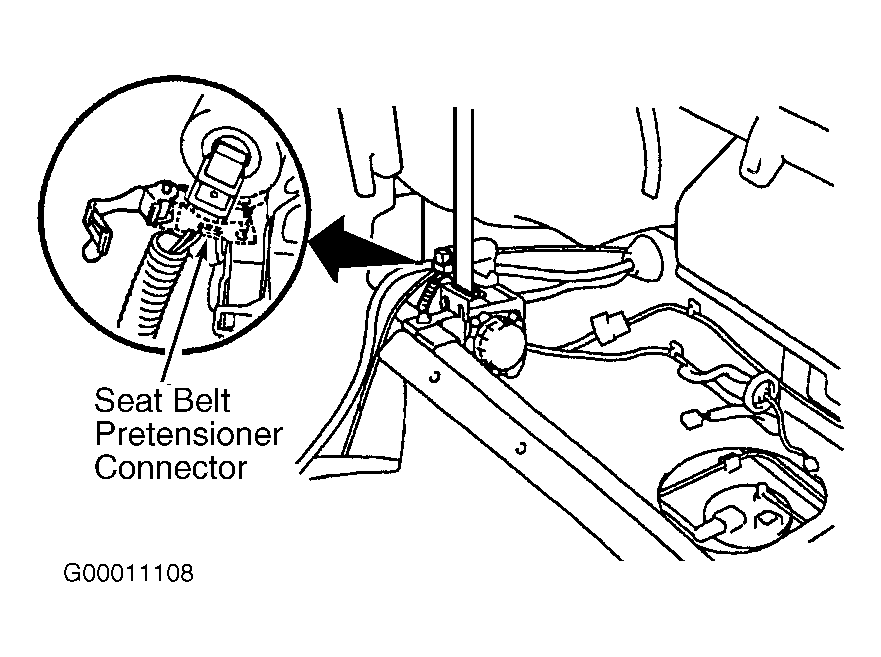

Fig 13: Disconnecting Seat Belt Pretensioner Connector (MR2)

G00011108

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
