CR-V & Civic (Coupe & Hatchback)

Raise glass as far as possible and hold against glass run channel. Loosen roller guide bolts. Adjust glass parallel with glass run channel. See Fig 2 . Tighten roller guide bolts. Loosen channel bolt(s). Lower glass. Push channel against glass, then tighten channel bolt(s). Ensure glass moves smoothly. Raise glass fully. Check for leaks using low pressure water.

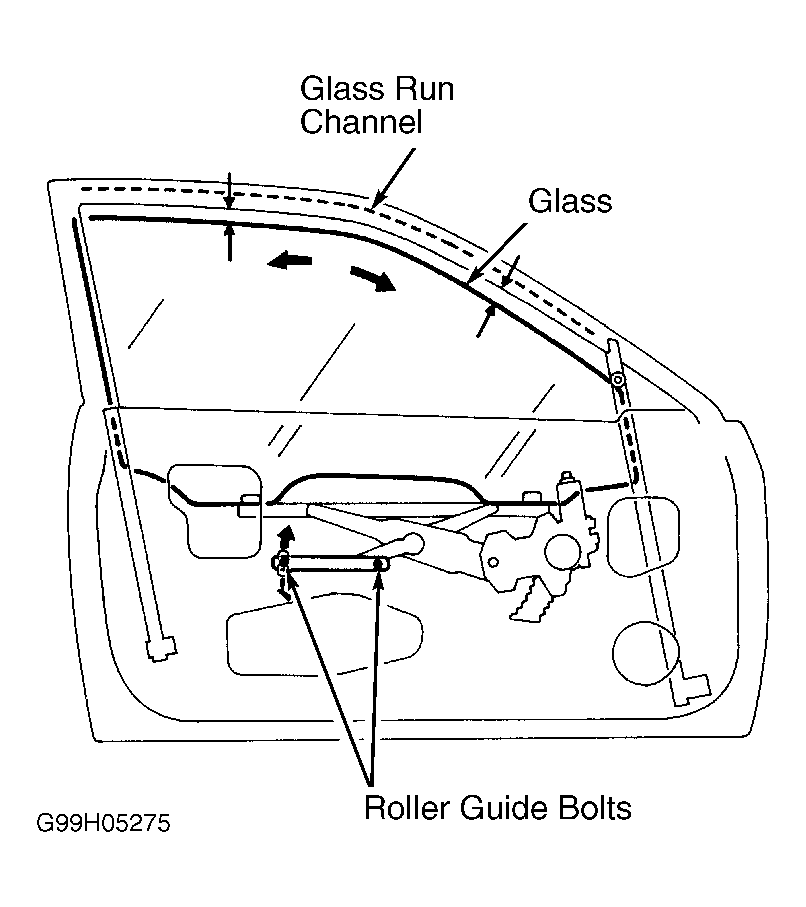

Fig 1: Identifying Power Window Glass Adjustments (Civic Sedan)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Identifying Power Window Glass Adjustments (Civic Coupe Shown; CR-V Is Similar)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
