Removal & Installation

  1. Remove the screws, detach the clips, then remove driver's dashboard lower cover. Disconnect the rear hatch glass opener switch connector. See Fig 1 .
  2. Remove the bolts, then remove the knee bolster. See Fig 2 .
    3. NOTE: Make sure the connector is connected properly.
  3. Installation is the reverse of the removal procedure.

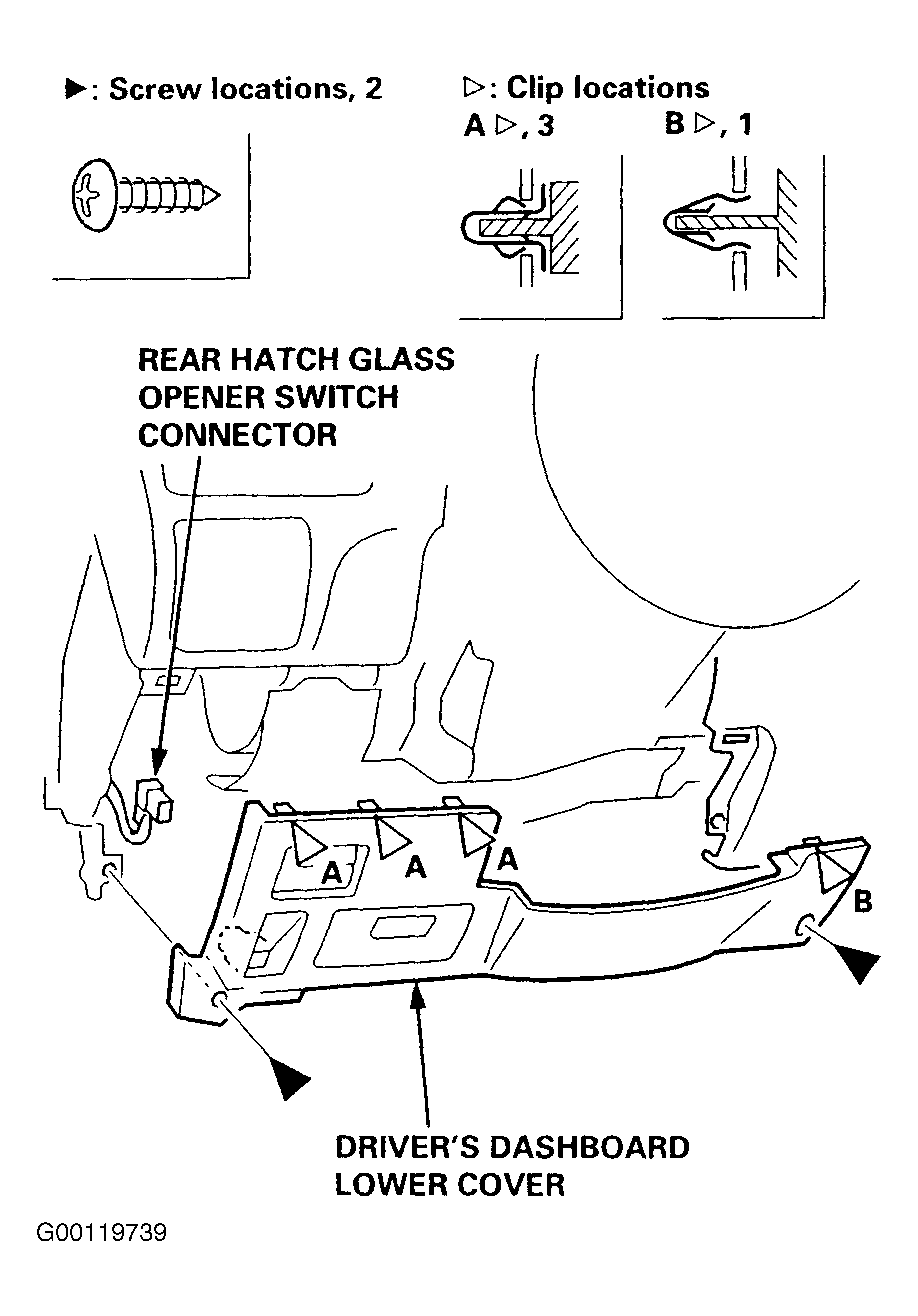

Fig 1: Removing Driver's Dashboard Lower Cover
G00119739Courtesy of AMERICAN HONDA MOTOR CO., INC.

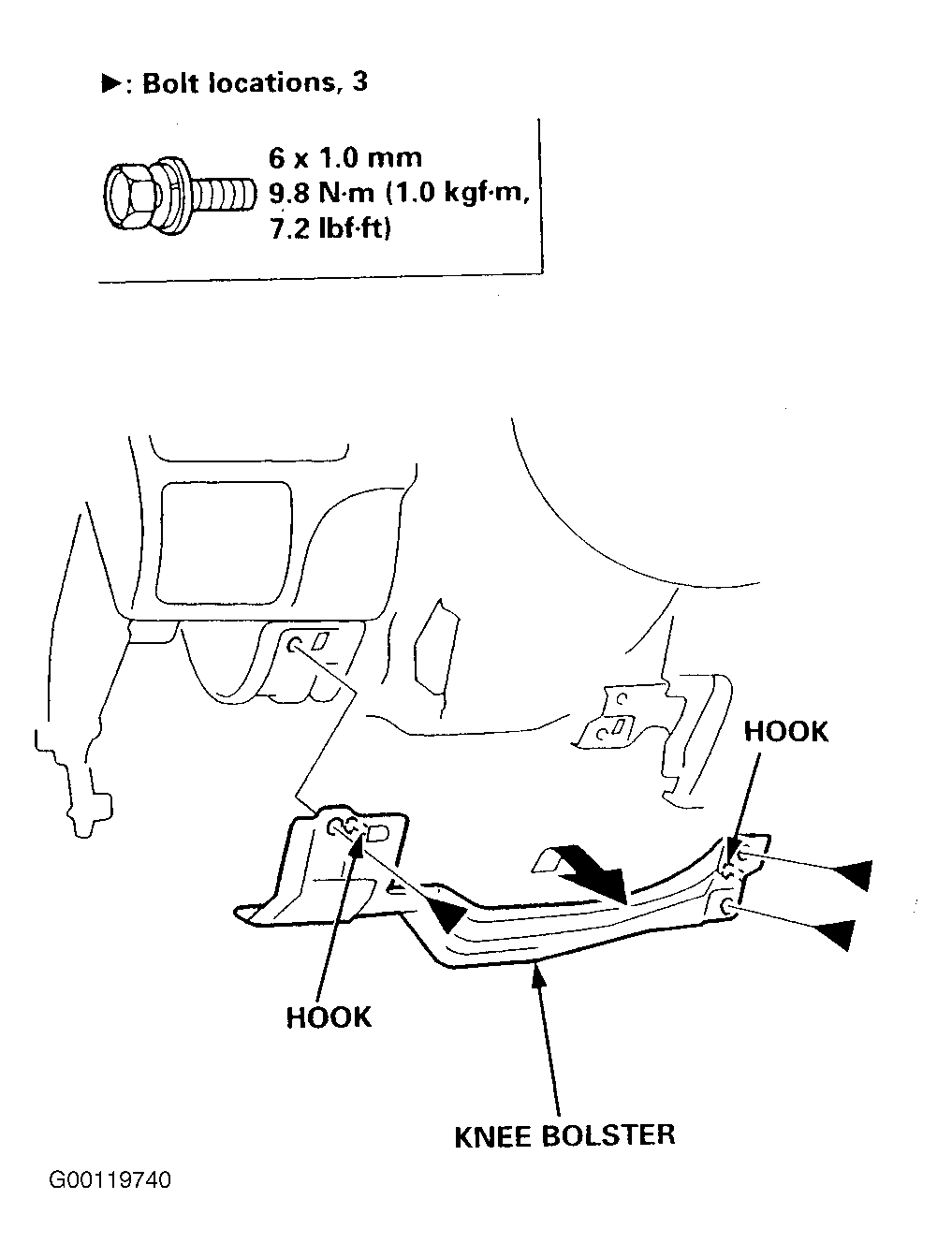

Fig 2: Removing Knee Bolster
G00119740Courtesy of AMERICAN HONDA MOTOR CO., INC.
