A/T Gear Position Switch Test

Disconnect A/T gear position switch 10-pin connector. Check continuity between specified switch connector terminals and switch position. See Fig 1 . If continuity is not as specified, replace A/T gear position switch.

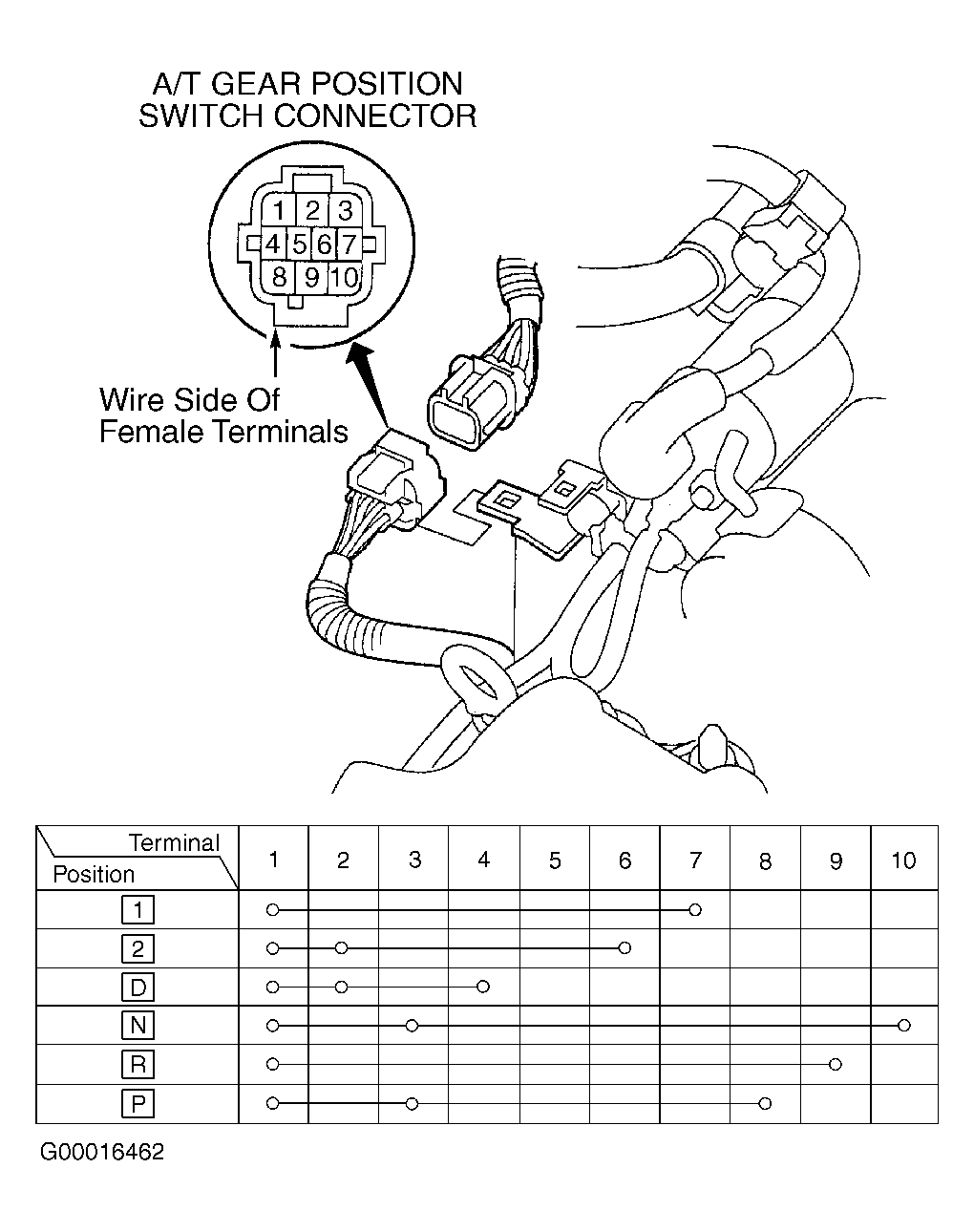

Fig 1: Testing A/T Gear Position Switch

Courtesy of AMERICAN HONDA MOTOR CO., INC.
