Removal & Installation

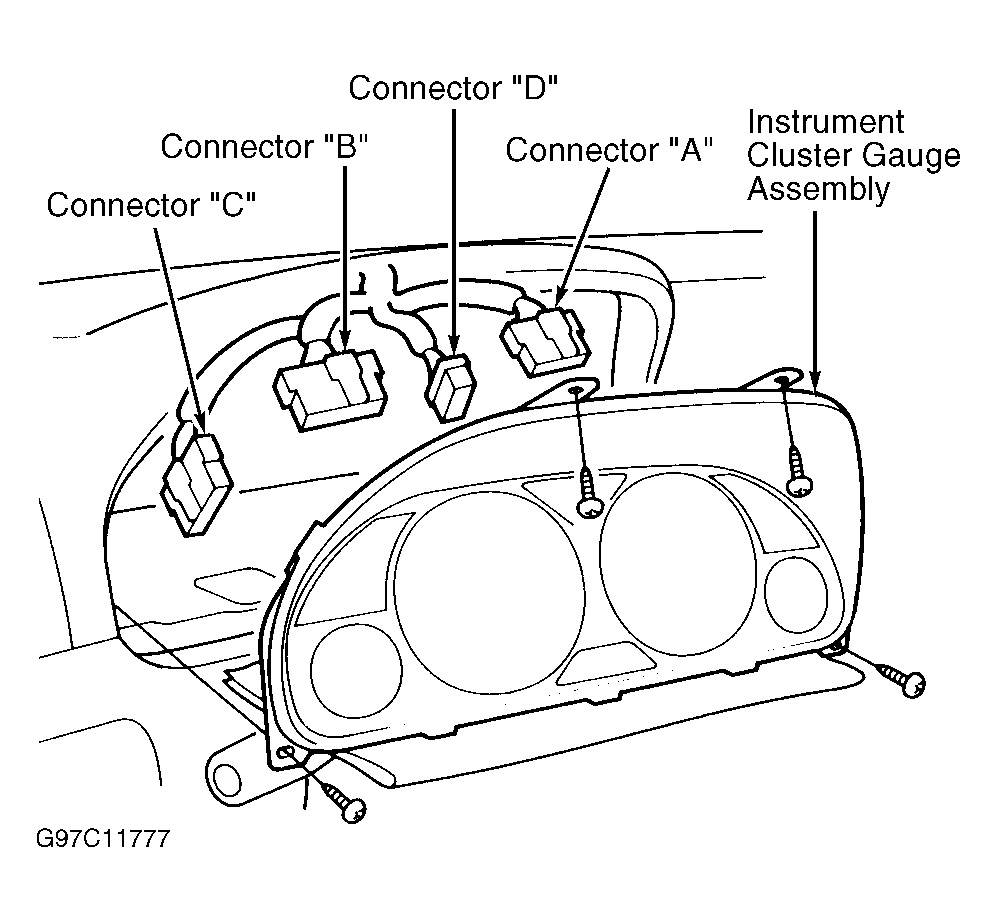

Remove instrument cluster retaining screws. Place a cloth over steering column. Roll instrument cluster forward towards steering column. Disconnect harness connectors from instrument cluster. See Fig 1 . Remove instrument cluster. To install reverse removal procedure.
