Hazard Switch

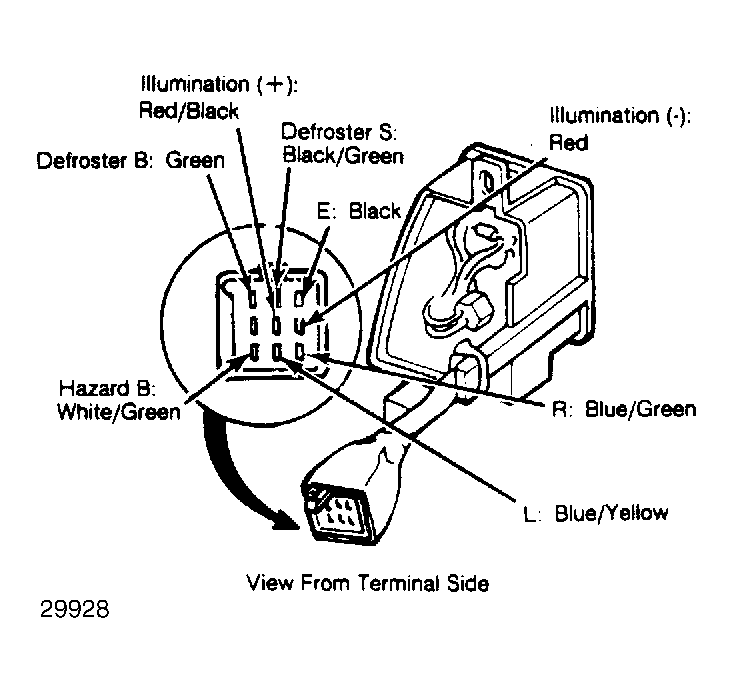

- With switch in "OFF" position, no continuity should exist between terminal "B" (White/Green) and other terminals. See Fig 1 .
- With switch in "ON" position, there should be continuity between terminals "B" (White/Green), "L" (Blue/Yellow), and "R" (Blue/Green).
