Disassembly & Reassembly

Remove the shift valve sleeve, lock-up shift valve and spring. Remove lock-up timing valve retainer, spring and valve. See Fig 1. Inspect all parts for year or damage. To assemble, reverse disassembly procedure.

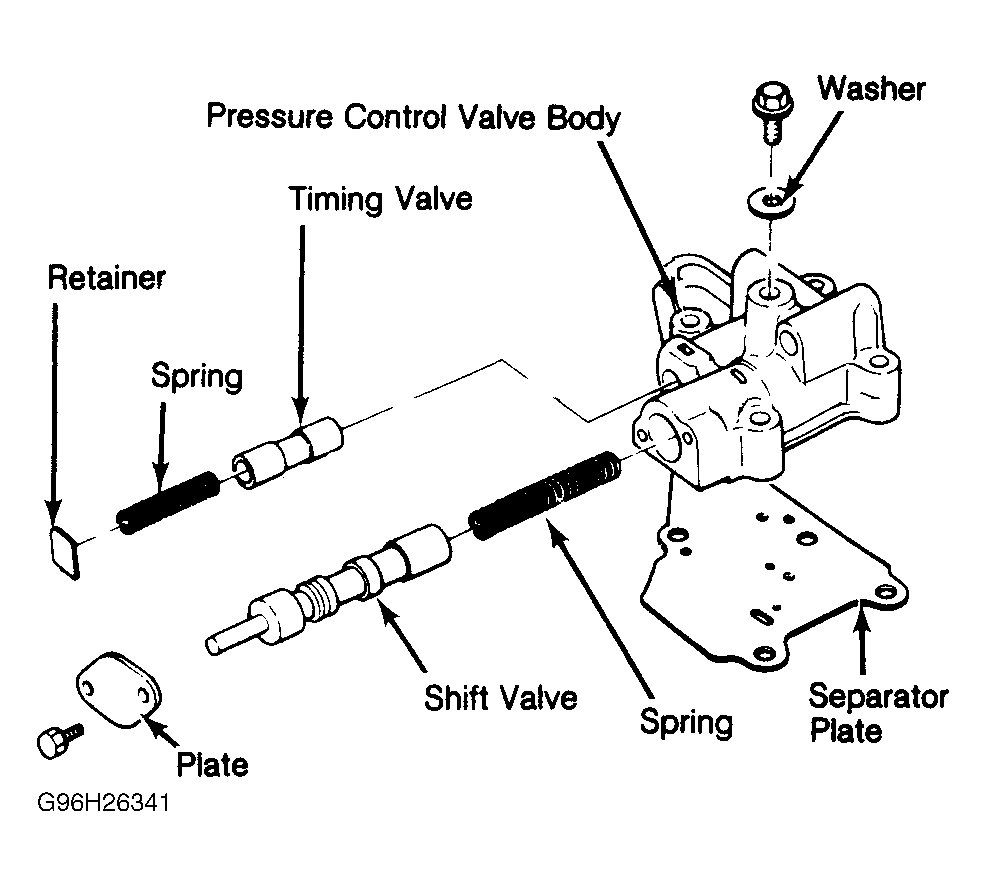

Fig 1: Exploded View Of Accord Lock-Up Valve

Courtesy of AMERICAN HONDA MOTOR CO., INC.
