Vacuum Hose Diagram(S)

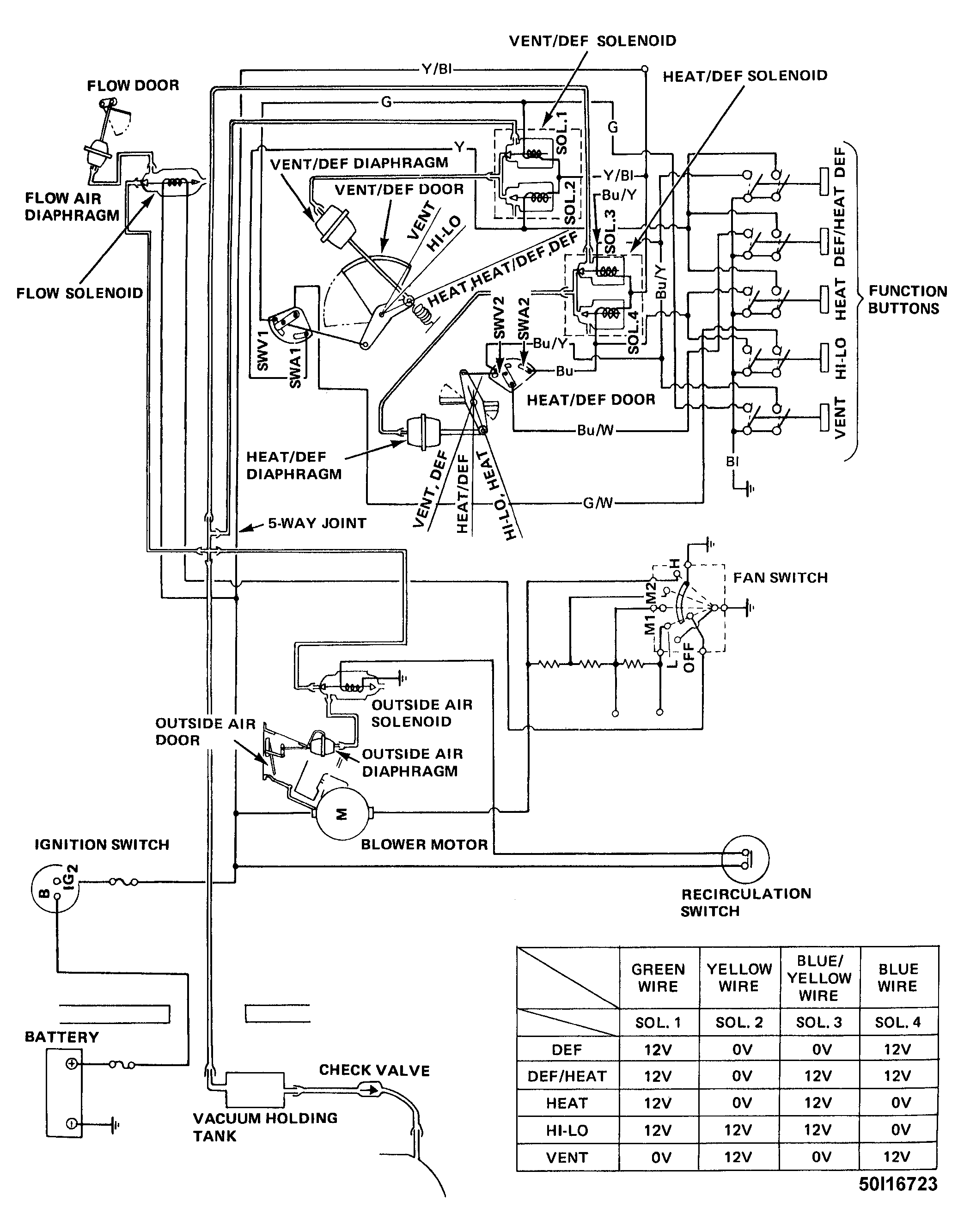

Fig 1: Accord Vacuum Diagram

G50I16723

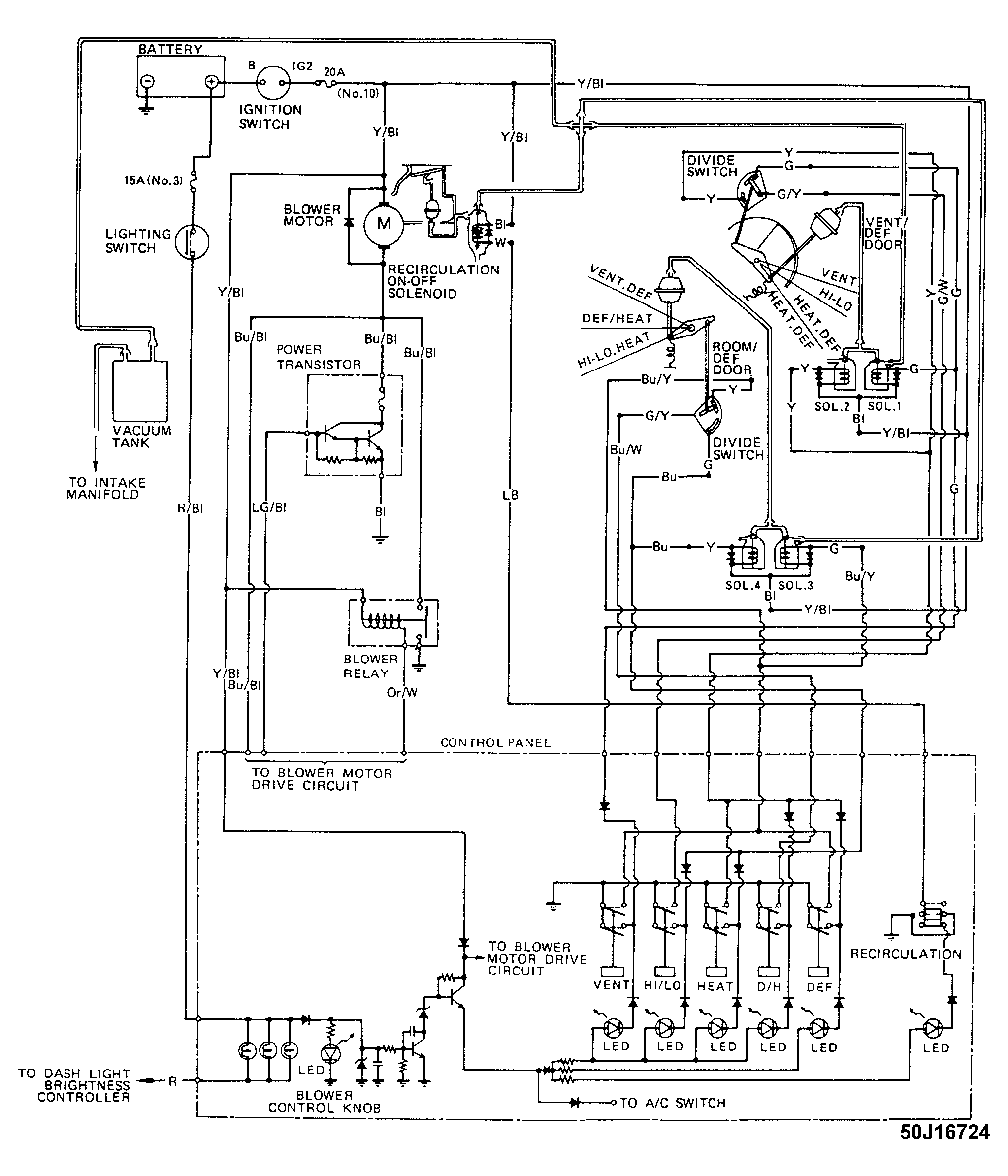

Fig 2: Prelude Vacuum Diagram

G50J16724
