Installation (1979-83 Accord & 1979-82 Prelude)

To install, reverse removal procedure, using care not to excessively bend or twist belt. If reinstalling old belt, install belt so same direction of rotation will be maintained. Adjust drive belts to proper tension.

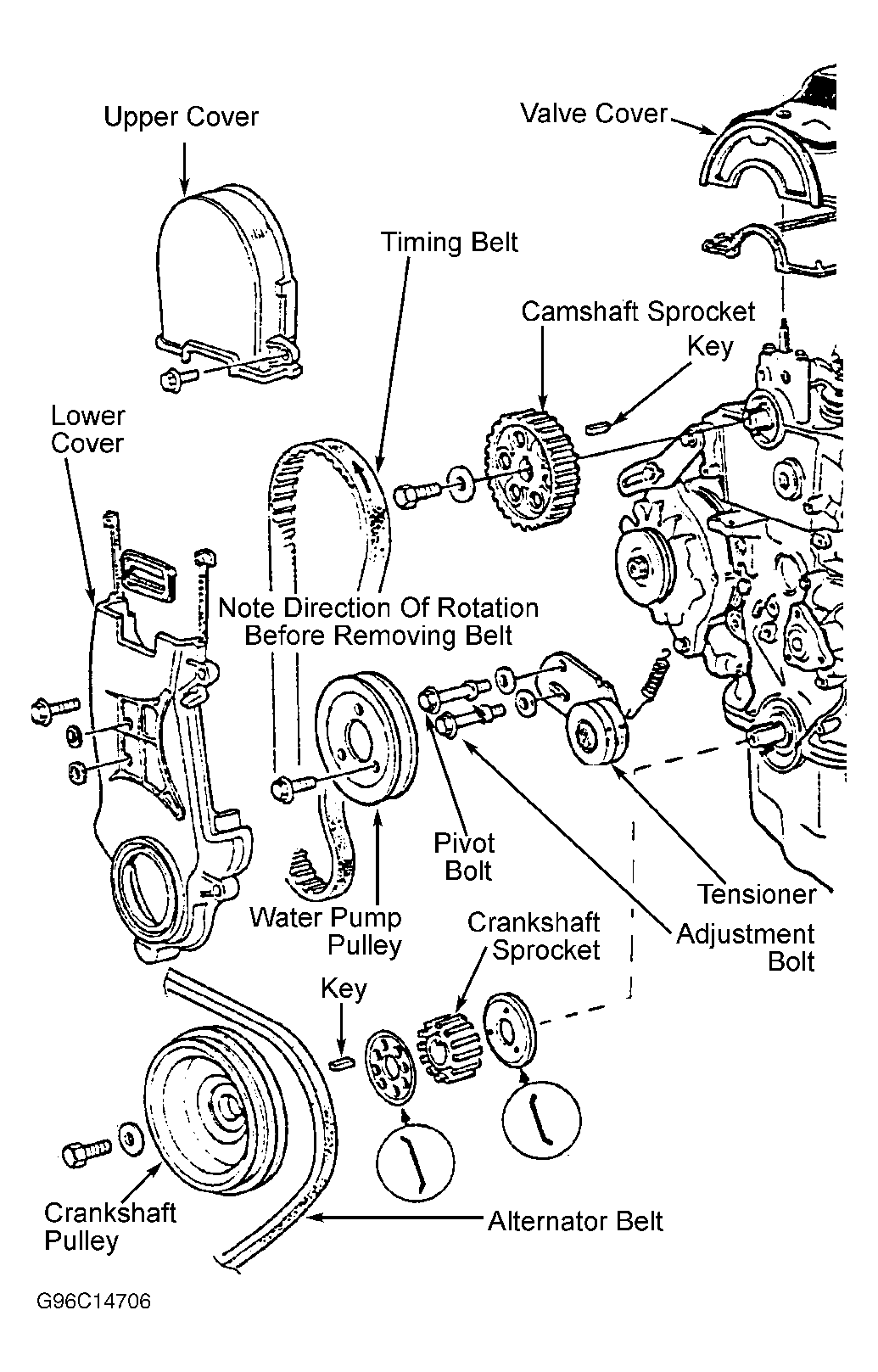

Fig 1: Exploded View Of Timing Belt & Components (1979-83 Accord & 1979-82 Prelude)
G96C14706Courtesy of AMERICAN HONDA MOTOR CO., INC.
