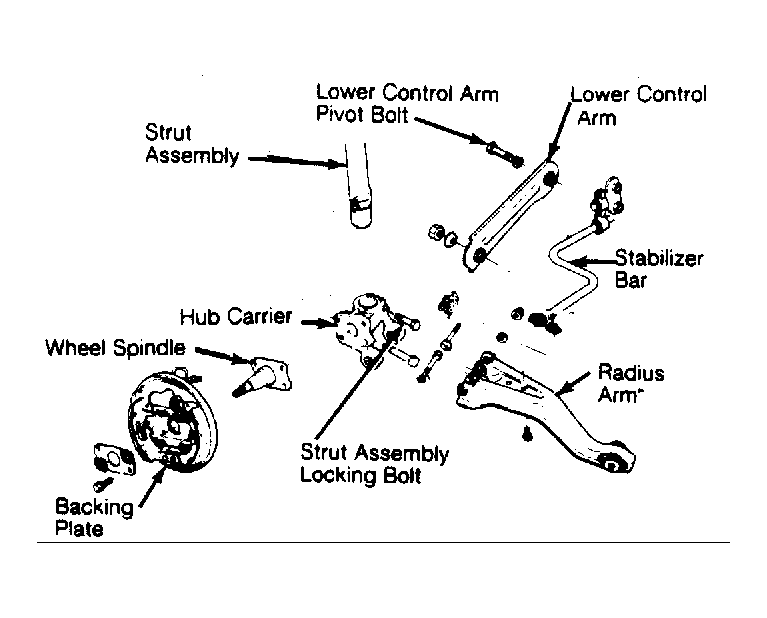

Wheel Hub Carrier: Removal
- Raise rear of vehicle and support with safety stands. Remove wheel assembly and brake drum. Disconnect parking brake cable. Disconnect and plug brake line. Remove backing plate assembly.
- Remove stabilizer bar on 1500S. Remove radius arm bolts and remove radius arm. Remove strut assembly locking bolt and separate hub carrier. Remove hub carrier bolt and remove hub carrier.
