Steering Lock & Ignition Switch: Installation

Insert new ignition switch. Hand tighten new shear bolts. Check switch operation at this time. Tighten shear bolts. Reconnect switch electrical leads.

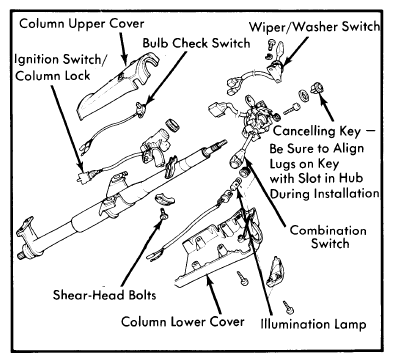

Fig 1: Disassembled View Of Upper Column Components - Accord Shown; Others Similar

Courtesy of AMERICAN HONDA MOTOR CO., INC.
