2nd Brake Solenoid (Shift Solenoid "B")

The PCM controls transaxle shifting by delivering an output signal to operate solenoid. Solenoid is located on transaxle valve body. See Figure. 2nd brake solenoid controls delivery of line pressure to 1-2 shift valve.

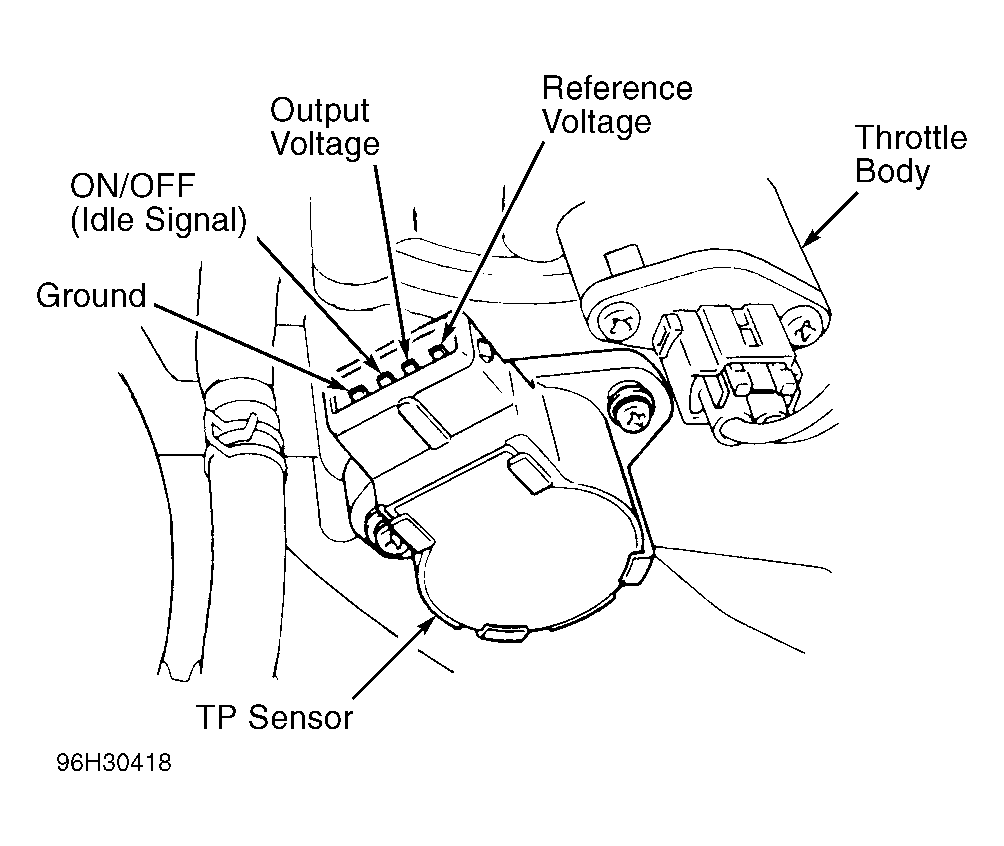

Fig 1: Identifying Throttle Position (TP) Sensor Terminals

Courtesy of SUZUKI OF AMERICA CORP.

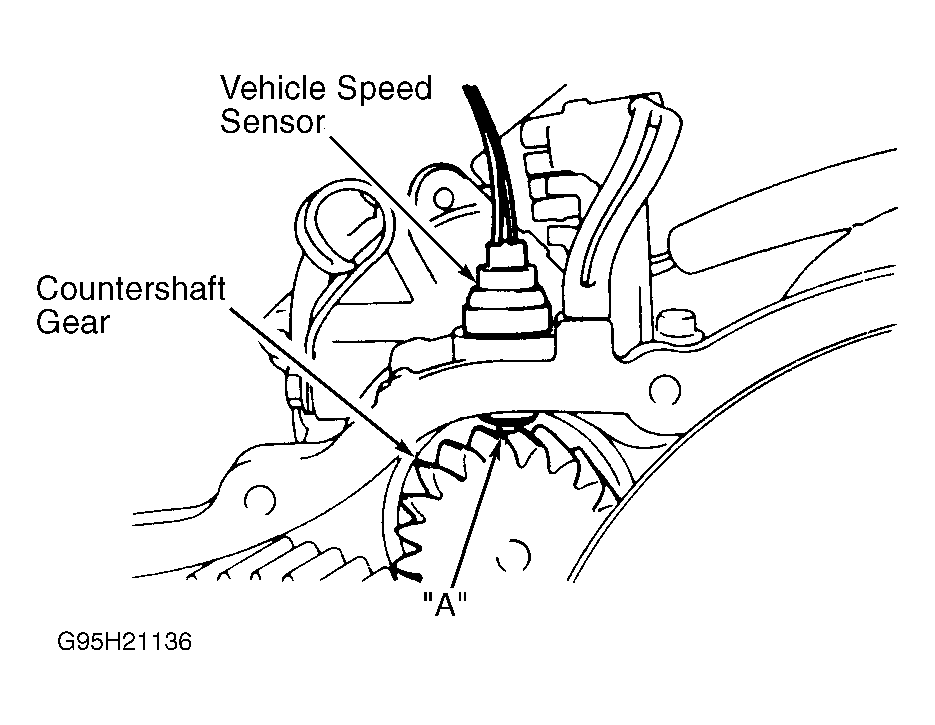

Fig 2: Identifying Vehicle Speed Sensor (VSS)

Courtesy of SUZUKI OF AMERICA CORP.
