Table C - Air Bag Warning Lamp Does Not Come On (2 Of 3)

NOTE: Test numbers refer to specific step numbers on diagnostic chart and may skip step numbers. No information has been left out. For circuit number identification, see WIRING DIAGRAM  .

1. 8)  This test checks if open is due to bad bulb.
2. 10)  This test isolates open in warning lamp circuit.
3. 13)  This test checks if power available to IPC power feed circuit.
4. 14)  This test checks for short from IPC power feed circuit to ground.
5. 15)  This test checks if short to ground due to wiring or internal to IPC.
6. 19)  This test checks if malfunction in IPC connector.
7. 21)  This test checks if malfunction due to open power feed circuit from IG-COIL meter fuse.

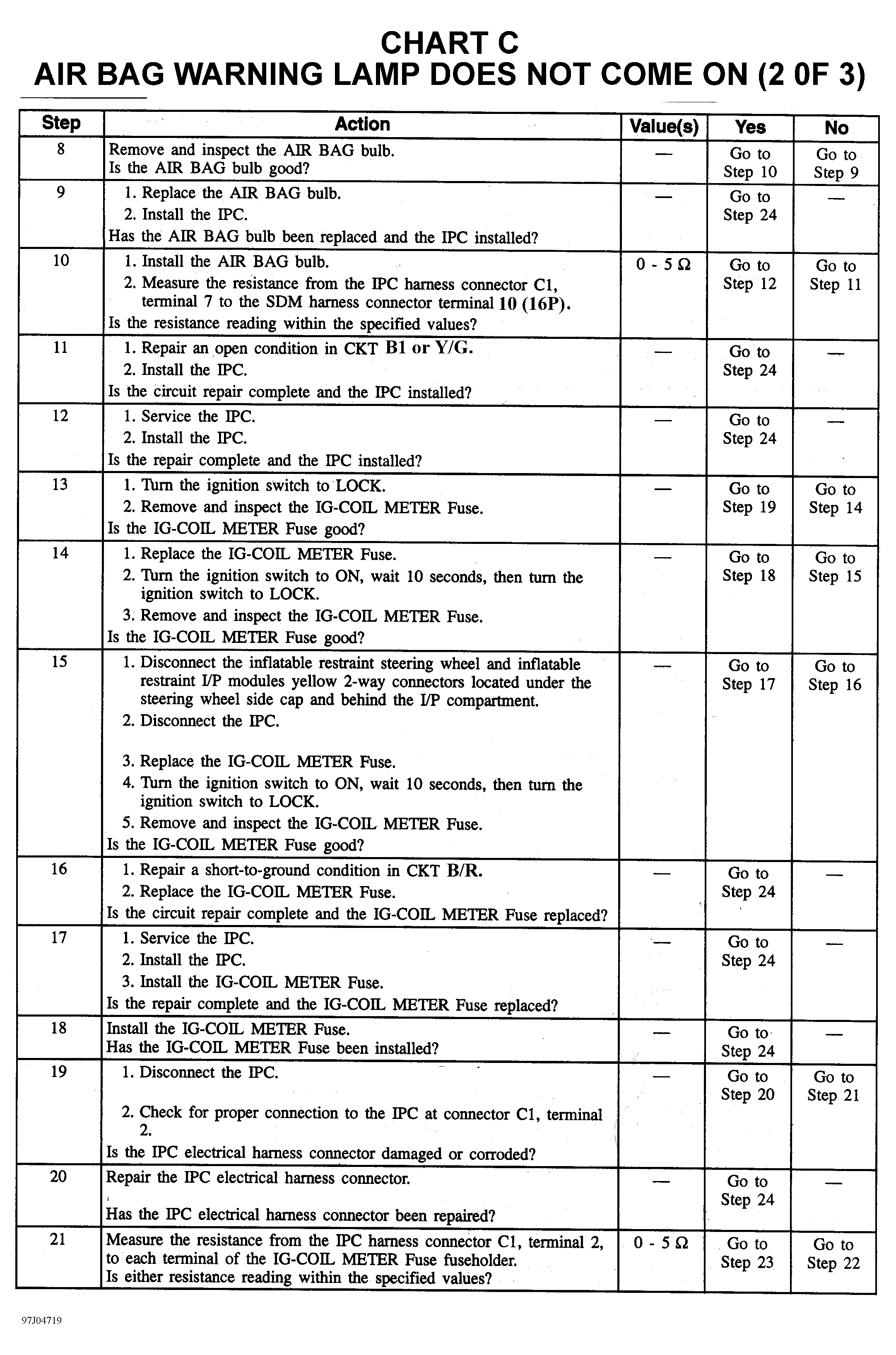

Fig 1: Table C - Air Bag Warning Lamp Does Not Come On (2 Of 3)
