Table B - Air Bag Warning Lamp Comes On Steady (3 Of 3)

NOTE: Test numbers refer to specific step numbers on diagnostic chart and may skip step numbers. No information has been left out. For circuit number identification, see WIRING DIAGRAM  .

1. 20)  This test checks for disconnected SDM
2. 26)  This test checks for open in IGNITION 1 circuit.

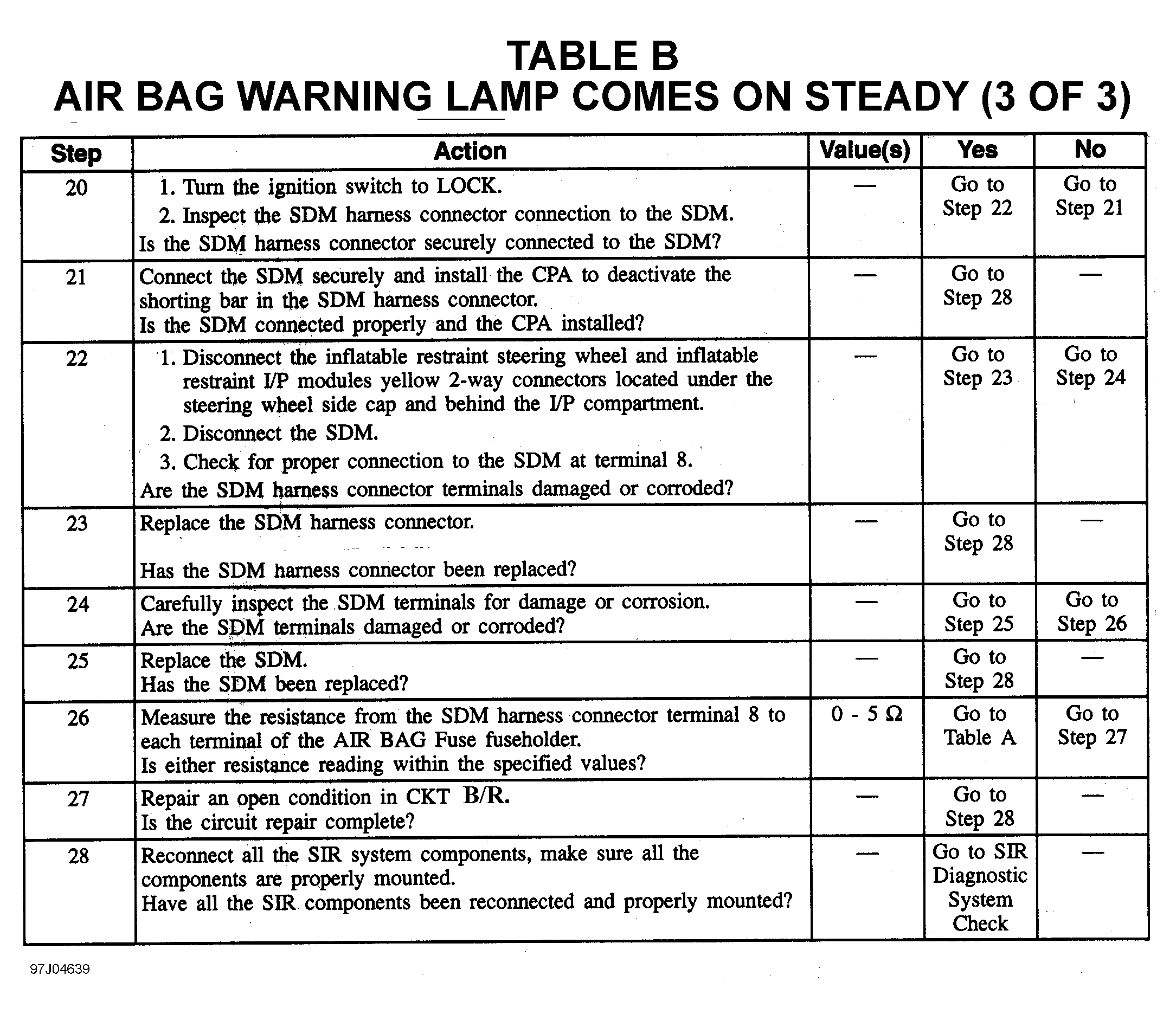

Fig 1: Table B - Air Bag Warning Lamp Comes On Steady (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
