Table B - Air Bag Warning Lamp Comes On Steady (2 Of 3)

NOTE: Test numbers refer to specific step numbers on diagnostic chart and may skip step numbers. No information has been left out. For circuit number identification, see WIRING DIAGRAM  .

1. 7)  This test checks for damaged shorting bar.
2. 9)  This test checks if malfunction is short to ground in CKT B1 or Y/G.
3. 10)  This test checks for short between CKT B1 or Y/G and CKT B.
4. 14)  An open AIR BAG fuse would cause AIR BAG warning lamp to come on steady.
5. 15)  This test checks is short to ground caused AIR BAG fuse to open.
6. 16)  This test checks if short to ground is due to short in wiring or internal to SDM.

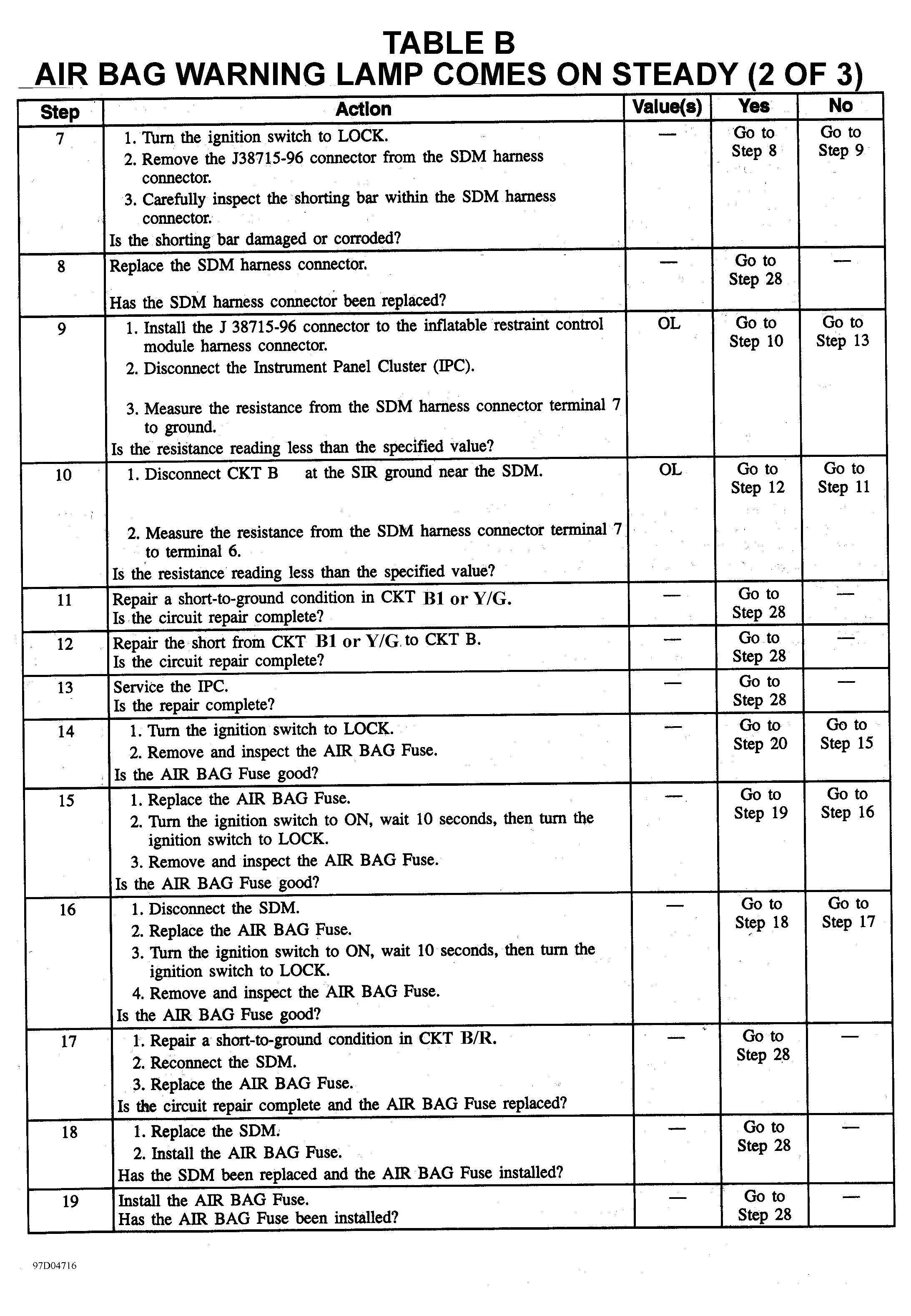

Fig 1: Table B - Air Bag Warning Lamp Comes On Steady (2 Of 3)

Courtesy of GENERAL MOTORS CORP.
