Geo
>>
1997
>>
Tracker Base, 4D Utility, 4WD, Standard
>>
Repair and Diagnosis (Single Page)
>>
Restraints
>>
Air Bag, SRS
>>
Air Bag Restraint System
>>
Diagnostic Charts
>>
DTC B1071 - SDM Internal Failure
>>
Diagnostic Aids
Diagnostic Aids
DTC B1071 indicates a fault within the SDM. Replace SDM if DTC1071 sets in current or history.

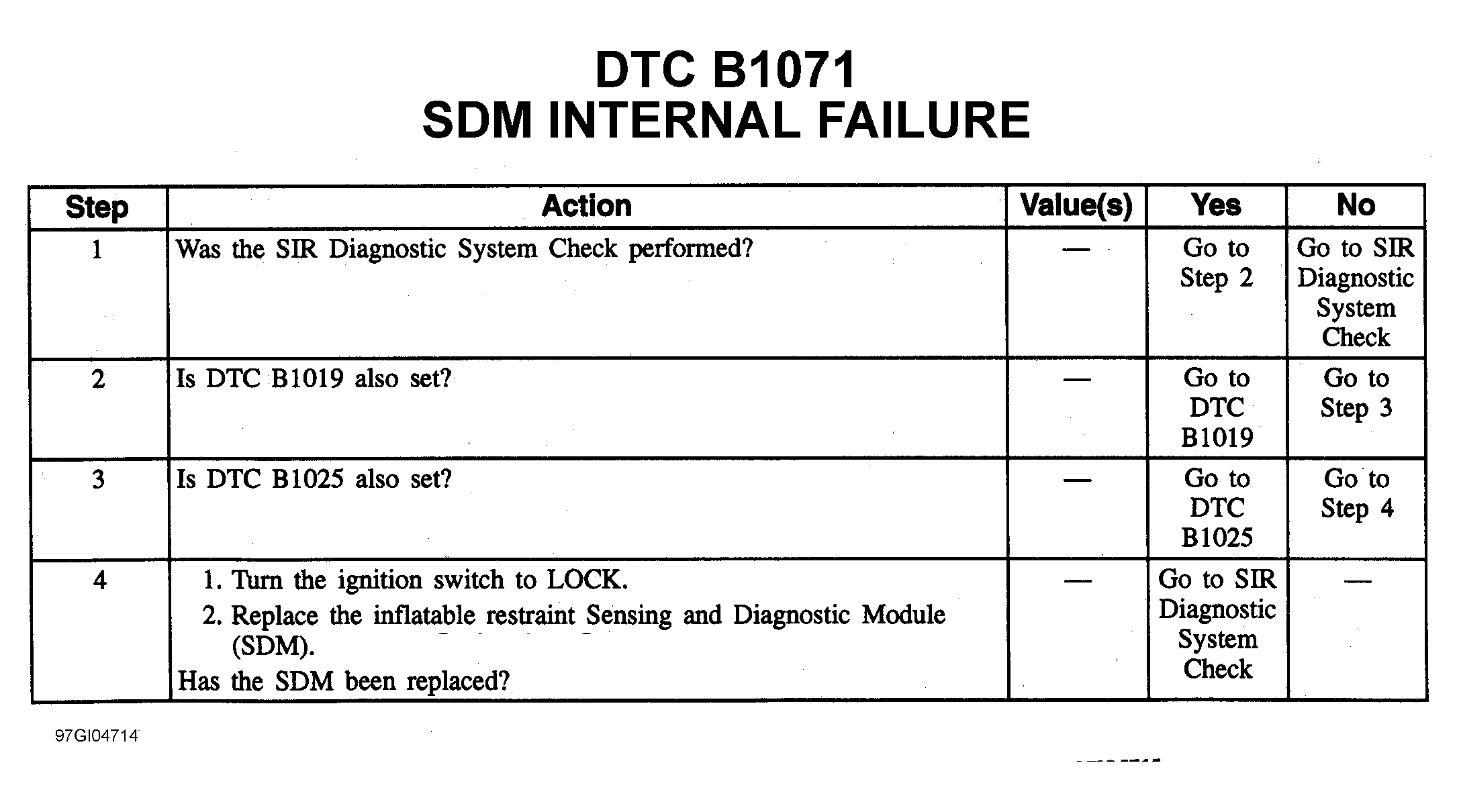

Fig 1: DTC B1071 - SDM Internal Failure
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
