Diagnostic Aids

Refer to TABLE B and TABLE C to diagnose warning lamp circuit malfunctions

NOTE: For circuit number identification, see WIRING DIAGRAM  . When SDM is configured for a serial data controlled warning lamp (smart cluster), DTC B1061 will set.

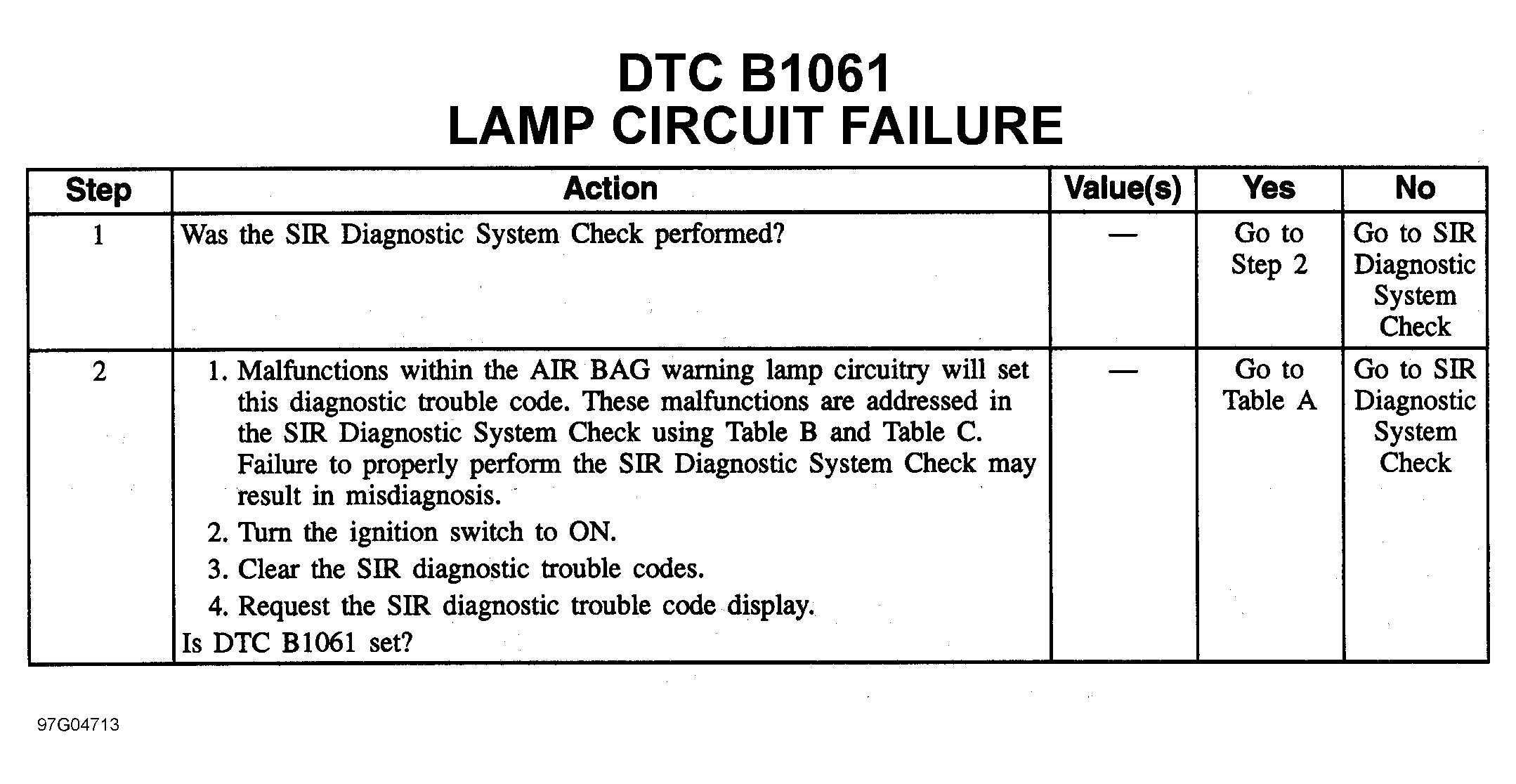

Fig 1: DTC B1061 - Lamp Circuit Failure
G97G04713Courtesy of GENERAL MOTORS CORP.
