DTC B1026 - DRIVER DEPLOYMENT LOOP OPEN (2 of 3)

NOTE: Test numbers refer to specific step numbers on diagnostic chart and may skip step numbers. No information has been left out. For circuit number identification, see WIRING DIAGRAM  .

1. 10)  This test isolates malfunction to one side of air bag module Yellow  2-way connector located near base of steering column.
2. 11)  This test checks if malfunction is in air bag module coil or air bag module

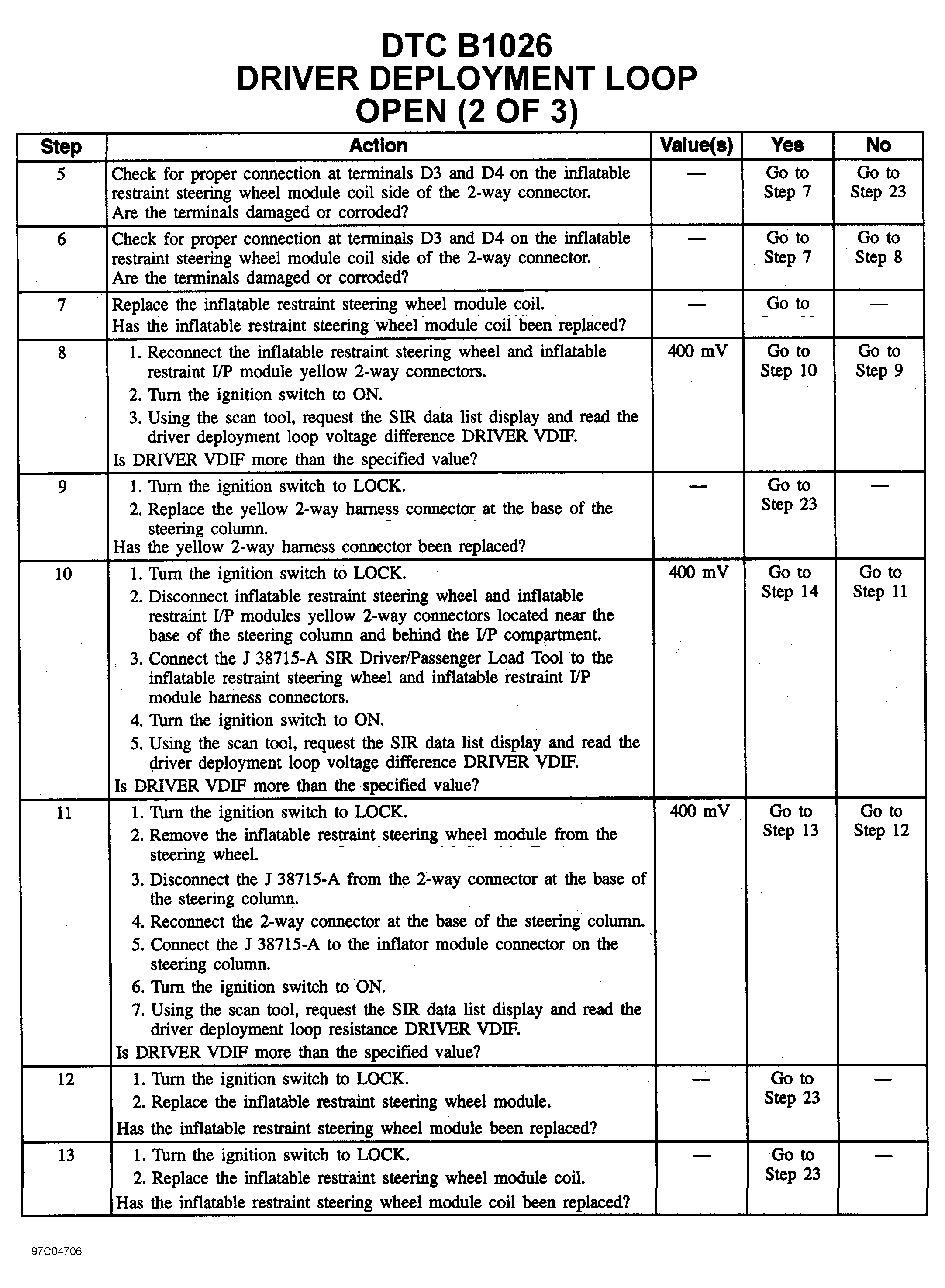

Fig 1: DTC B1026 - Driver Deployment Loop Open (2 Of 3)

Courtesy of GENERAL MOTORS CORP.
