DTC B1018 - PASSENGER DEPLOYMENT LOOP SHORT TO GROUND (2 of 2)

NOTE: Test numbers refer to specific step numbers on diagnostic chart and may skip step numbers. No information has been left out. For circuit number identification, see WIRING DIAGRAM  .

1. 5)  This test checks if malfunction is in CKT Y/R.
2. 7)  This test checks if malfunction is in CKT Y.

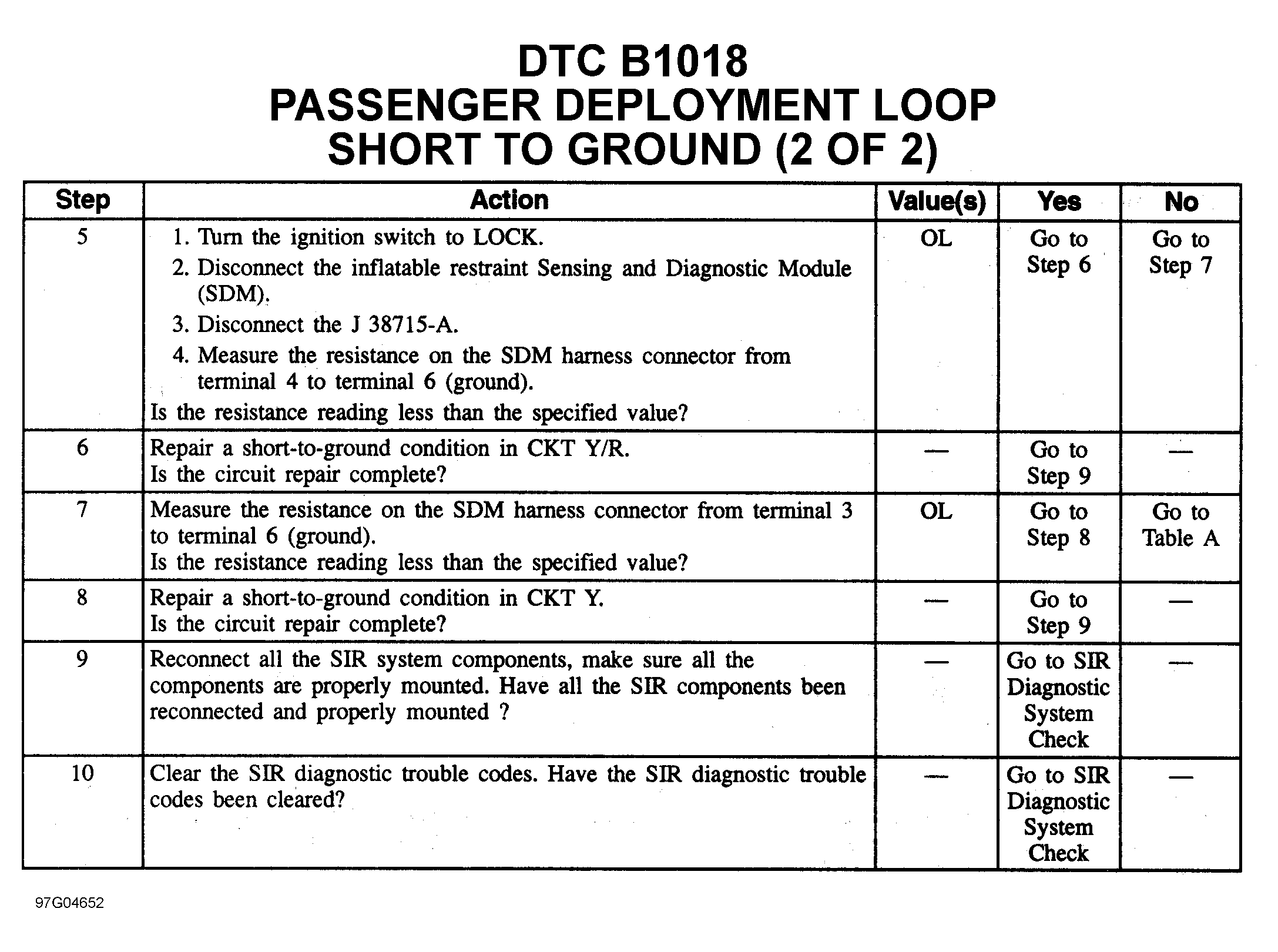

Fig 1: DTC B1018 - Passenger Deployment Loop Short To Ground (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
