DTC B1017 - PASSENGER DEPLOYMENT LOOP OPEN (3 of 3)

NOTE: Test numbers refer to specific step numbers on diagnostic chart and may skip step numbers. No information has been left out. For circuit number identification, see WIRING DIAGRAM  . This test checks if malfunction is in CKT Y.

1. 19)  This test checks if malfunction is in CKT Y.

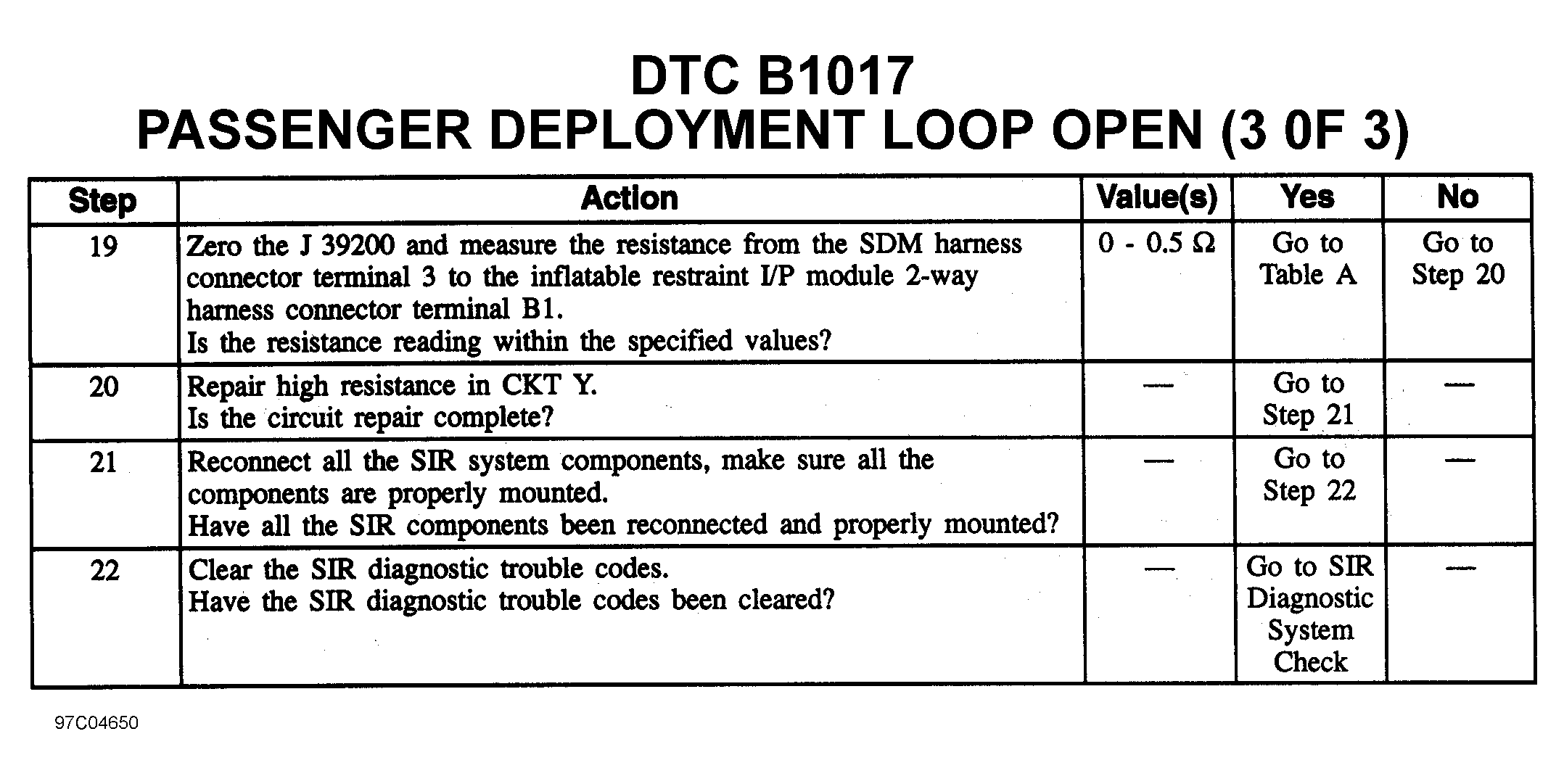

Fig 1: DTC B1017 - Passenger Deployment Loop Open (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
