DTC B1017 - PASSENGER DEPLOYMENT LOOP OPEN (2 of 3)

NOTE: Test numbers refer to specific step numbers on diagnostic chart and may skip step numbers. No information has been left out. For circuit number identification, see WIRING DIAGRAM  .

1. 10)  This test isolates malfunction to one side of air bag instrument panel module Yellow  2-way connector.
2. 12)  This test checks for proper contact and/or corrosion of SDM connector.
3. 17)  This test checks if malfunction is in CKT Y/R.

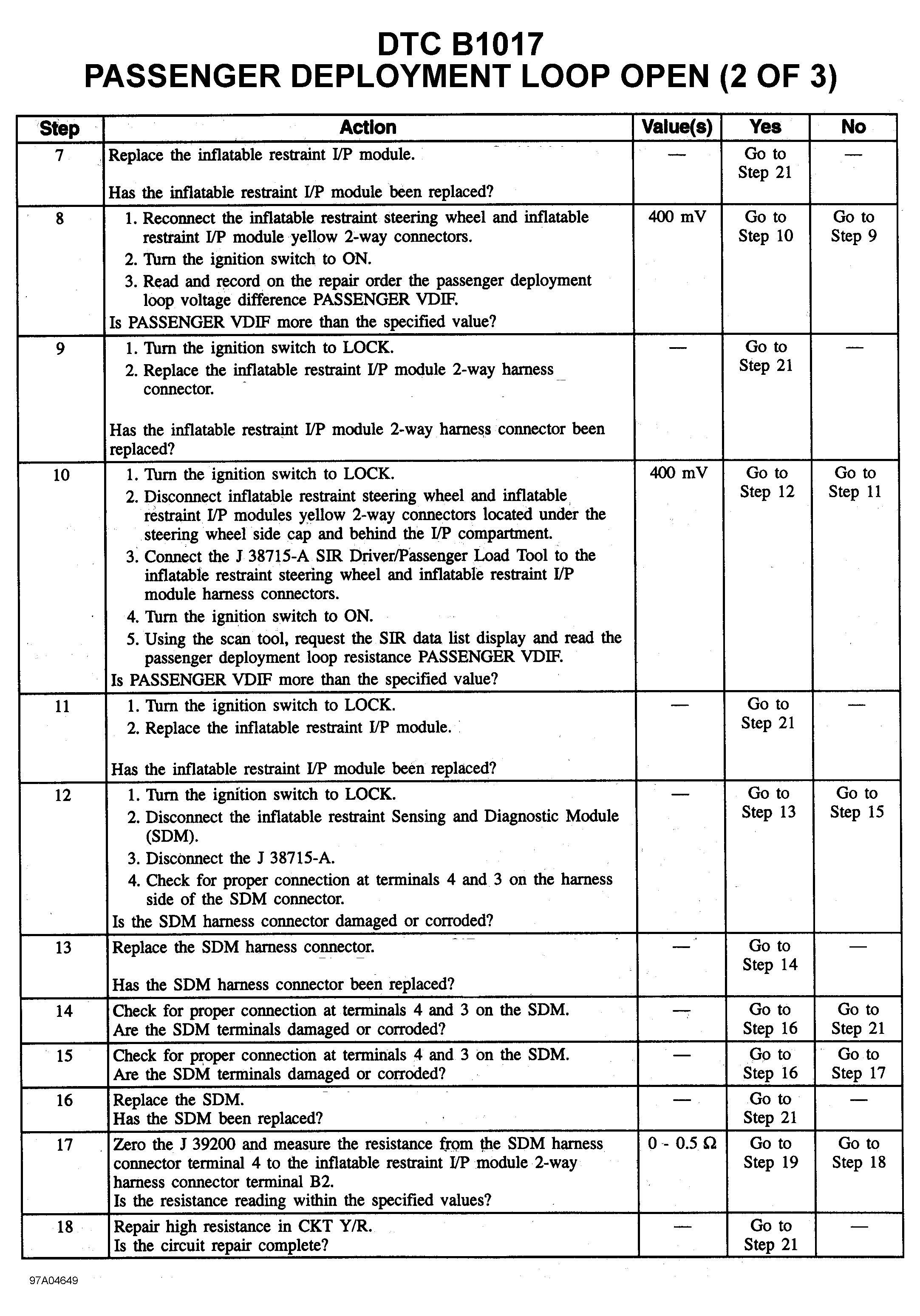

Fig 1: DTC B1017 - Passenger Deployment Loop Open (2 Of 3)

Courtesy of GENERAL MOTORS CORP.
