DTC B1016 - PASSENGER DEPLOYMENT LOOP RESISTANCE LOW (2 of 2)

NOTE: Test numbers refer to specific step numbers on diagnostic chart and may skip step numbers. No information has been left out. For circuit number identification, see WIRING DIAGRAM  .

1. 6)  This test isolates malfunction to one side of air bag instrument panel module Yellow  2-way connector.
2. 8)  This test checks for short from CKT Y/R to CKT Y.
3. 10)  This test checks for short from CKT Y/R to CKT G.

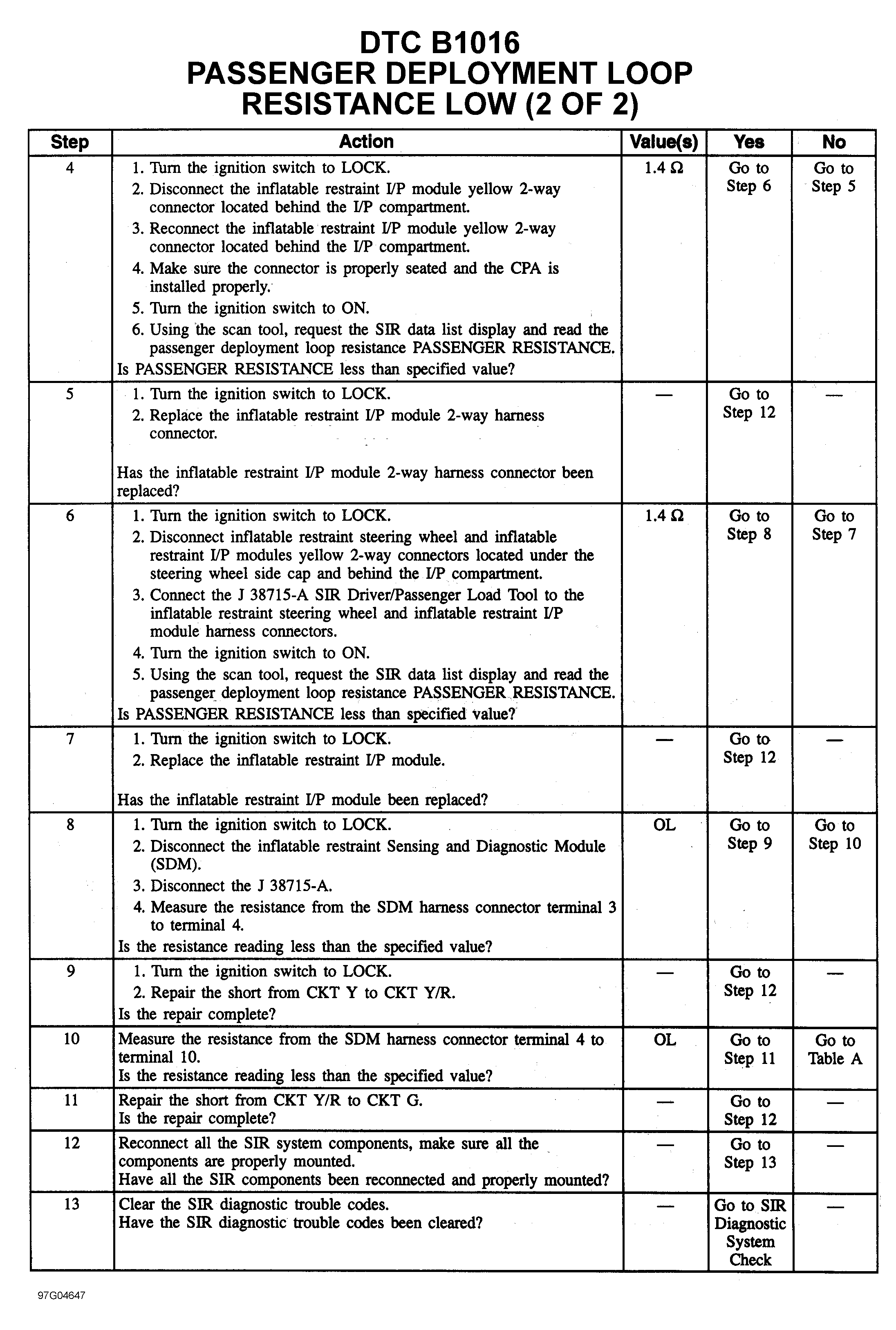

Fig 1: DTC B1016 - Passenger Deployment Loop Resistance Low (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
