DTC B1015 - PASSENGER DEPLOYMENT LOOP RESISTANCE HIGH (2 of 2)

NOTE: Test numbers refer to specific step numbers on diagnostic chart and may skip step numbers. No information has been left out. For circuit number identification, see WIRING DIAGRAM  .

1. 17)  This test checks if malfunction is in CKT Y/R.
2. 19)  This test checks if malfunction is in CKT Y.

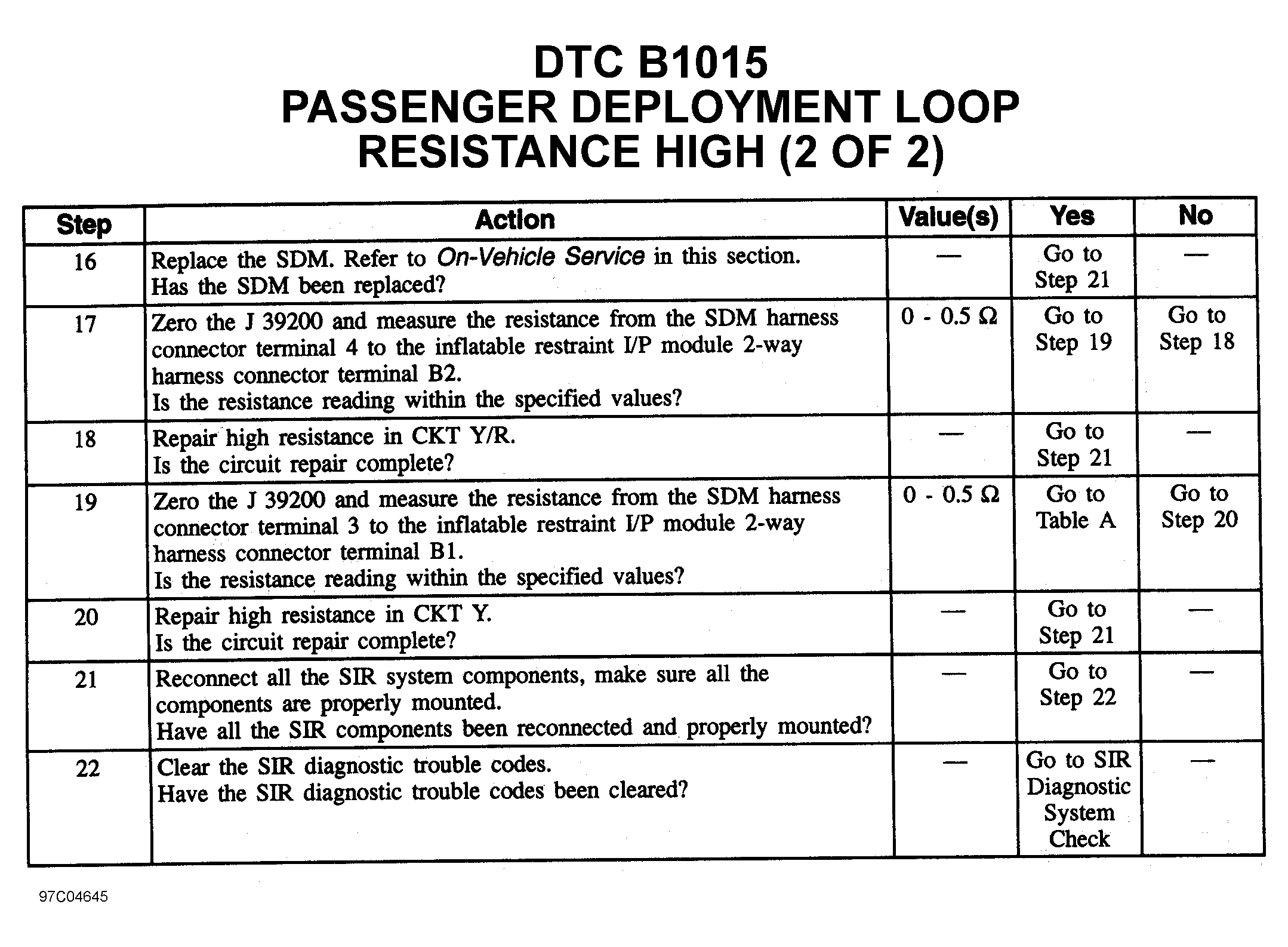

Fig 1: DTC B1015 - Passenger Deployment Loop Resistance High (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
