Wheel Bearing & Hub: Installation

Using Wheel Bearing Socket (J-37763 ), install bearing lock nut or spindle nut and tighten to 155 ft. lbs. (210 N.m). To complete installation, reverse removal procedures. See TORQUE SPECIFICATIONS .

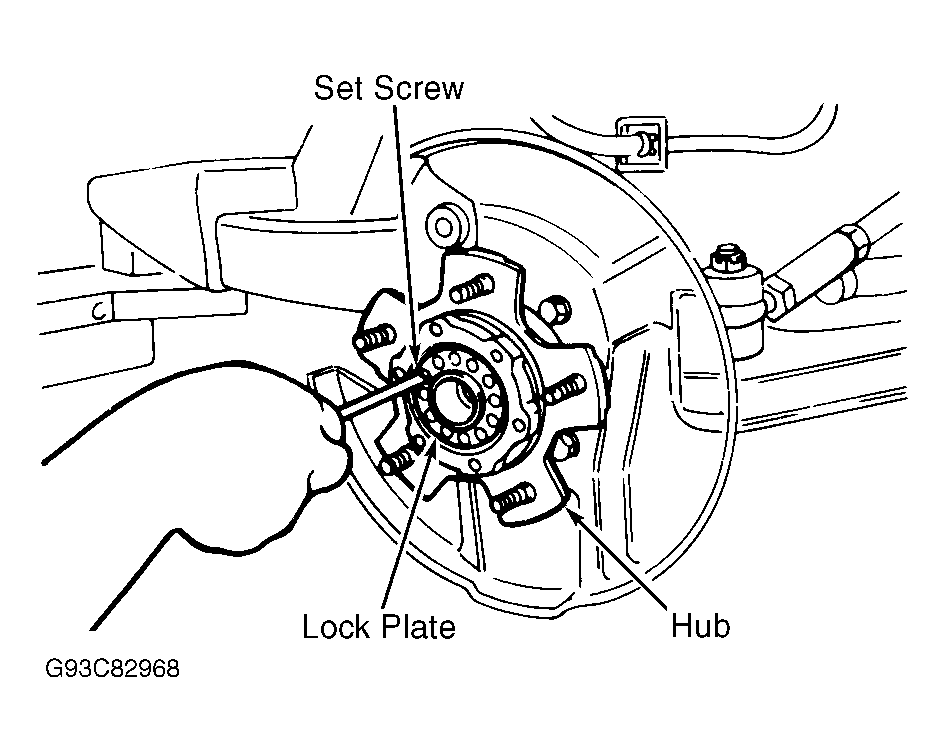

Fig 1: Removing/Installing Wheel Bearing Lock Plate Set Screw

Courtesy of GENERAL MOTORS CORP.
