Chart C - Air Bag Warning Lamp Does Not Come On

WARNING: To avoid air bag deployment and injury when trouble shooting system, only use test equipment specified in diagnostic charts. Under no circumstances should battery powered test equipment or test light be used. Carefully follow all instructions.

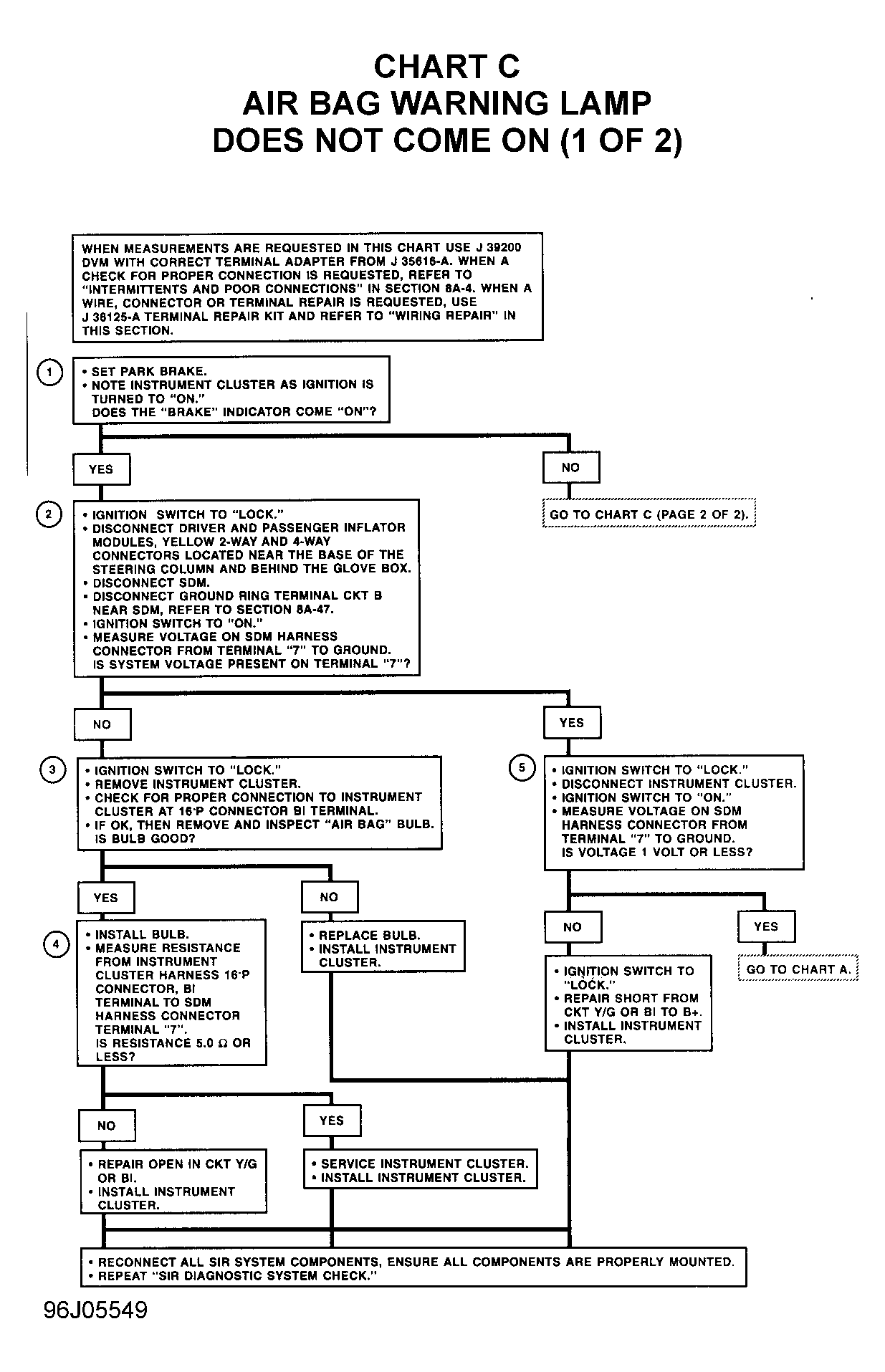

Fig 1: Chart C - Air Bag Warning Lamp Does Not Come On (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

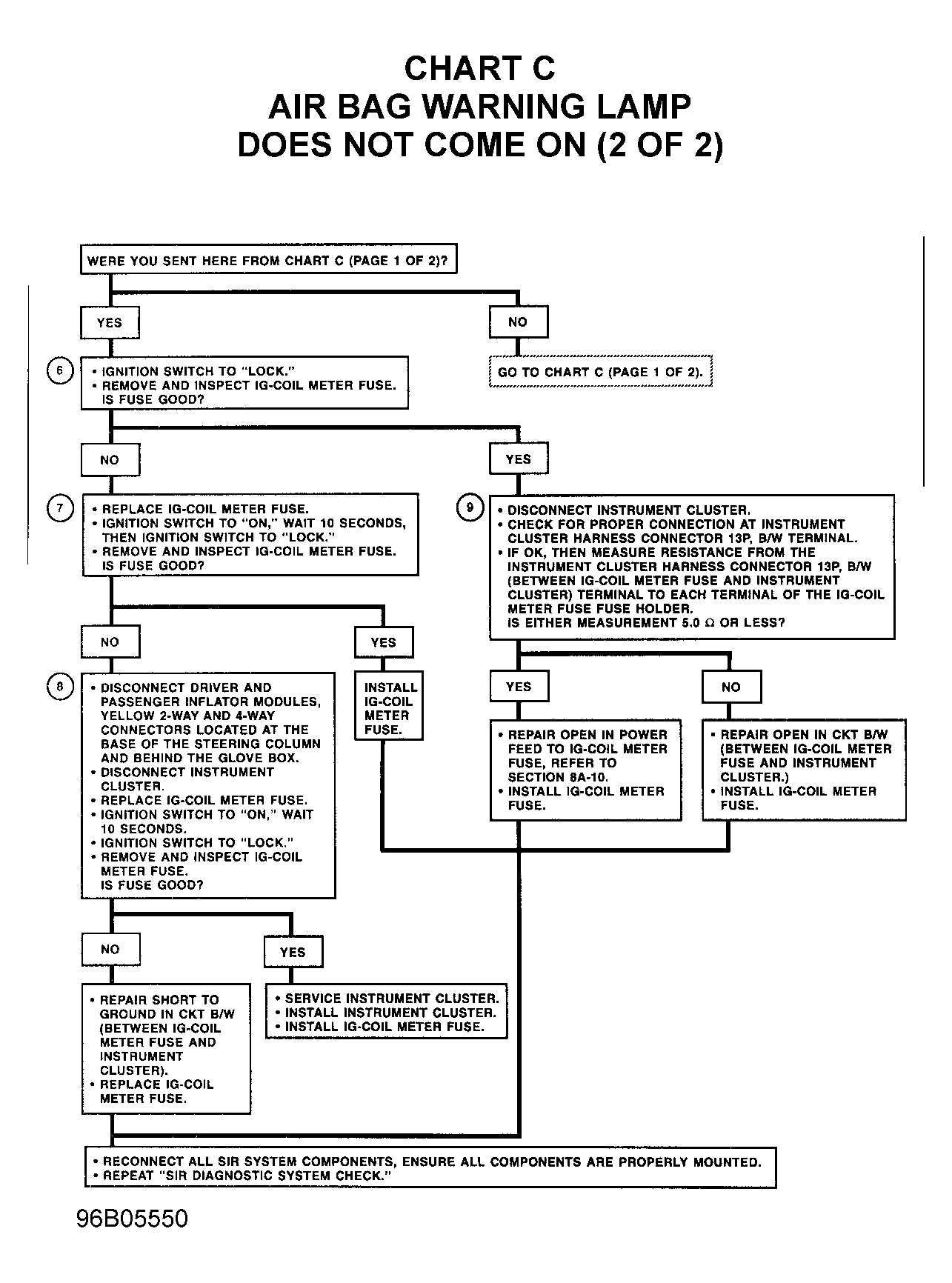

Fig 2: Chart C - Air Bag Warning Lamp Does Not Come On (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
