Diagnostic Aids

An intermittent malfunction may result from a mechanical part sticking, binding or slipping.

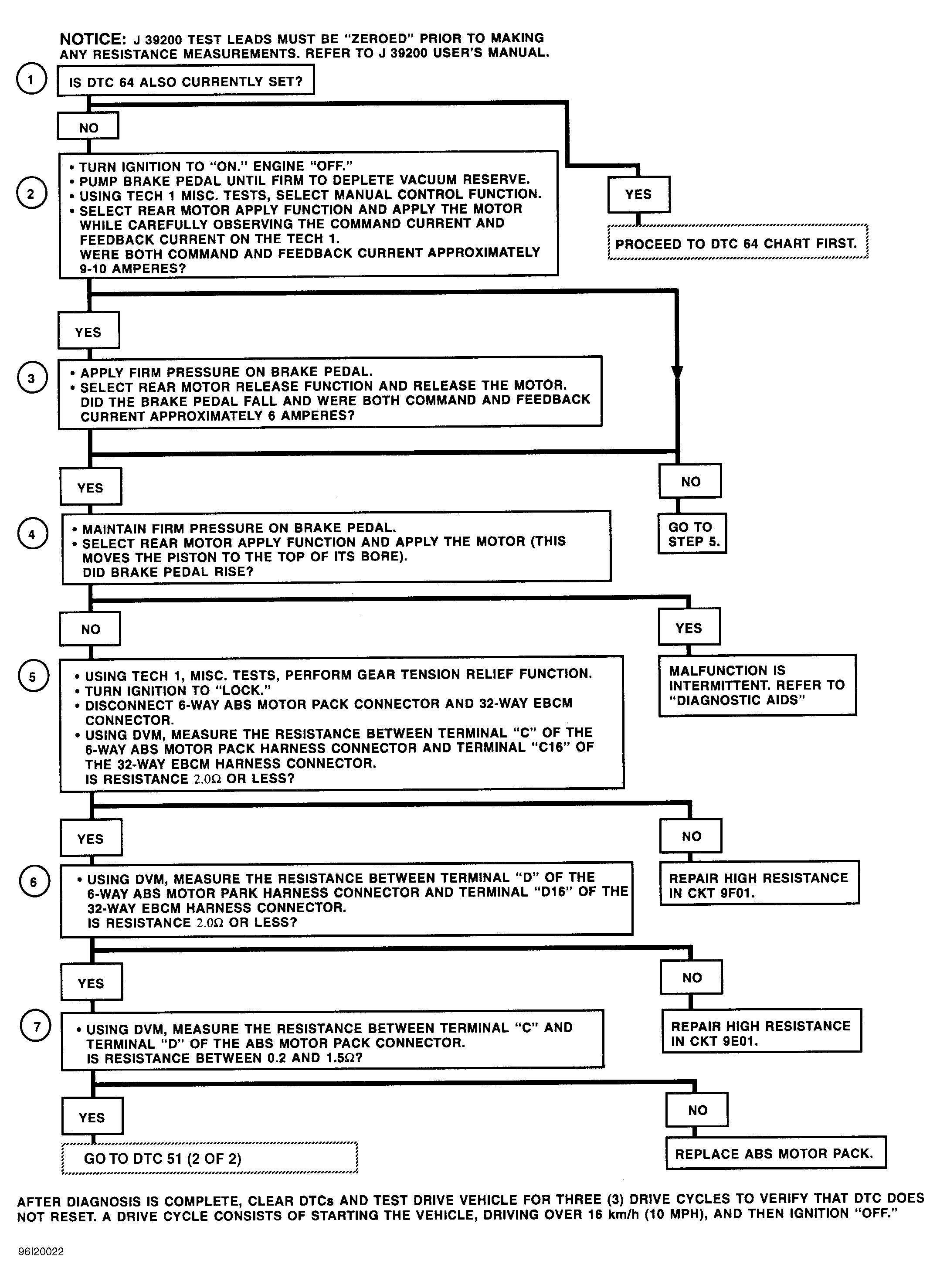

Fig 1: DTC 51, Flow Chart (1 OF 2)

Courtesy of GENERAL MOTORS CORP.

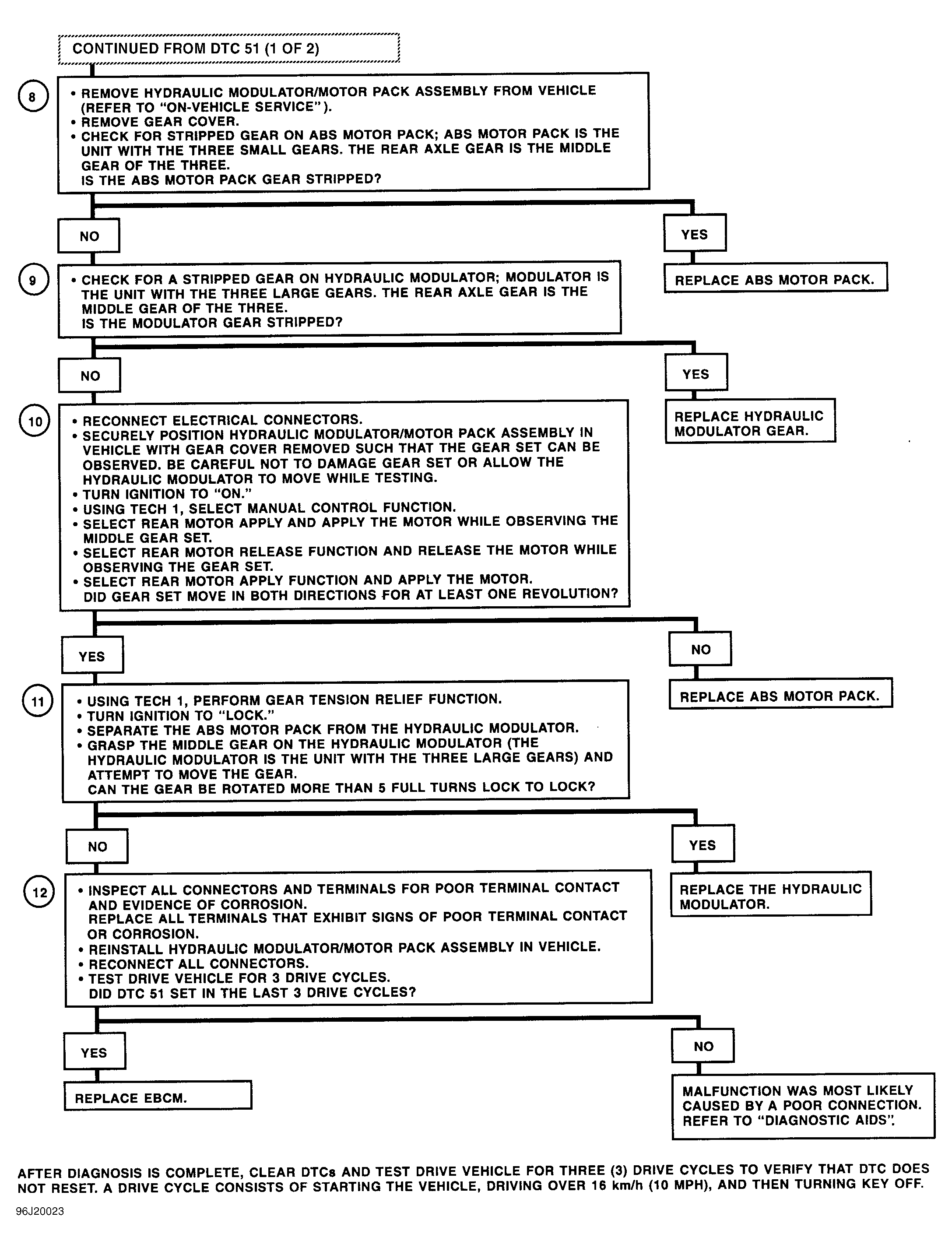

Fig 2: DTC 51, Flow Chart (2 OF 2)

Courtesy of GENERAL MOTORS CORP.
