Diagnostic Aids

An intermittent malfunction may result from a mechanical part sticking, binding or slipping.

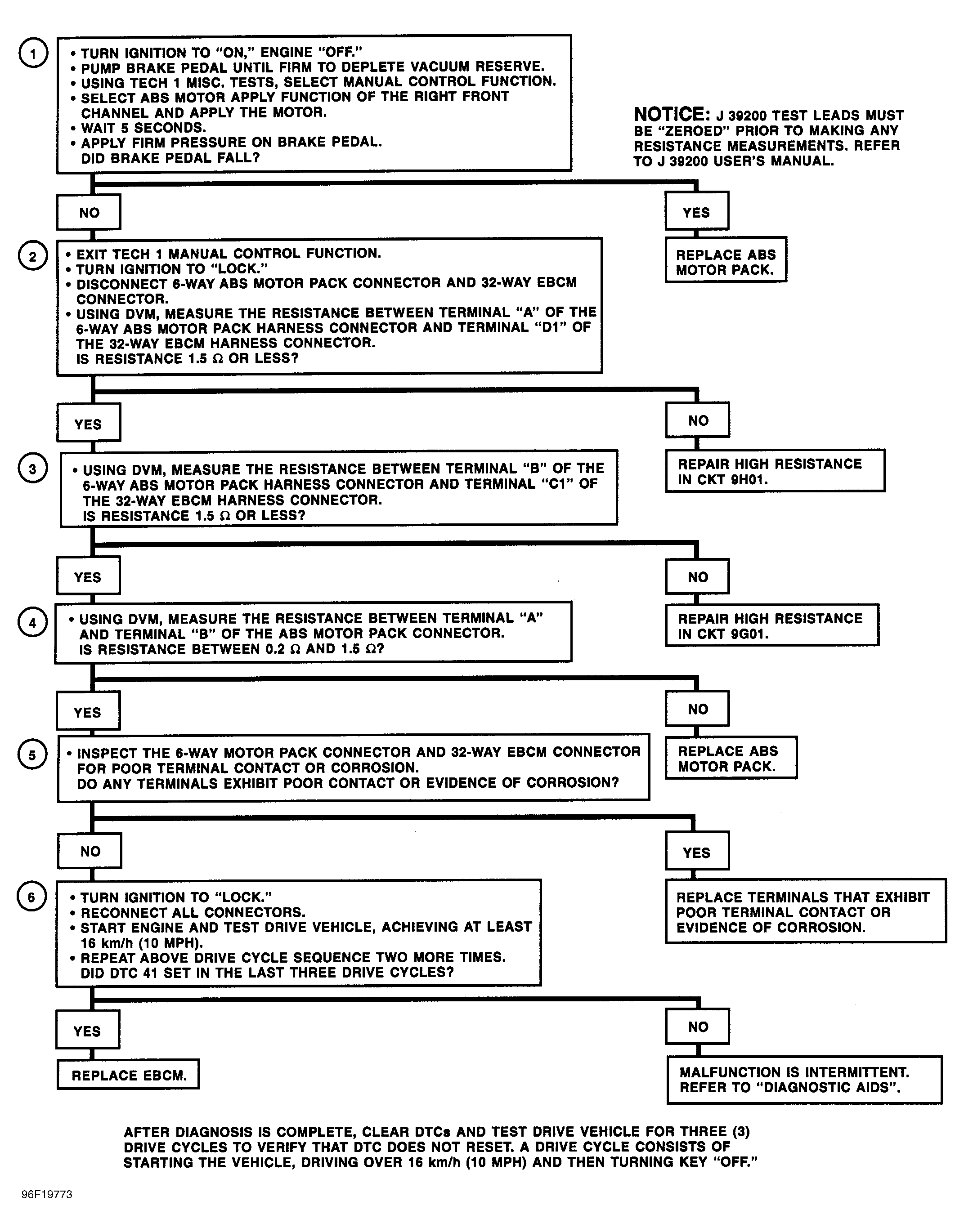

Fig 1: DTC 41, Flow Chart

G96F19773

Courtesy of GENERAL MOTORS CORP.
