Instrument Cluster

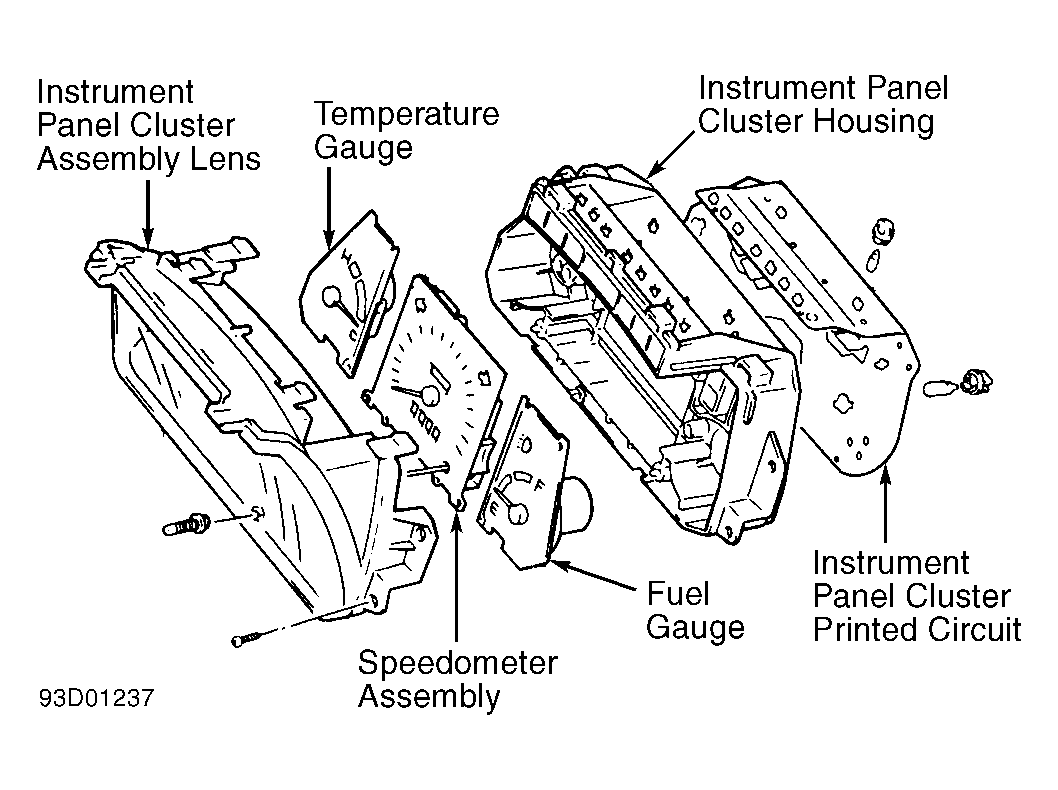

Disconnect negative battery cable. Remove 4 retaining screws from instrument cluster bezel/shroud and remove bezel/shroud. Remove 4 retaining screws from instrument cluster, and pull cluster outward. Disconnect electrical connectors and speedometer cable from rear of cluster. Remove instrument cluster. To install, reverse removal procedure. See Fig 1 .
