DTC 63 Or DTC P0758: No. 2 Solenoid

WARNING: This page is about a different variant/trim than selected.

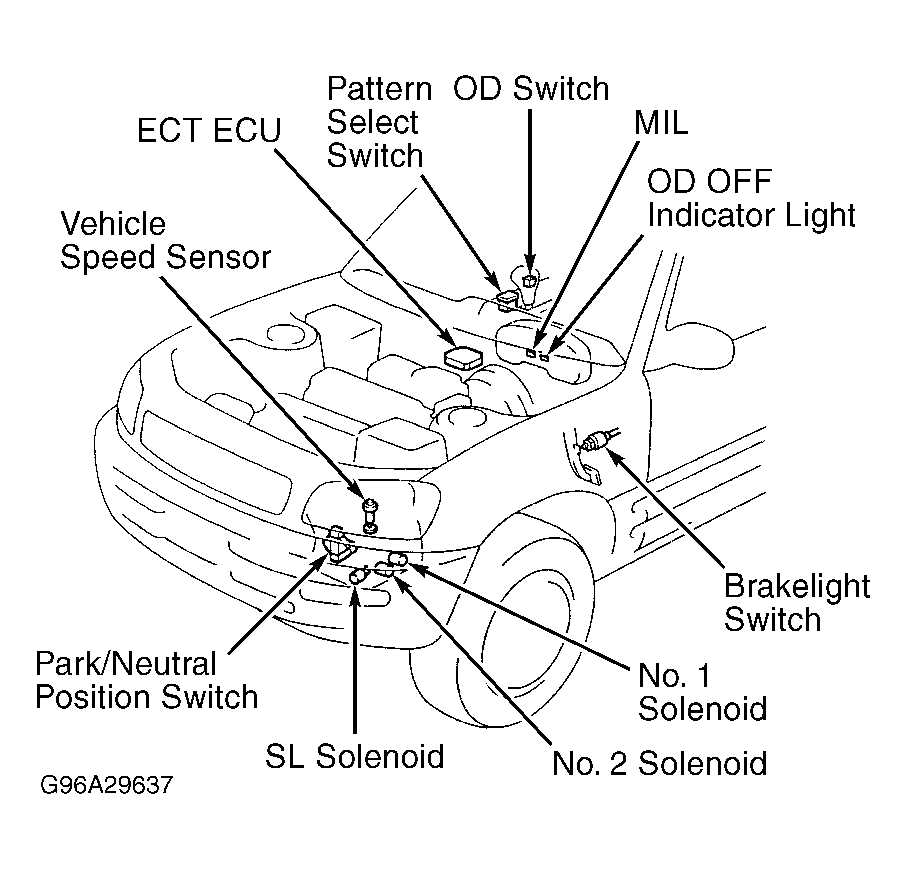

  1. Access ECT ECU. See Figure- Figure . Using ohmmeter, check resistance between terminal S2 and body ground with connector removed from ECT ECU. See Figure.
  2. Resistance should be 11-15 ohms. If resistance is okay, replace ECT ECU. If resistance is not within specification, remove transaxle oil pan. Disconnect electrical connector at No. 2 solenoid. See WIRING DIAGRAMS .
  3. Check resistance between electrical terminal on No. 2 solenoid and body ground. Replace No. 2 solenoid if resistance is not 11-15 ohms. If resistance is 11-15 ohms, inspect and repair wiring between No. 2 solenoid and ECT ECU.
