8-Valve Federal
TORQUE SPECIFICATIONS - 8-VALVE FEDERAL
| Application |
Ft. Lbs. (N.m) |
| A/C Compressor Bolt |
| 8-mm Bolt |
21 (29) |
| 10-mm Bolt |
33 (45) |
| Camshaft Sprocket Retaining Bolt |
44 (60) |
| Connecting Rod Nut |
26 (35) |
| Crankshaft Pulley Bolt |
12 (16) |
| Crankshaft Sprocket Bolt |
81 (110) |

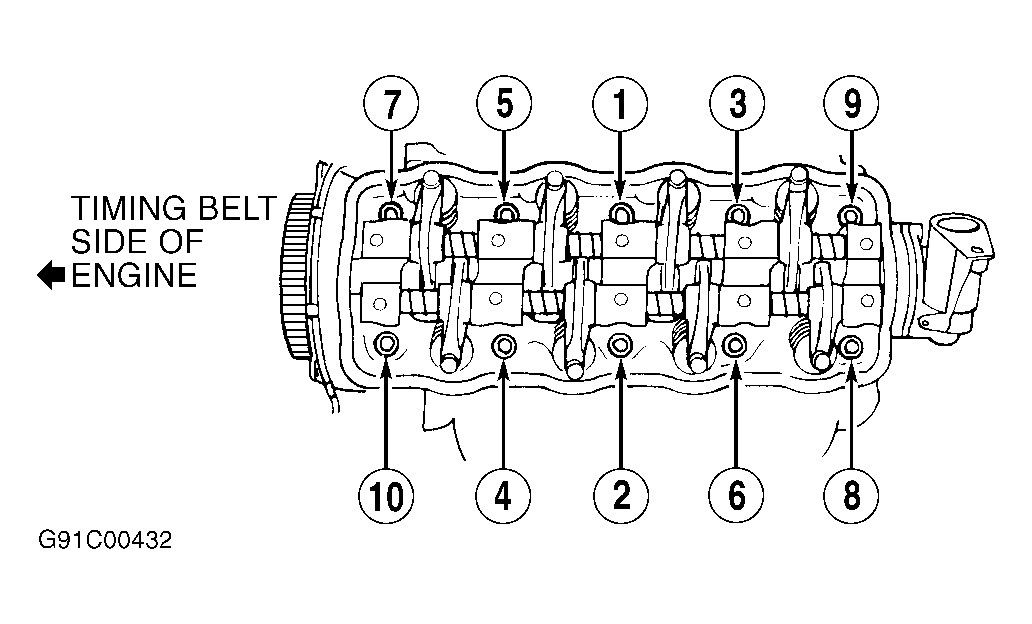

| Cylinder Head Bolt |
54 (73) |
| Engine Mounting Bolts |
40 (54) |
| Engine Skid Plate Bolts |
40 (54) |
| Exhaust Manifold Bolt |
17 (23) |
| Flywheel Bolt |
58 (79) |
| Intake Manifold Bolt |
17 (23) |
| Main Bearing Cap Bolt |
40 (54) |
| Oil Pressure Switch |
10 (14) |
| Power Steering Pump Mounting Bolt |
22 (30) |
| Power Steering Pump Pressure Hose |
43 (60) |
| Spark Plug |
21 (29) |
| Timing Belt Tensioner Bolt |
20 (27) |
| Torque Converter Bolt |
40 (54) |
| Transaxle-To-Cylinder Block Bolt |
62 (84) |
| Valve Adjusting Screw Lock Nut |
13 (18) |
| Wheel Lug Nut |
70 (95) |
| INCH Lbs. (N.m) |
| Distributor Case Bolts |
89 (10) |
| Fan Clutch Nuts |
97 (11) |
| Locking Hub Cover Bolts |
106 (12) |
| Oil Pan Bolt |
97 (11) |
| Oil Pump Cover Bolt |
97 (11) |
| Oil Pump Mounting Bolt |
97 (11) |
| Oil Pump Pick-Up Tube Bolt |
97 (11) |
| Rear Seal Housing Bolt |
97 (11) |
| Rocker Arm Shaft Retaining Screw |
97 (11) |
| Tensioner Stud |
97 (11) |
| Timing Belt Cover Nut & Bolts |
89 (10) |
| Valve Cover Bolt |
44 (5) |
| Water Pump Bolt |
106 (12) |
