Piston Rings

Ensure ring end gap and side clearance are within specification. See PISTONS, PINS & RINGS  table under ENGINE SPECIFICATIONS. Ensure identification marks are toward top of piston. Position piston rings at designated areas. See Fig 1.

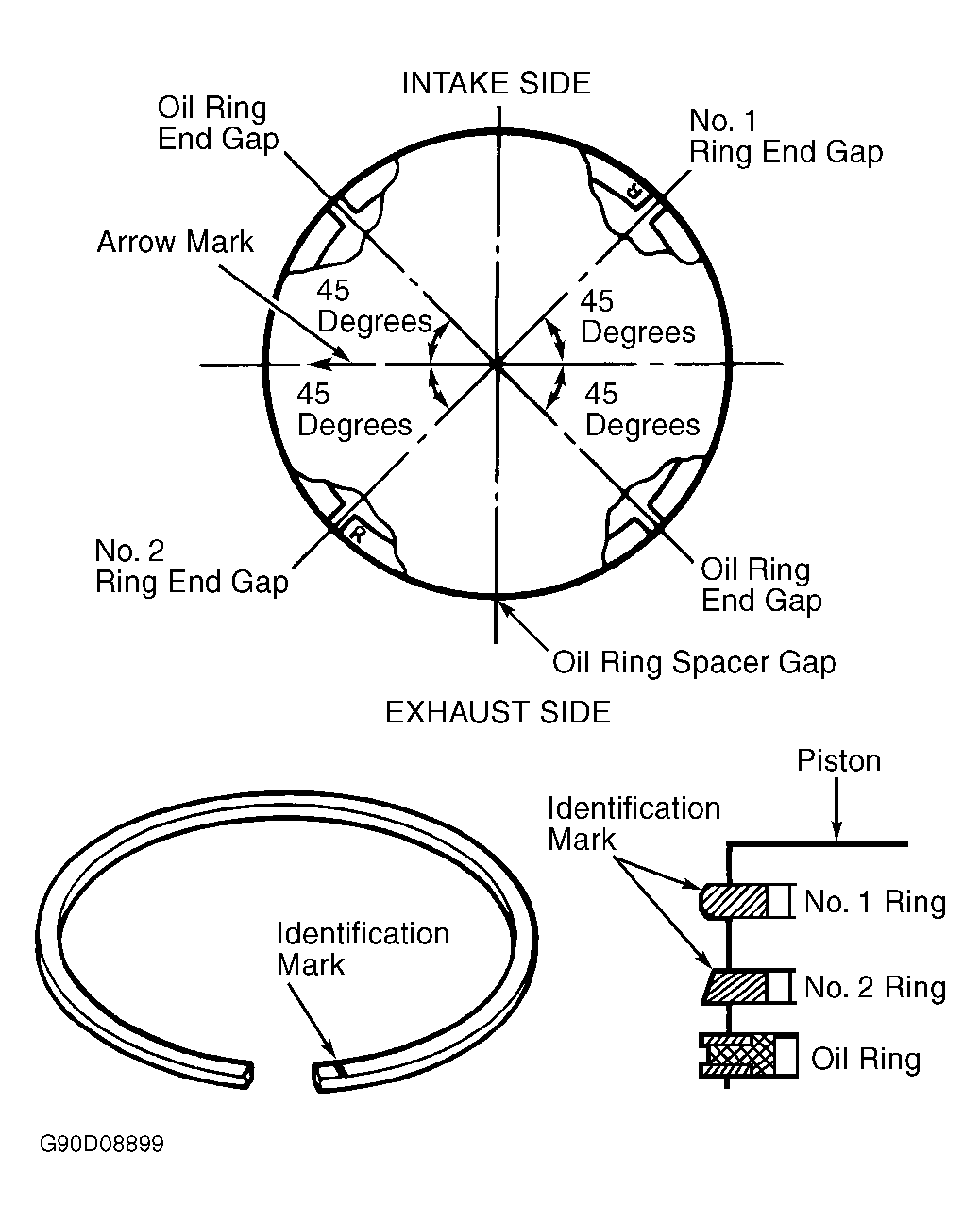

Fig 1: Positioning Piston Rings

Courtesy of GENERAL MOTORS CORP.
