Cylinder Block Specifications

CYLINDER BLOCK

Application In. (mm)
Cylinder Bore
Standard Diameter (1)
No. 1 2.9531-2.9535 (75.009-75.019)
No. 2 2.9528-2.9531 (75.001-75.009)
Bore Limit 2.9586 (75.15)
Maximum Taper .0039 (.099)
Maximum Out-Of-Round .0039 (.099)
Maximum Deck Warpage .0024 (.060)

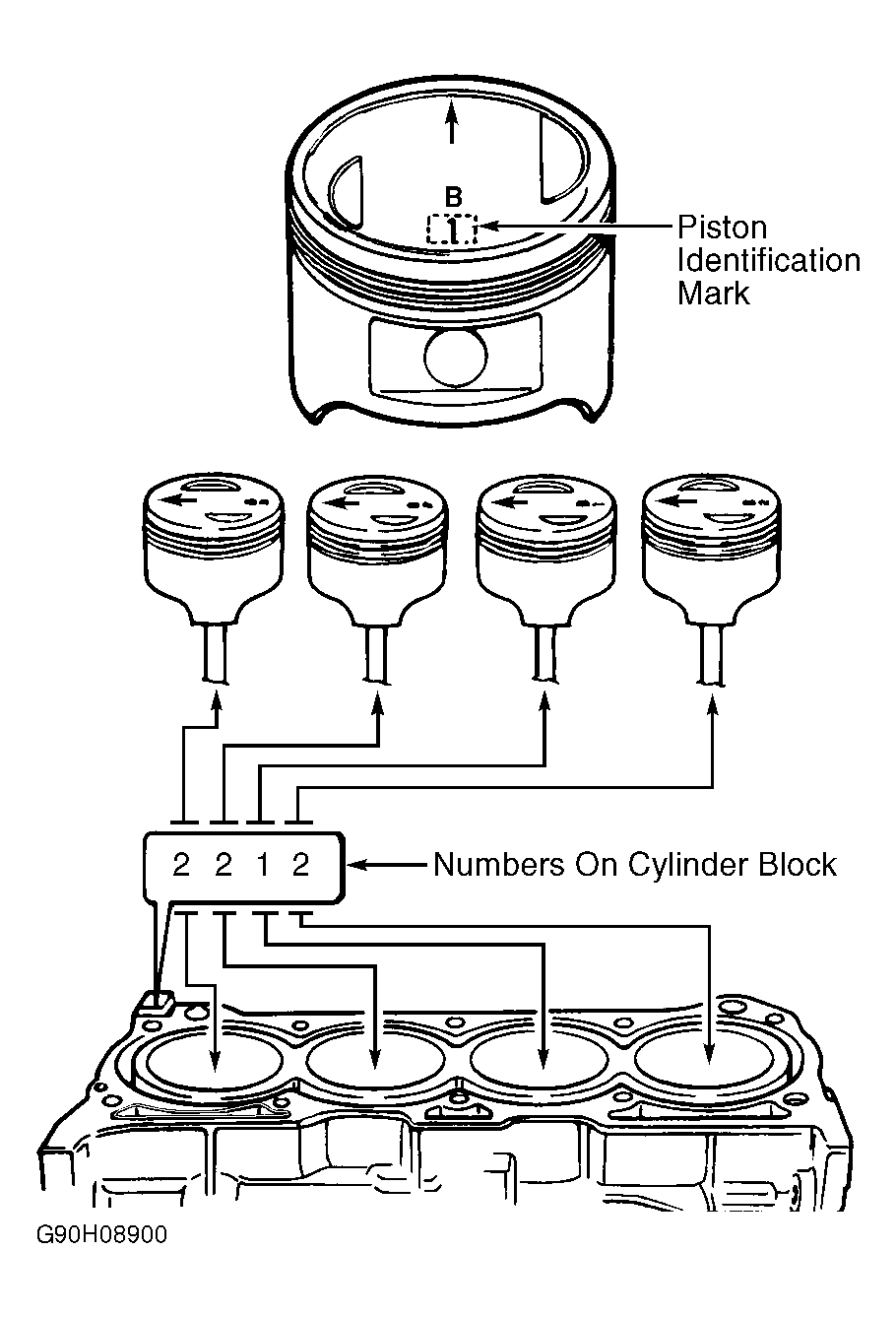

(1) Original cylinder bore diameter is determined by number on deck surface of cylinder block. See Figure.
