Master Cylinder: Disassembly

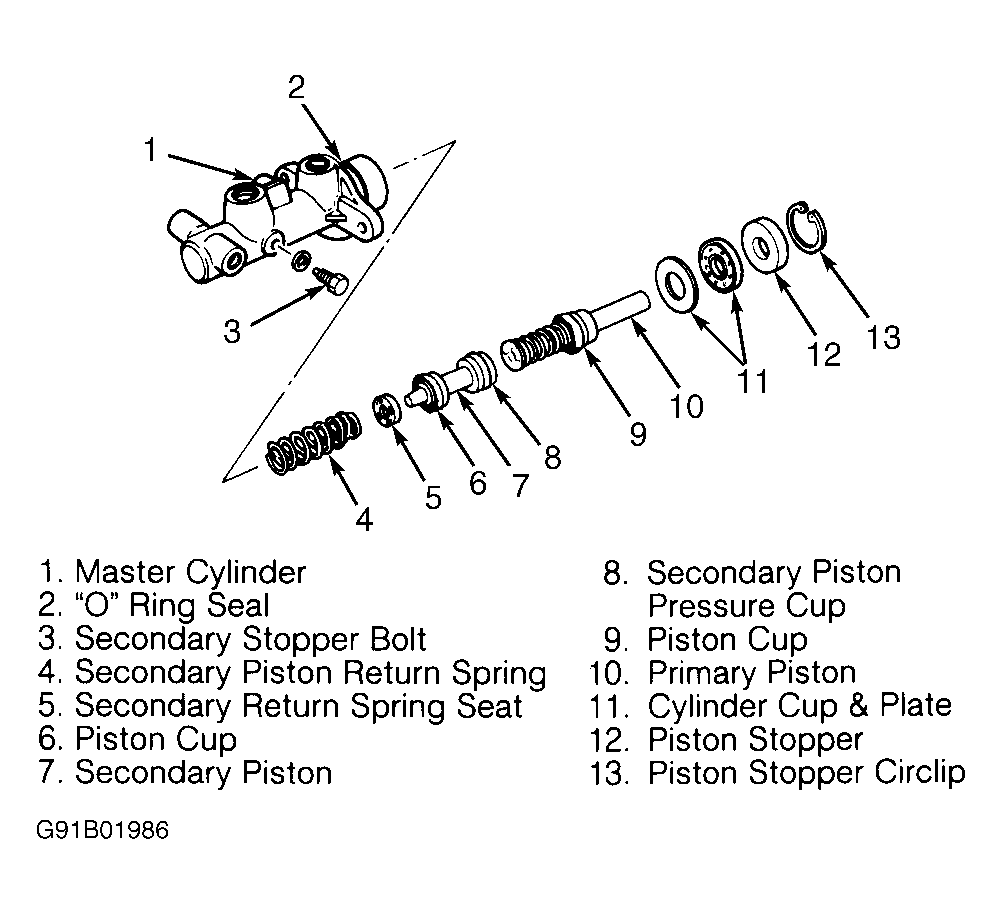

Using a drift, remove brake fluid reservoir roll pin and remove reservoir. Remove piston stopper circlip and primary piston from end of master cylinder. See Figure . Remove secondary piston by removing secondary stopper bolt from bottom of master cylinder and applying low air pressure in stopper bolt hole.
