Disabling & Activating SRS

WARNING: Wait about 2 minutes after disabling SRS before servicing. System maintains SRS voltage for about 2 minutes. Servicing SRS before 2 minutes may cause accidental air bag deployment and possible personal injury.

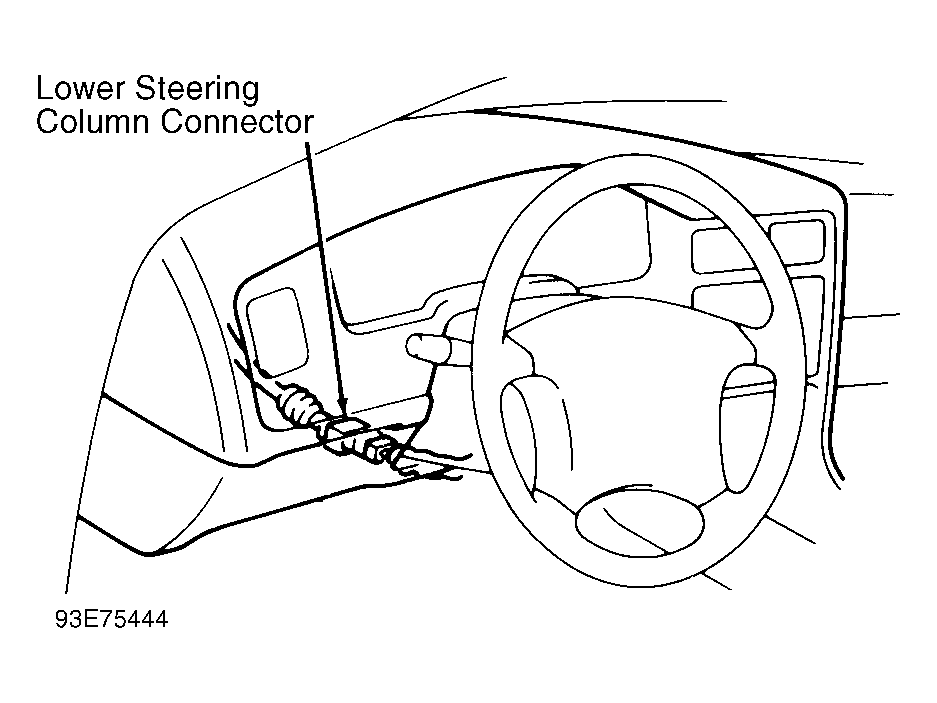

Fig 1: Locating SRS 2-Pin Lower Steering Column Connector
G93E75444Courtesy of GENERAL MOTORS CORP.

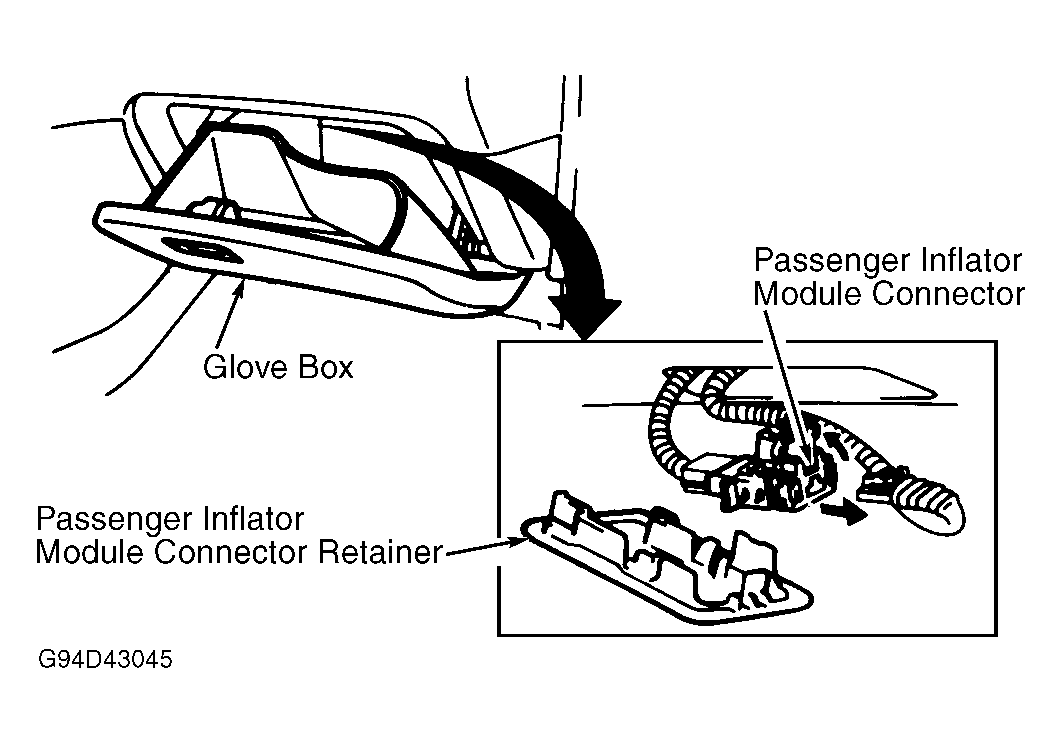

Fig 2: Locating Passenger Side SRS 2-Pin Connector
G94D43045Courtesy of GENERAL MOTORS CORP.
