Diagnostic Aids

Ensure MIL cancel switch is reset after 50,000, 80,000 and 100,000 maintenance service has been completed for MIL to go out.

Fig 1: CHART A-2 - Schematic (TBI Federal) Won't Flash Any Codes, Or (MIL) On Steady

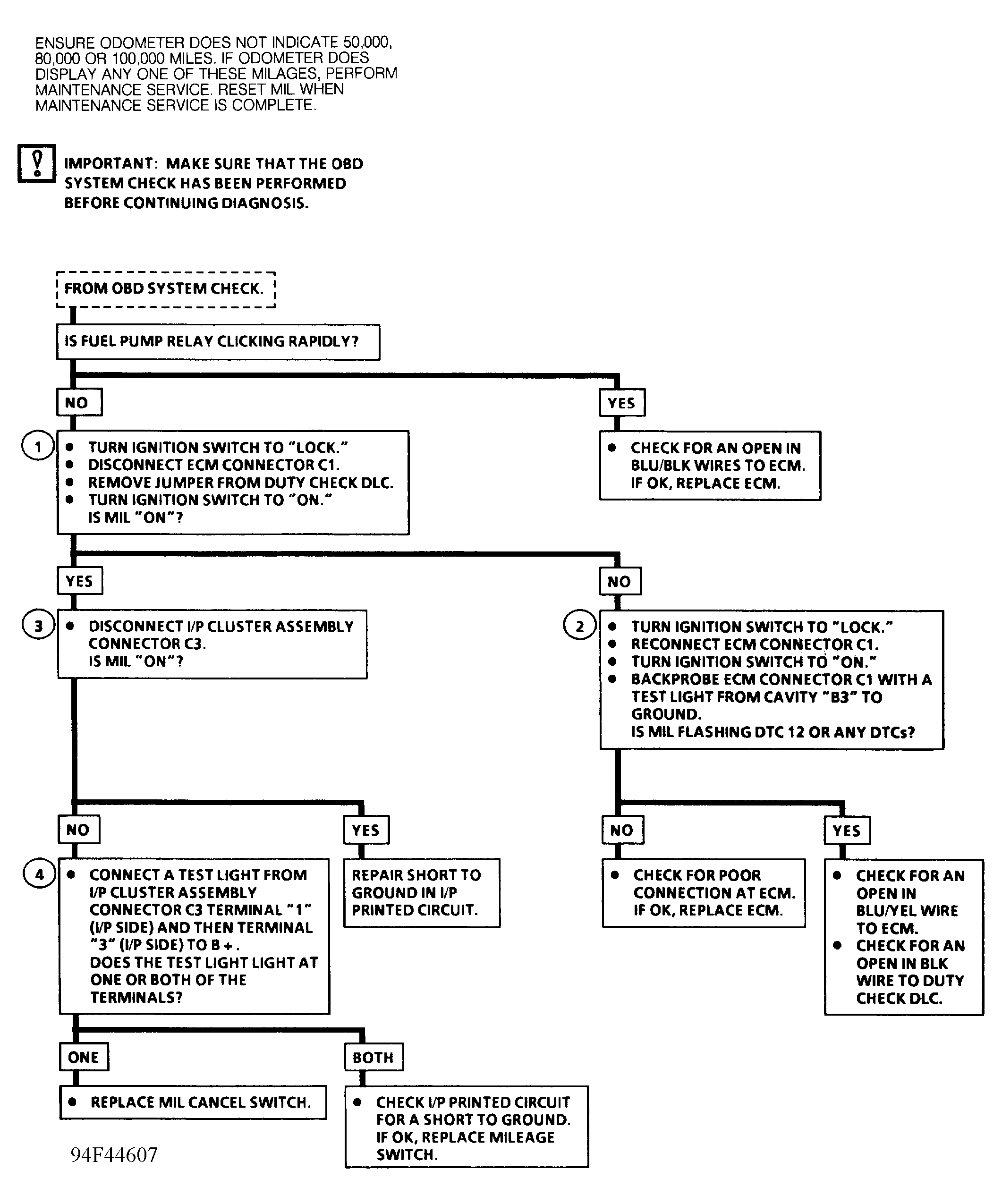

Fig 2: CHART A-2 - Flow Chart (TBI Federal) Won't Flash Any Codes, Or (MIL) On Steady
