Diagnostic Aids

Check connectors for contamination, corrosion or bent terminals.

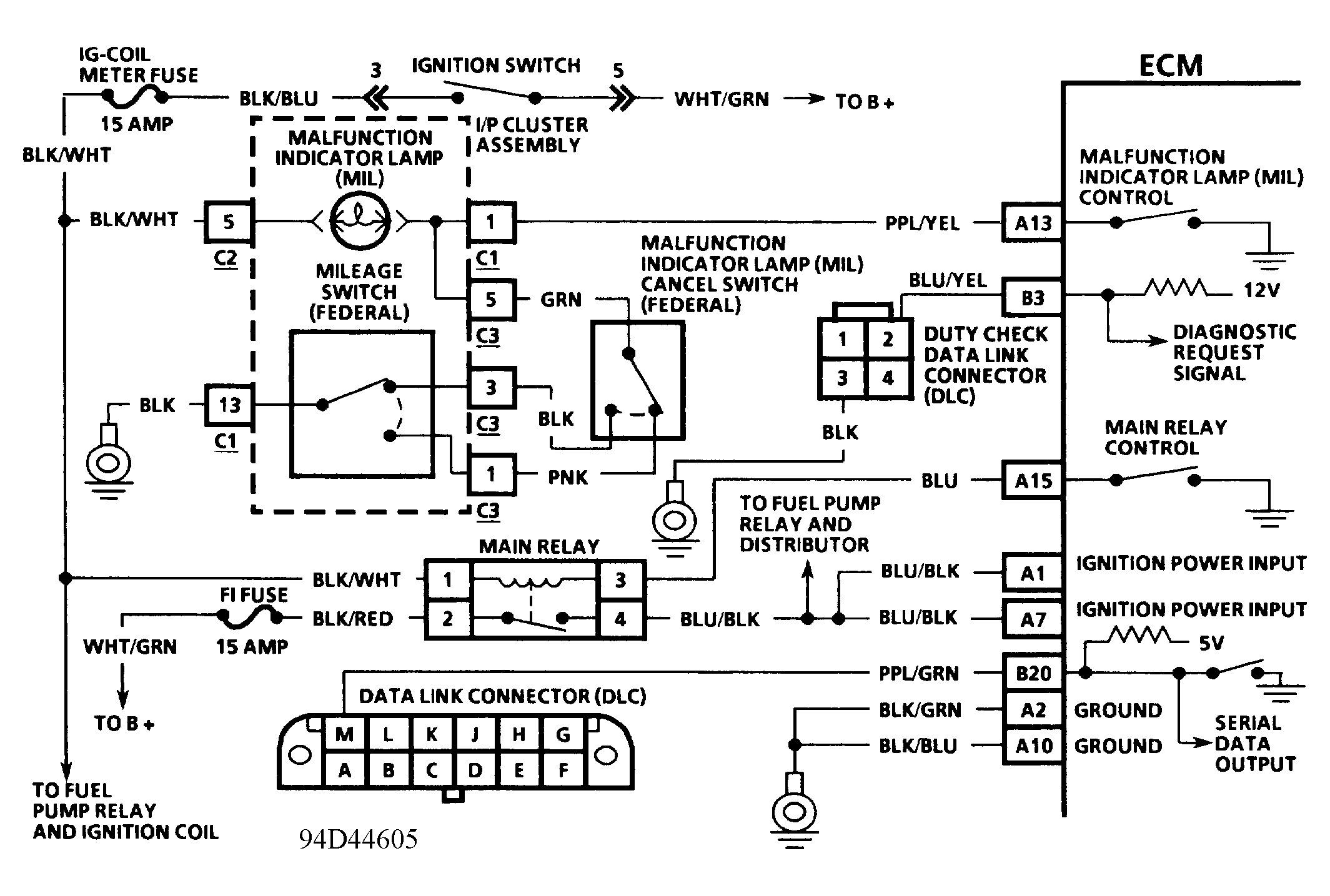

Fig 1: CHART A-1 - Schematic (TBI Federal) NO MALFUNCTION INDICATOR LIGHT (MIL)
G94D44605

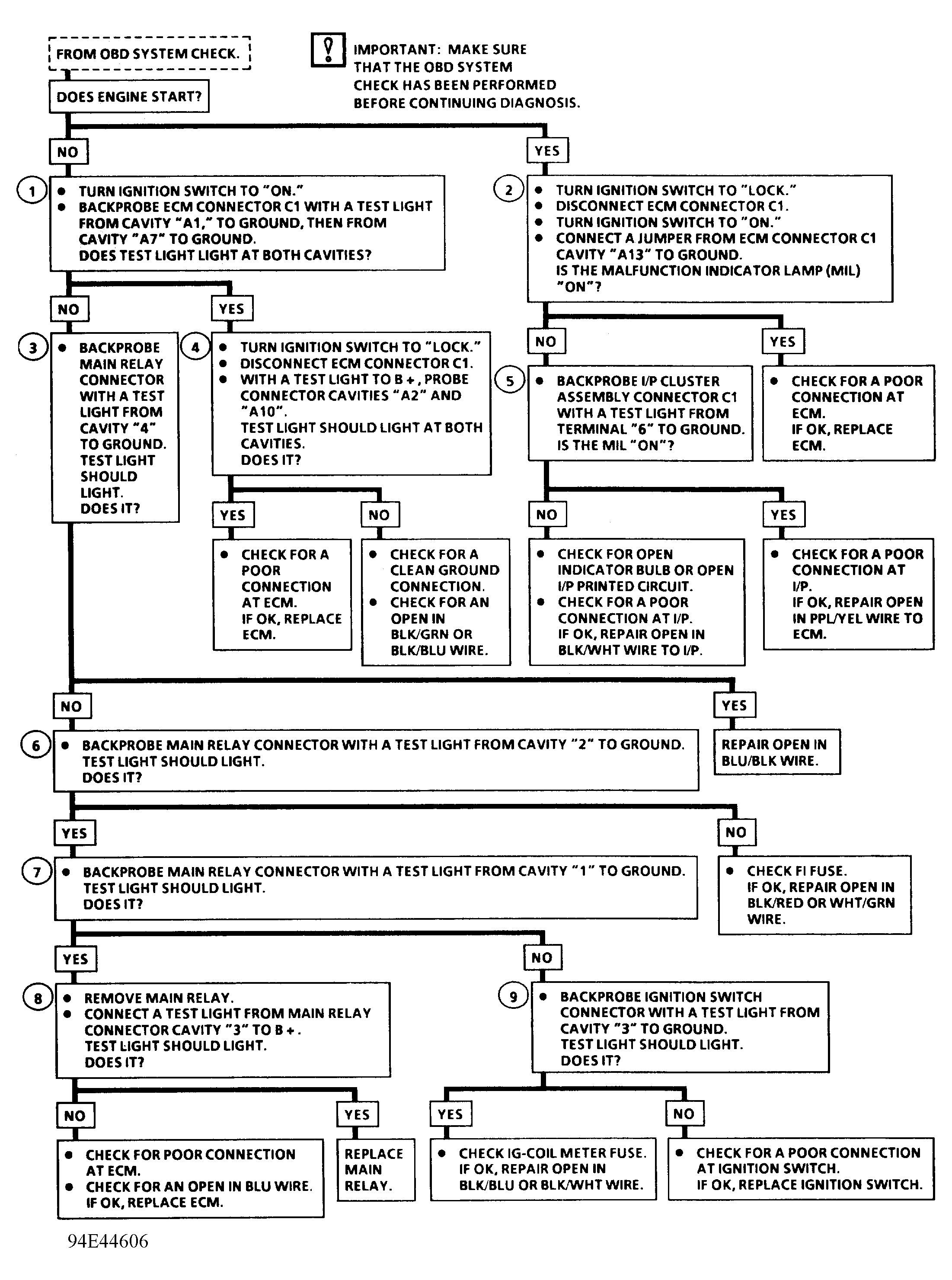

Fig 2: CHART A-1 - Flow Chart (TBI Federal) No Malfunction Indicator Light (MIL)
G94E44606
